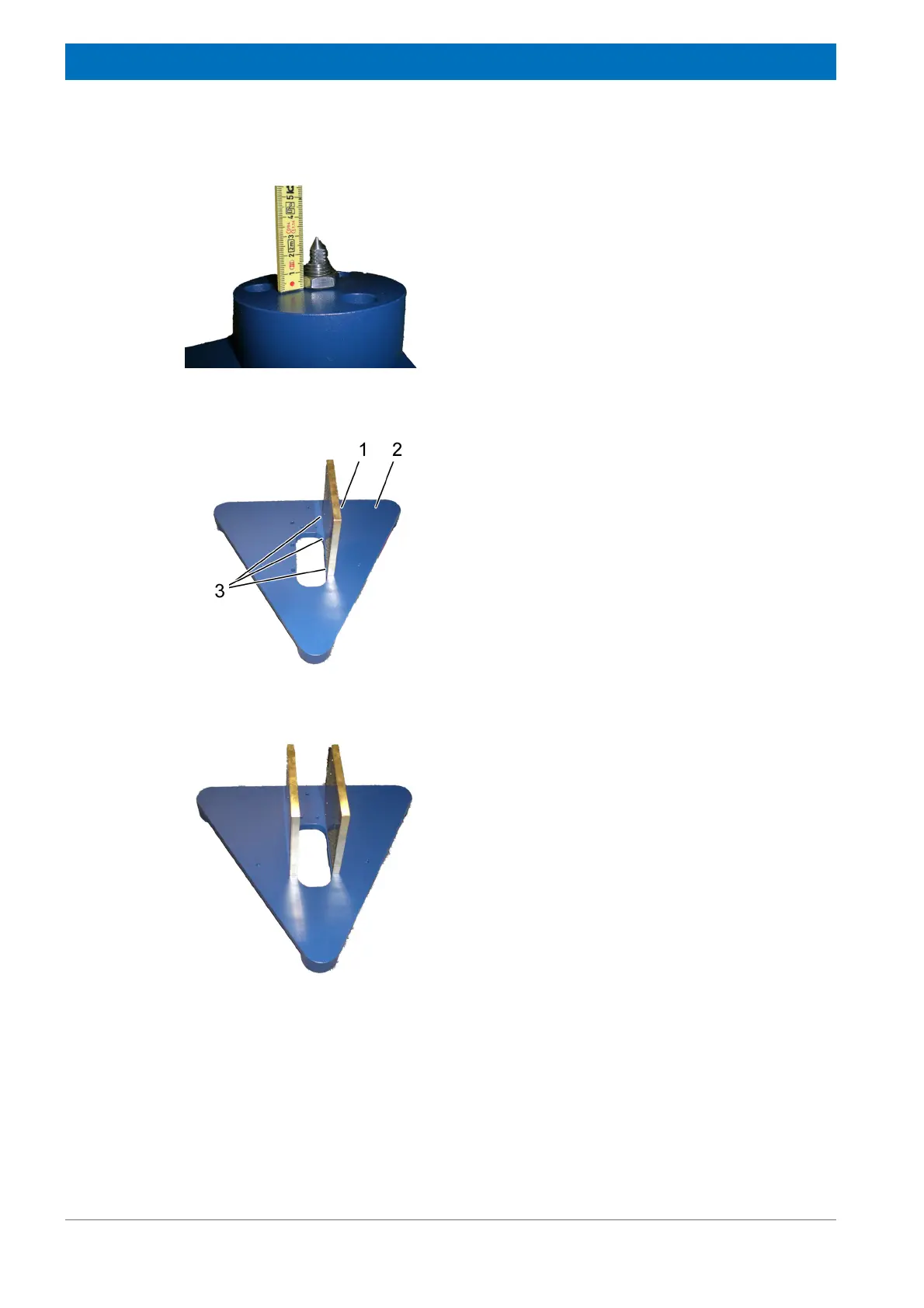

Figure 4.42: Mounting the Rotary Valve Column - step 4
6. Adjust the spikes to a height of 30 mm.
7. Fix the spikes with counter nuts.
Figure 4.43: Mounting the Rotary Valve Column - step 5
8. Mount the stand plate (1) from the bottom
side with three M 12 x 35 screws with
washers (3) from the bottom side. Do not
tighten these screws yet.
Figure 4.44: Mounting the Rotary Valve Column - step 6
9. Continue with the same procedure for the
second stand plate. Do not tighten these
screws yet.
