Assembling

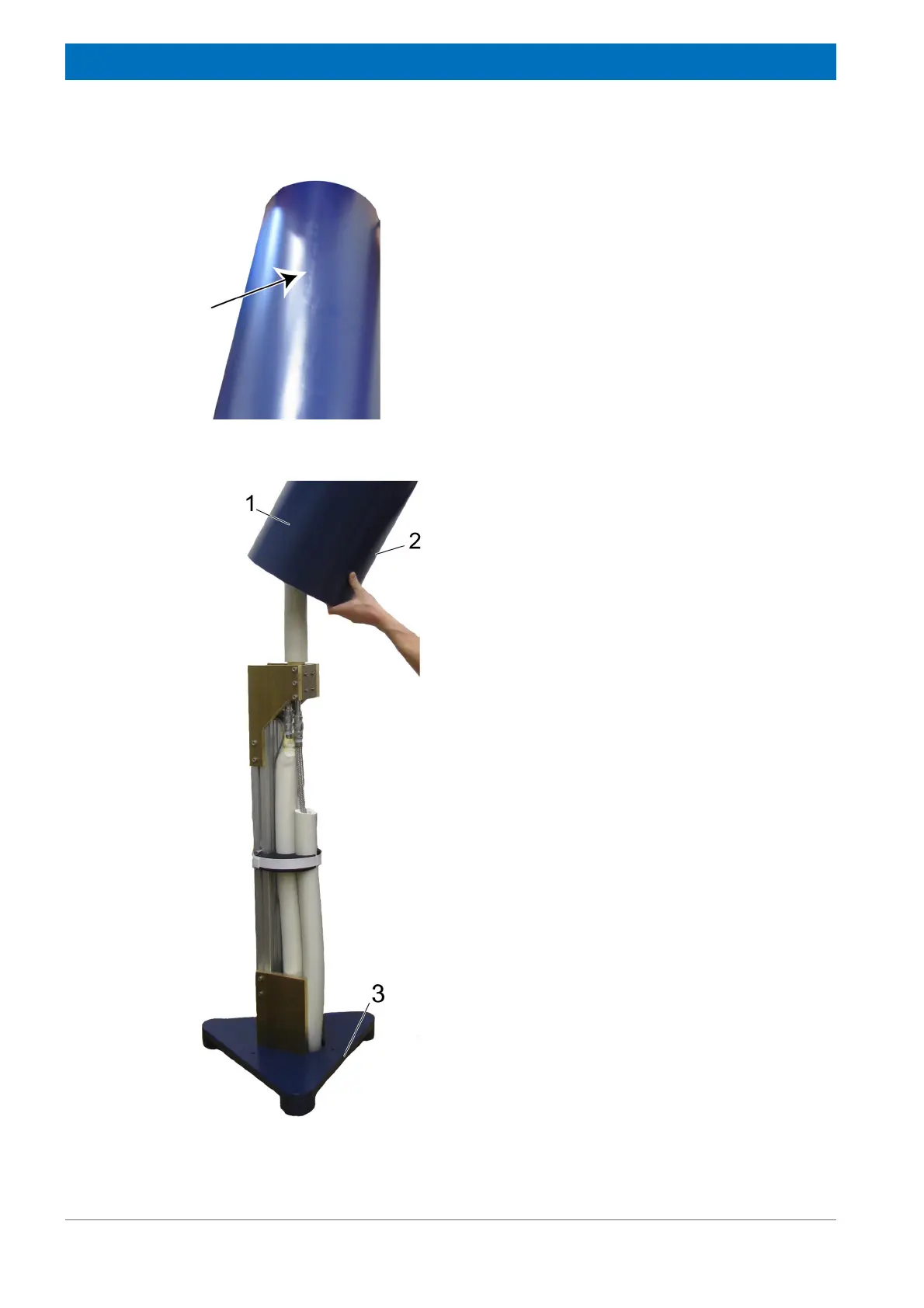

Figure 4.60: Mounting the Rotary Valve and Flex Lines - step 9
20. Consider the weld of the noise protection
cover as shown in the figure.
Figure 4.61: Mounting the Rotary Valve and Flex Lines - step 10
21. Put the noise protection cover (1) over the
rotary valve. The weld in the noise protec-
tion cover (2) should be on the front side of
the rotary valve column (3) facing towards
the cryostat.
22. Fix the noise protection cover with three
special nuts M 6 from the bottom side to the
base plate (3).
