btsr MATRIX CUBE - Creel Assembly

Installation and Connections
MATRIX CUBE - 1 -
1.1 Creel Assembly

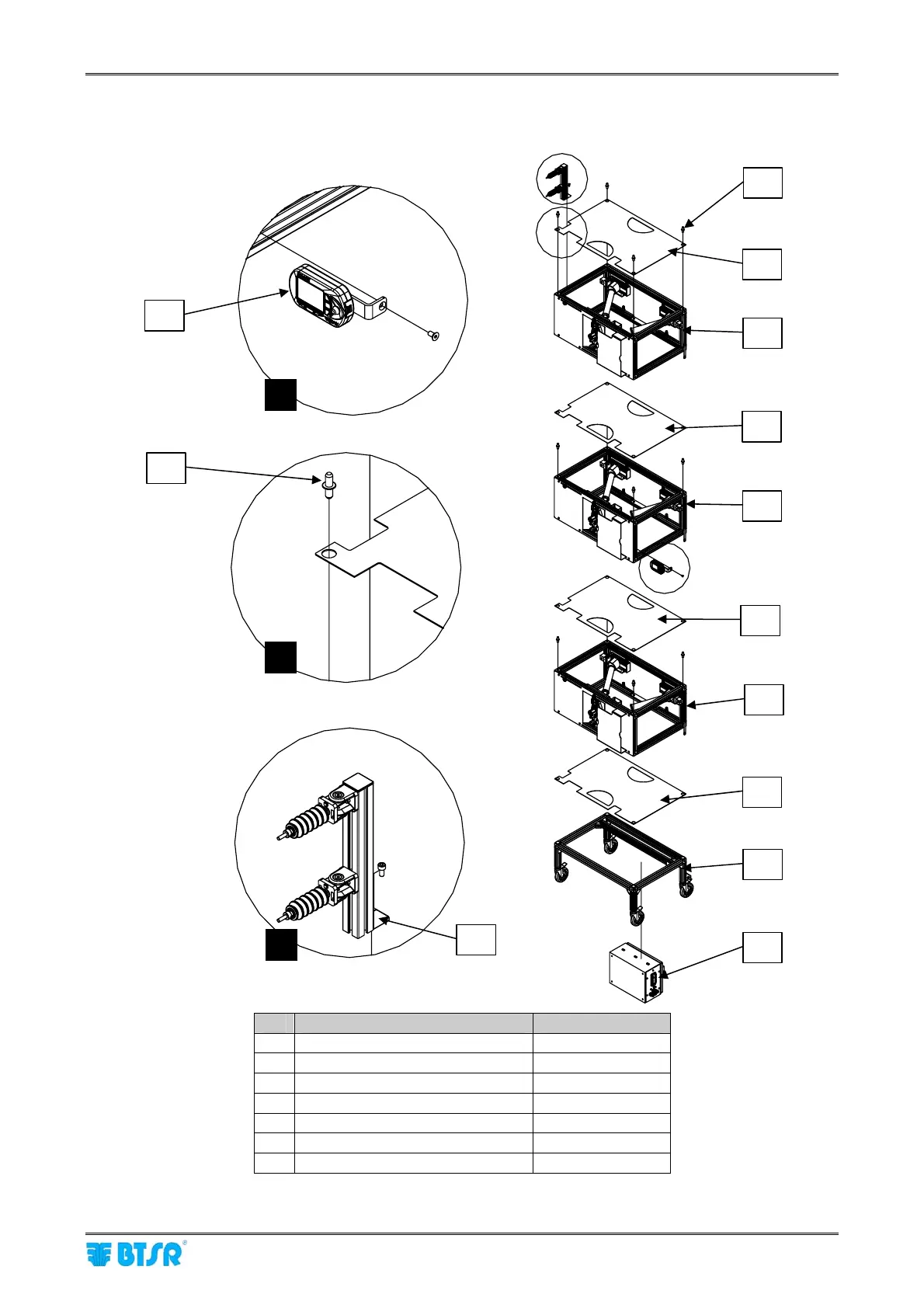

The following figure shows the details for a correct assembly of the creel modules.
No. Description Code
1 MATRIX CUBE creel module MCC/MCC/001
2 Separating panel ST.4.048
3 Centering pin ST.2.374
4 Bed frame with casters MCC/BCS/001
5 MASTER CUBE electrical box MCC/MCB/001
6 SMART MATRIX CUBE terminal MCC/SMC/001
7 MATRIX CUBE wheel assembly MCC/MCW7001
1
2
2
2
2
1
1
3
4
5
6
7
3
A
B
C
A
B
C
