Installation and Connections
MATRIX CUBE - 10 -

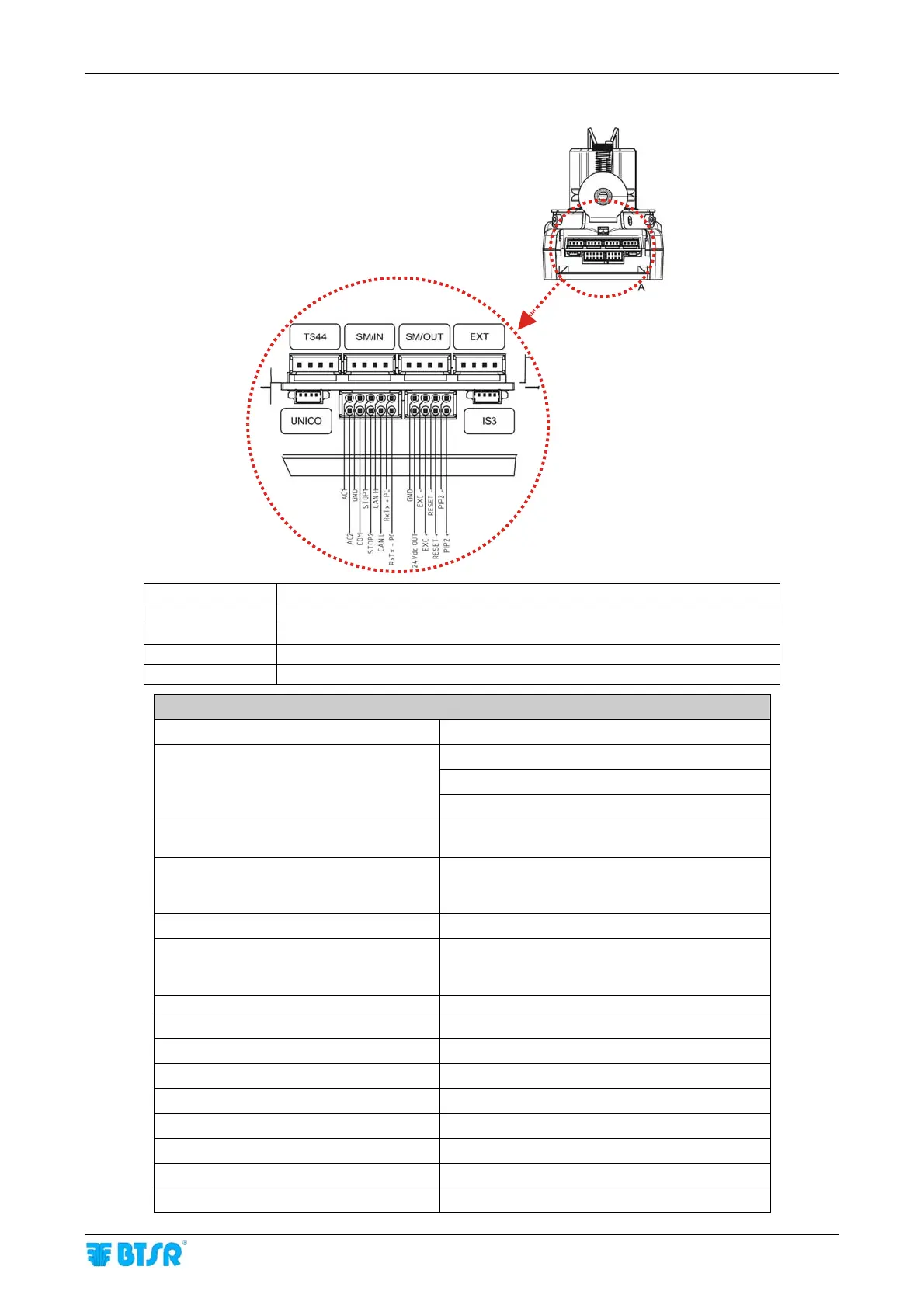

1.8 DIAPER FEEDER Interface
TS44 Connector for TS44 tension sensor connection
SM/IN - SM/OUT Connectors for DIAPER FEEDER devices daisy chain connection
EXT Connector available for future expansions
UNICO Connector for intelligent accessory connection
IS3.. Connector for spool change sensor connection
DIAPER FEEDER Device Technical Characteristics
Power supply voltage 24 VDC ± 10% or 24 VAC ± 20%
0.2 A (during normal operation)
1 A (under stress)
Maximum absorption
3 A (at start-up)
STOP Outputs: relay contacts (NO)
0.3 A 125 VAC
1 A 30 VDC
Opto-insulated Inputs
0-24 VDC
VIL Max 1.2 VDC
VIH Min 5 VDC
Max. voltage (Inputs/Output) 30 VDC
Programmable yarn tension
0.5 ÷ 100.0 gr. (resolution 0.1 gr.) or
5 ÷ 1,000 gr. (resolution 1 gr.)
Depending on the type of TS44 sensor used
Programmable alarms 0.1 ÷ 10 sec.
Integrated keypad 3 push-buttons + STOP red LED
Signaling With LCD graphic display
Dimensions 290 x 86 x 94 mm
Operating temperature range 10° - 60 °C
Storage temperature -25° - +85° C
Tension range 0 / full scale
Useful tension range 0% - 95% full scale
Max applicable tension 10 times the full scale value
