btsr MATRIX CUBE - Connection to MASTER CUBE Box; TS55 Sensor Connection

Installation and Connections
MATRIX CUBE - 5 -

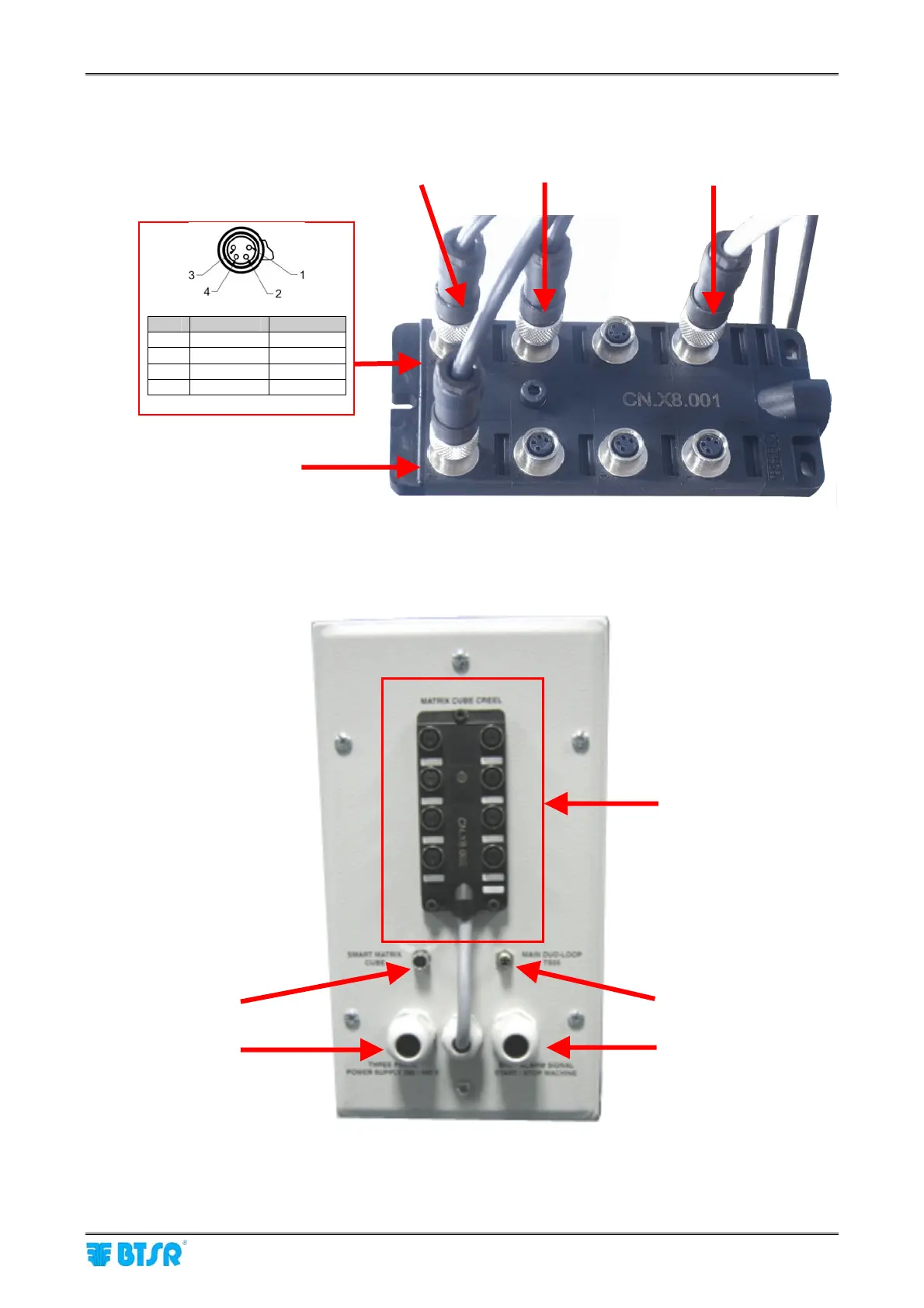

1.4 TS55 Sensor Connection
1.5 Connection to MASTER CUBE Box
Connection of
MATRIX CUBE
creel modules
TS55 connection (A)
Start / Stop / Alarm,
etc signal cable
380/480 Vac power
cable
SMART MATRIX
CUBE connection
From MASTER CUBE Box (A)
TS55 Sensor
TS55
Sensor
PIN COLOR SIGNAL
1 Brown Vdc
2 White Rx Tx +
3 Yellow GND+sch
4 Green Rx Tx -
TS55 Sensor
TS55 CONNECTOR
FRONT VIEW
