Installation and Connections
MATRIX CUBE - 8 -

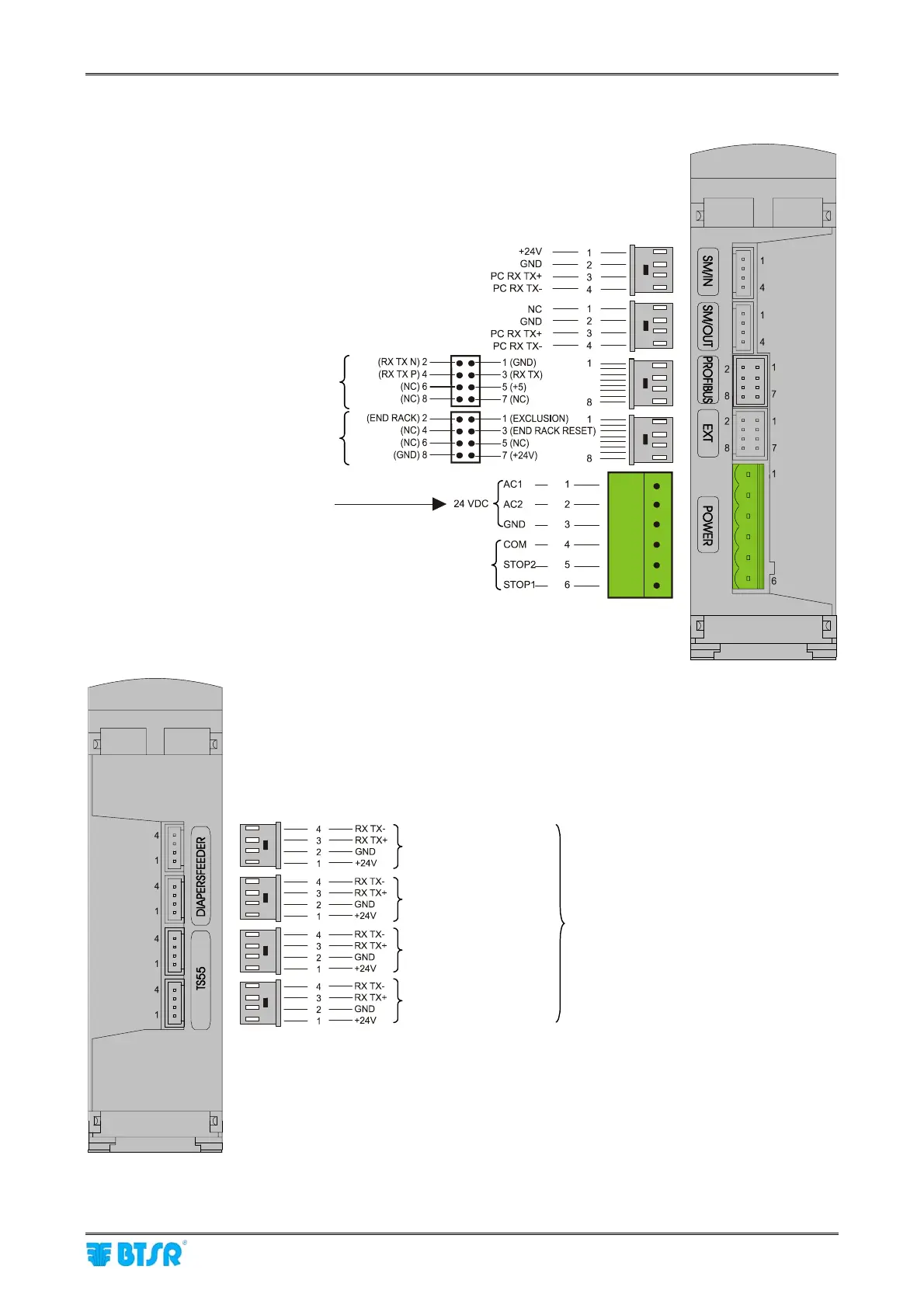

1.7 SM-DIN/DUOLOOP Interface
Machine Interface
(INPUT)
Machine Interface
(OUTPUT)
DIAPER FEEDER
chain
DIAPER FEEDER
chain
TS55 chain
TS55 chain
Max 10 DIAPER FEEDER
devices and 10 TS55 sensors
PROFIBUS Interface
PSU 20AS
