Installation and Connections
MATRIX CUBE - 9 -

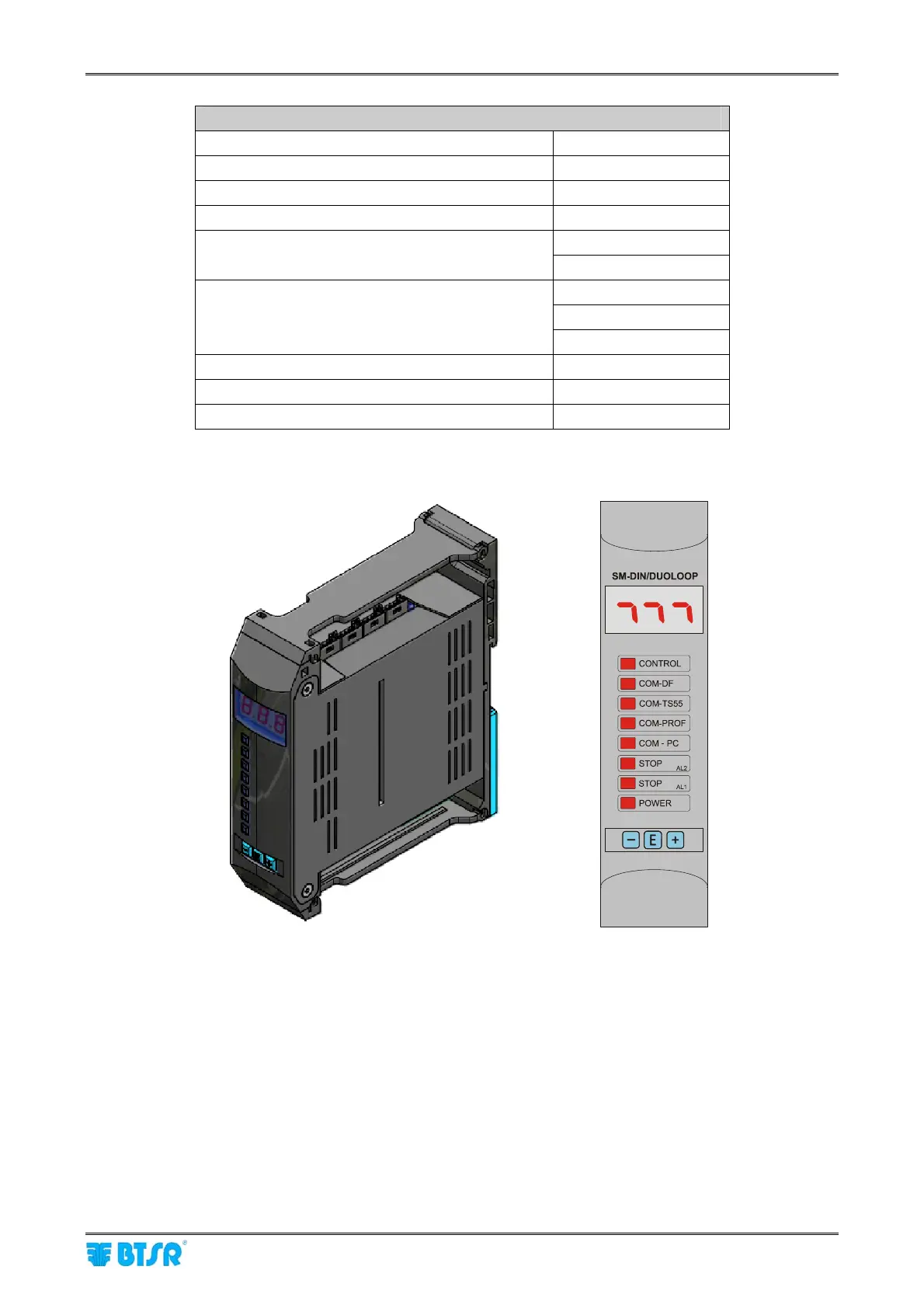

SM-DIN/DUOLOOP Control Unit Technical Characteristics
Power supply voltage 24 VDC
Maximum absorption 200 mA Max
Protection fuse (Board protection) 5 A
Protection fuse (sensors supply) 3 A
0.3 A 125 VAC
STOP output (normally open contacts)
1 A 30 VDC
0 – 24 VDC
VIL Max 1.2 VDC
Inputs
VIH Min 5 VDC
Operating temperature range +10° / +60° C
Storage temperature -25° / +85° C
Dimensions 138.5x124x35 mm
