Installation and Connections
MATRIX CUBE - 21 -

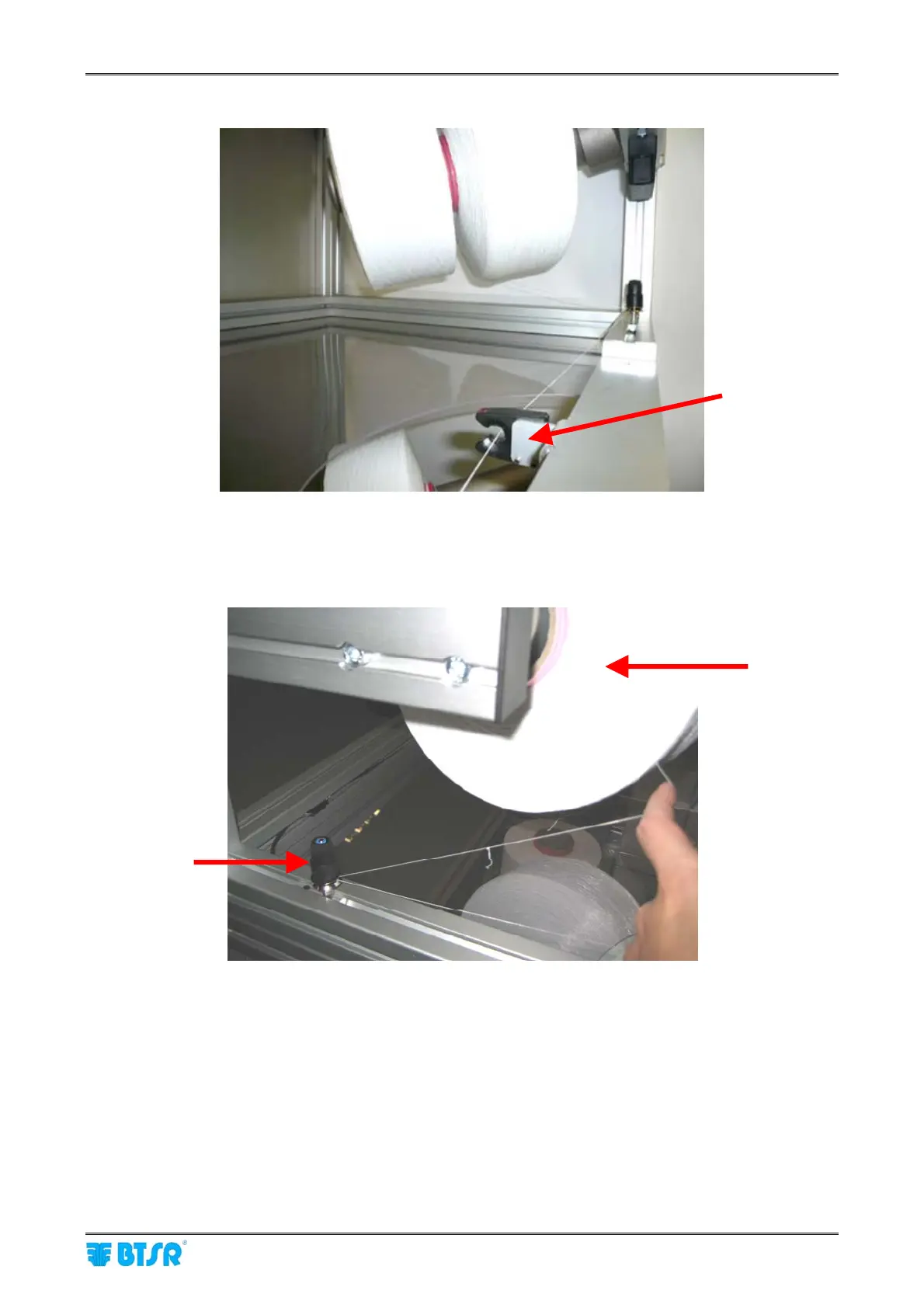

8) Insert the yarn into the IS3F/HTP sensor
9) Reset the sensor touching with your finger the red blinking led; the red led immediately stop blinking.
10) Insert the yarn into the yarn braking device (F3) and connect it with the tail of spool 4.
IS3F/HTP sensor
Spool 4
Yarn braking
device (F3)
