SECTION 2 - OPERATION
2-42
TRACTOR LIGHTING
Rotary Light Switch
The rotary light switch is a five-position switch.
Rotating the switch clockwise will activate the
tractor lighting as follows:
1Off
2 Hazard lights
3 Roadway use
4 Field use
5 Field use
NOTE: The rotary light switch is wired live at
all times and will work with the ignition key
switch in any position.

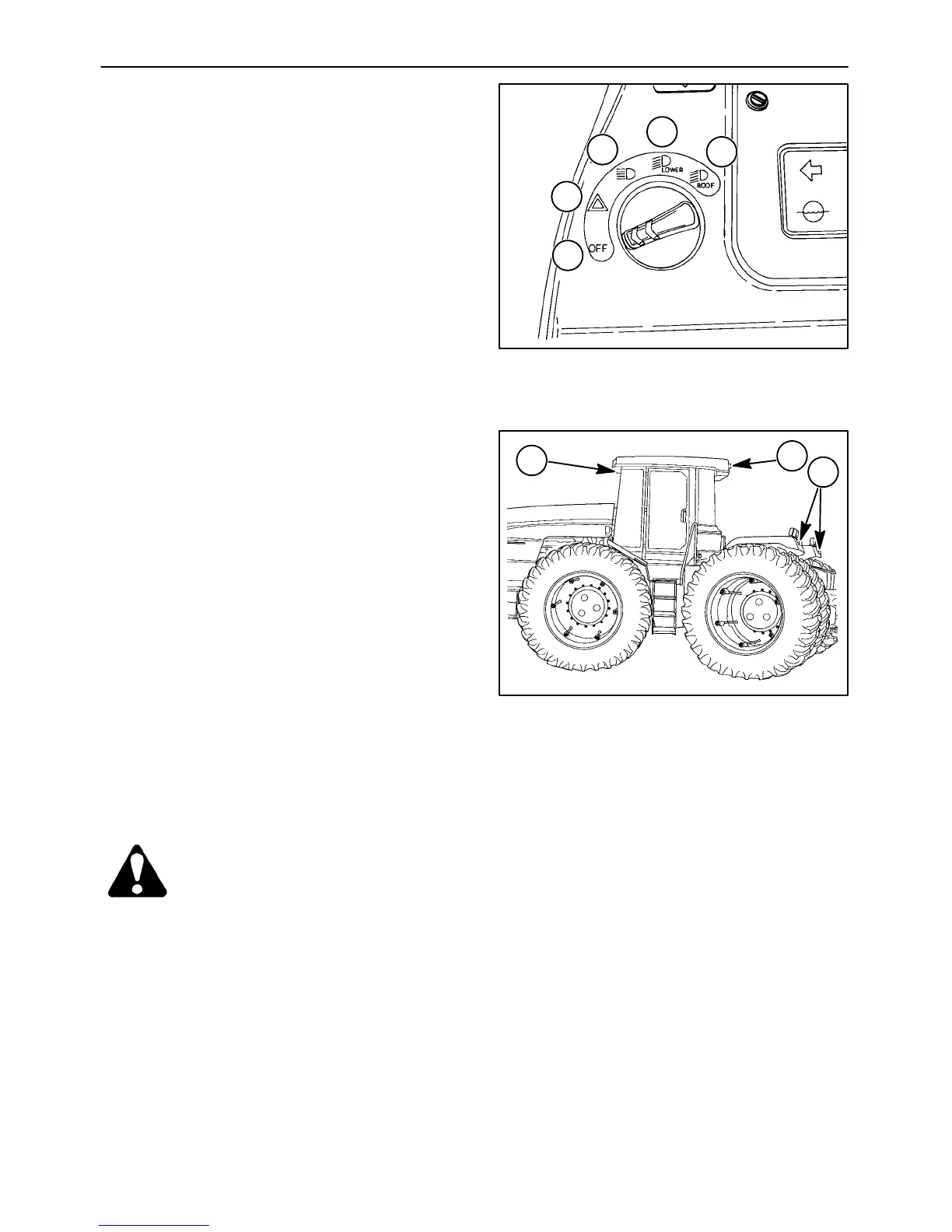

Figure 2-58
1
2
3
4
5
Position One - “OFF” - No lights will be lit.
Position Two - “Hazard Lights” - The two front
roof-mounted amber lights, 1, and the two rear
roof-mounted amber lights, 2, will flash (as will
the wide transport marker lights). The red
taillights, 3, on each of the rear fenders will be lit.
NOTE: When the rotary light switch is in
position two, and the multifunction switch is
placed in the right or left turn signal position,
the front and rear roof-mounted amber
warning lights will stop flashing, except for
the front and rear roof-mounted warning
lights on the side to which the turn is being
made. The opposite front and rear mounted
warning lights will remain lit, but will not flash
(as will the extremity lights).
When the rotary light switch is in position
two, depressing the brake pedal will cause
the taillights to get brighter.
WARNING: FOR YOUR PROTECTION, USE
THE HAZARD WARNING LIGHTS WHEN
TRAVELING ON PUBLIC ROADS UNLESS
PROHIBITED BY LAW
