SECTION 3 - LUBRICATION AND MAINTENANCE
3-88
AS REQUIRED

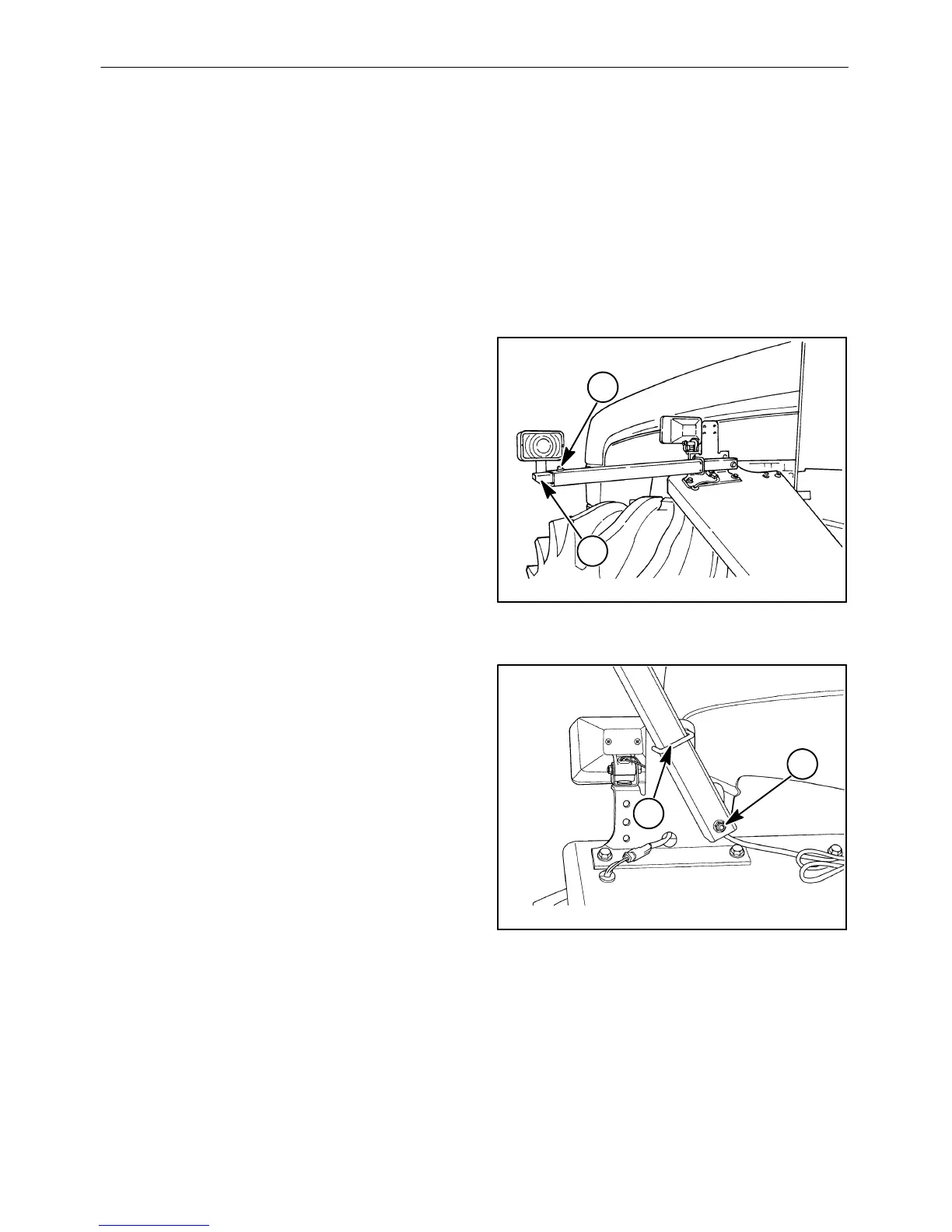

Wide Transport Marker Lights
Wide transport marker lights are required with
some dual and triple wheel configurations.
The lights are adjustable to the width of the
tractor, increasing tractor visibility to oncoming
traffic. In some areas this is required for over
width vehicles. See your local authorities to
confirm compliance with local regulations.
Operating Position
The tube has three settings, depending on the
width of the tires used. It is recommended that
the tube be adjusted so the outside edge does
not extend beyond the tire edge. Remove the
bolt, 1, and slide the tube, 2, to one of the three
positions. Reinstall the bolt and tighten.
Figure 3-148
1
2
Single Wheel Transport Position
When single wheels are used, the wide transport
marker lights should be moved to the up position.
Loosen or remove bolt, 1, and remove the U-bolt,
2.
Swing the arm assembly up approximately 70°
-90° depending on model. Reinsert U-bolt, 2, and
tighten bolt, 1.
NOTE: Tractors with Tier III compliant
engines do not have an up position. Lights
should be placed in the inner position for
single tire configuration.
Figure 3-149
2
1
