SECTION 3 - LUBRICATION AND MAINTENANCE
3-26
EVERY 10 HOURS OR DAILY
OPERATION 16
Lubricate the Rear Steering Cylinder Pins
Lubricate the bottom two grease fittings, 1,
remotely mounted on the left rear frame, until
grease flows from around the pin seals. This will
purge any dirt accumulated in the pivot pin area.
Use Moly based EP high temperature grease
available from your Buhler Versatile dealer.

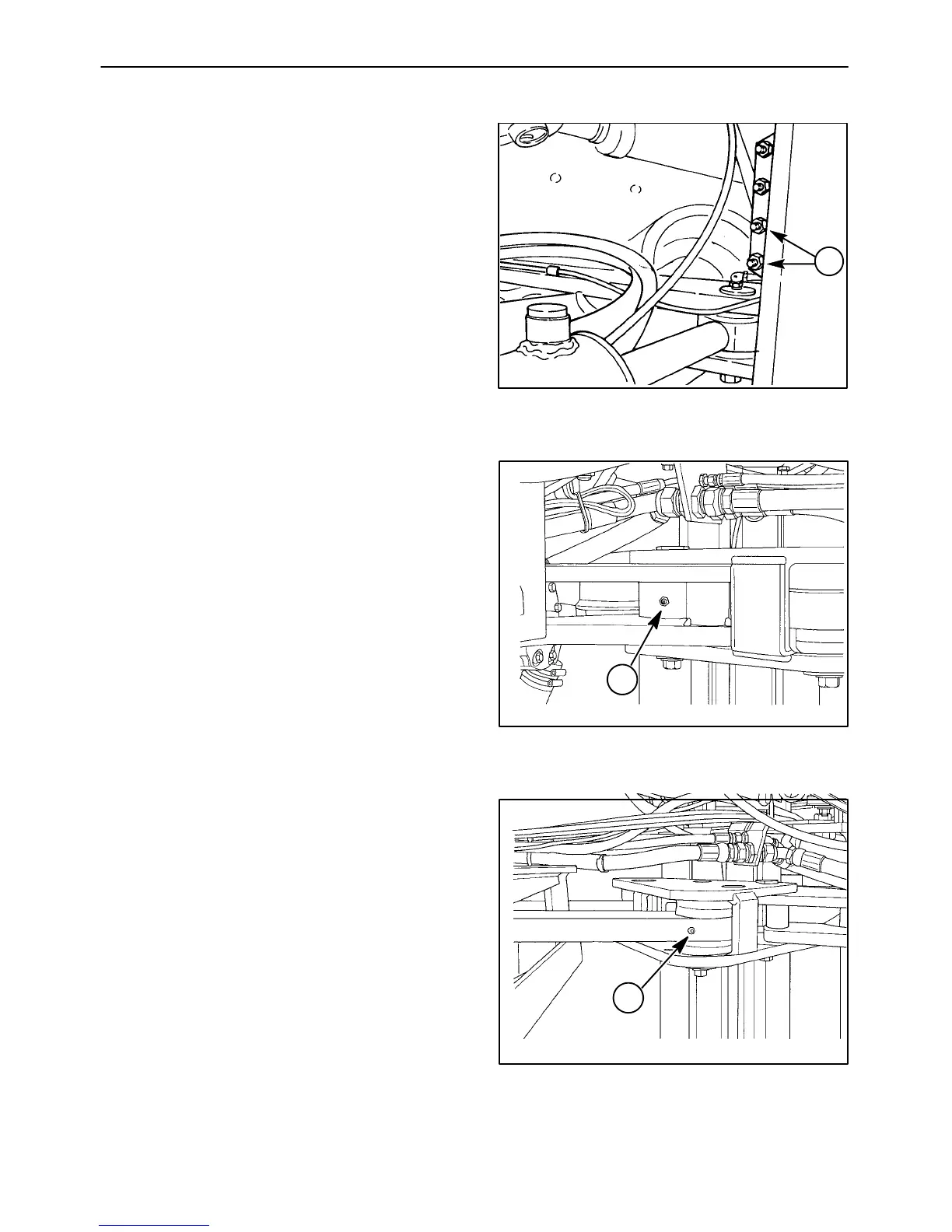

Figure 3-31
1
OPERATION 17
Lubricate the Upper Articulation Pin
Lubricate the grease fitting, 1, until grease flows
from between the frame pieces. This will purge
any dirt accumulated in the pivot pin area.
Start the unit and articulate from side to side to
work the grease into the joint.
Use Moly based EP high temperature grease
available from your Buhler Versatile dealer.
Figure 3-32
1
OPERATION 18
Lubricate the Front Drag Link Pins
Lubricate the grease fittings (one on each side),
1, until grease flows from around the pin seals.
This will purge any dirt accumulated in the pivot
pin area.
Use Moly based EP high temperature grease
available from your Buhler Versatile dealer.
Figure 3-33
1
