SECTION 2 - OPERATION
2-18

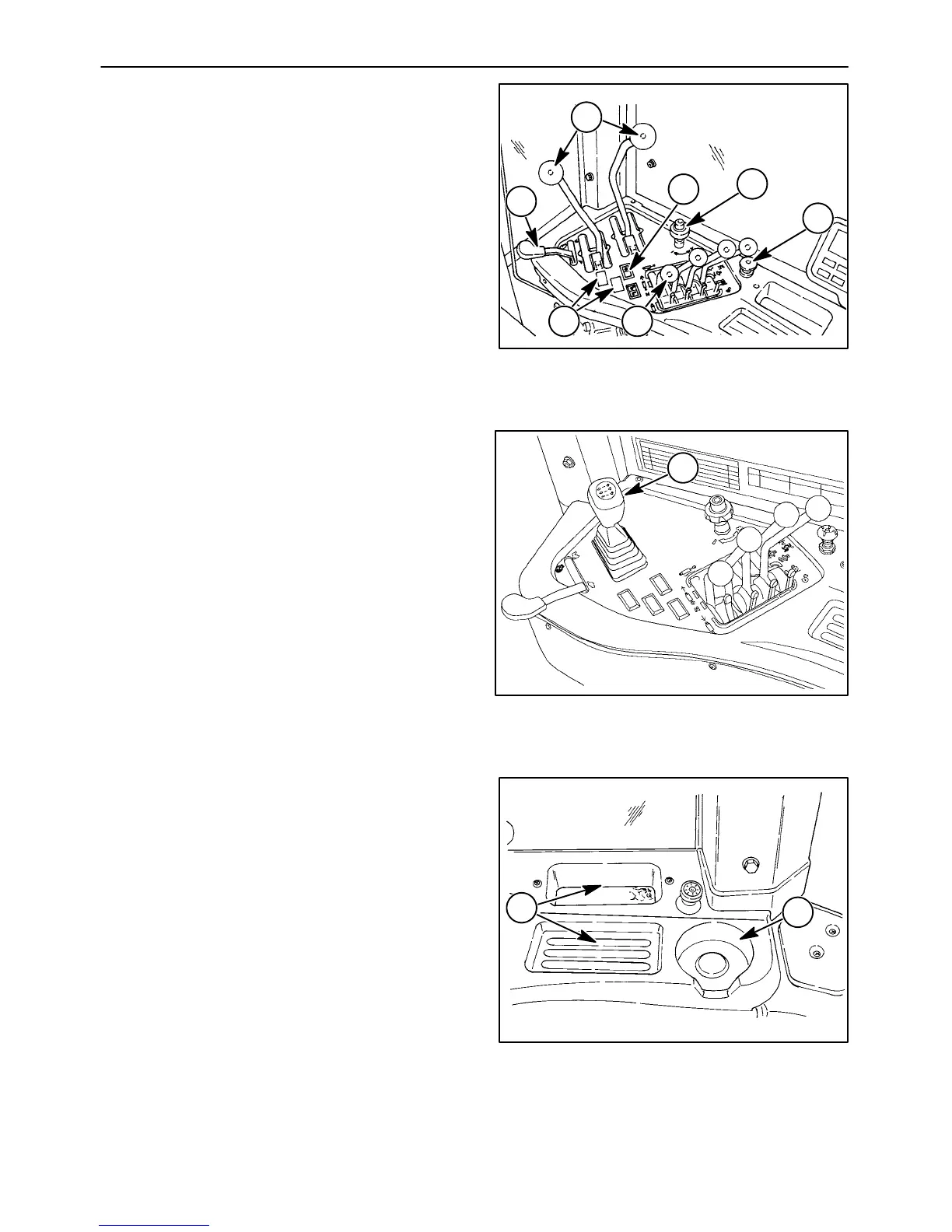

RIGHT CONSOLE
On the right side of the cab is a console which
contains controls for operation of the throttle, 1;
transmission (Quad Shift III shown), 2; PTO, 3, (if
equipped); differential lock, 4, (if equipped);
cruise control, 5; remote control valves, 6; and
flow control, 7.
Figure 2-26
4
1
5 6
2
7
3
On tractors equipped with the powershift
transmission, the right console is laid out exactly
the same as the Quad Shift III equipped tractors
with the exception of the shift lever, 1.
Figure 2-27
1
Convenience items on the right console include
the cup holder, 1, and two storage trays, 2.
Figure 2-28
1
2
