SECTION 2 - OPERATION
2-126
2

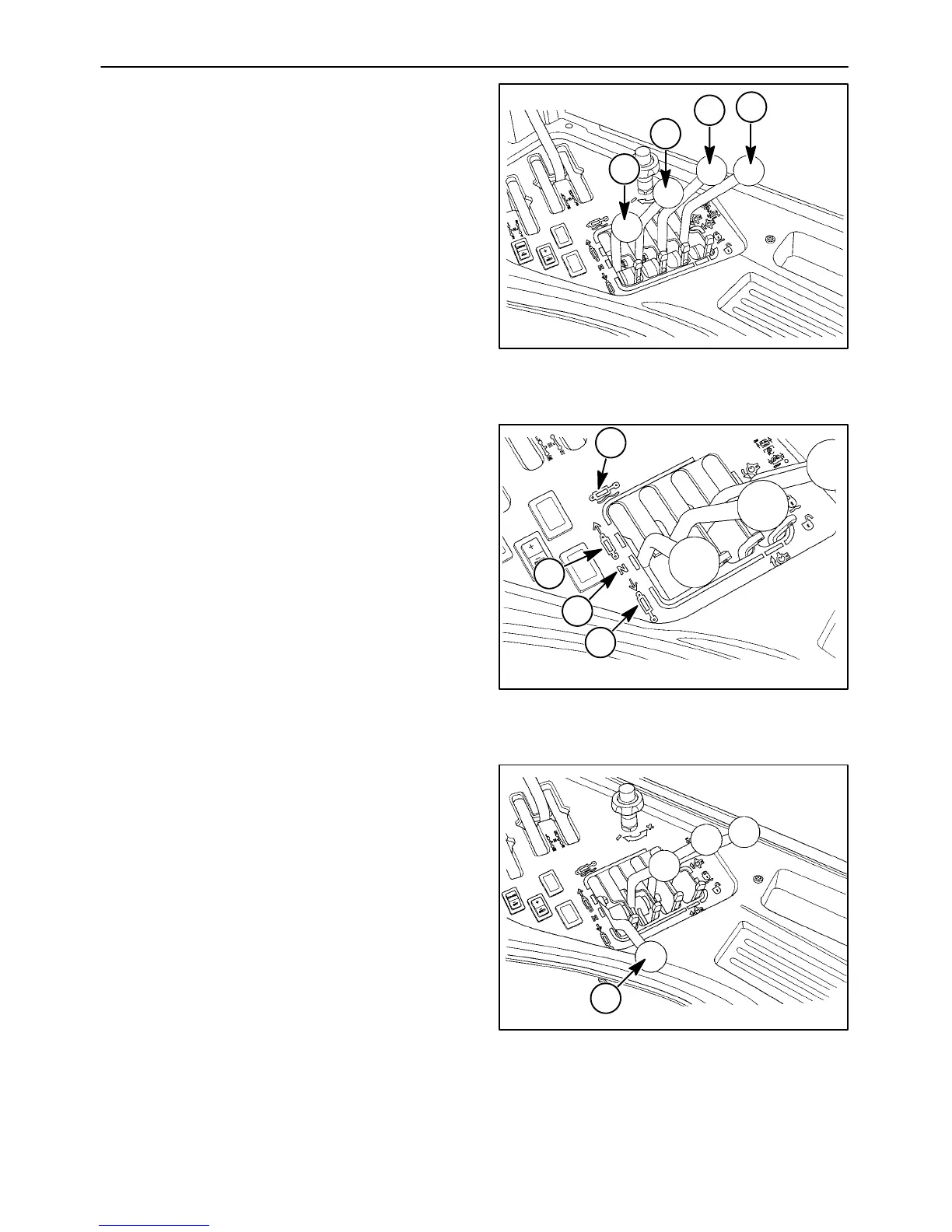

REMOTE CONTROL OPERATION
Four remote hydraulic control levers are located
on the right console. These are color-coded to
match the quick couplers at the rear of the tractor.
The colors should be (from left to right), blue, 1;
green, 2; tan, 3; and gray, 4.
Figure 2-164
1
3
4
The levers have four positions: neutral, 1; extend
(or raise), 2; retract (or lower), 3; and float, 4, as
indicated by the decals. When not in use, the
levers should be in the neutral position where
they can be locked to prevent accidental
actuation.
Figure 2-165
1
2
3
4
For the extend position, the lever, 1, is pulled
toward the operator. This is normally the
implement raise position. An adjustable
pressure release detent will hold the lever in the
raised position until the cylinder reaches the end
of its travel, then release to the neutral position.
The lever lockout has no function in this position.
Figure 2-166
1
