SECTION 3 - LUBRICATION AND MAINTENANCE
3-40
EVERY 250 HOURS

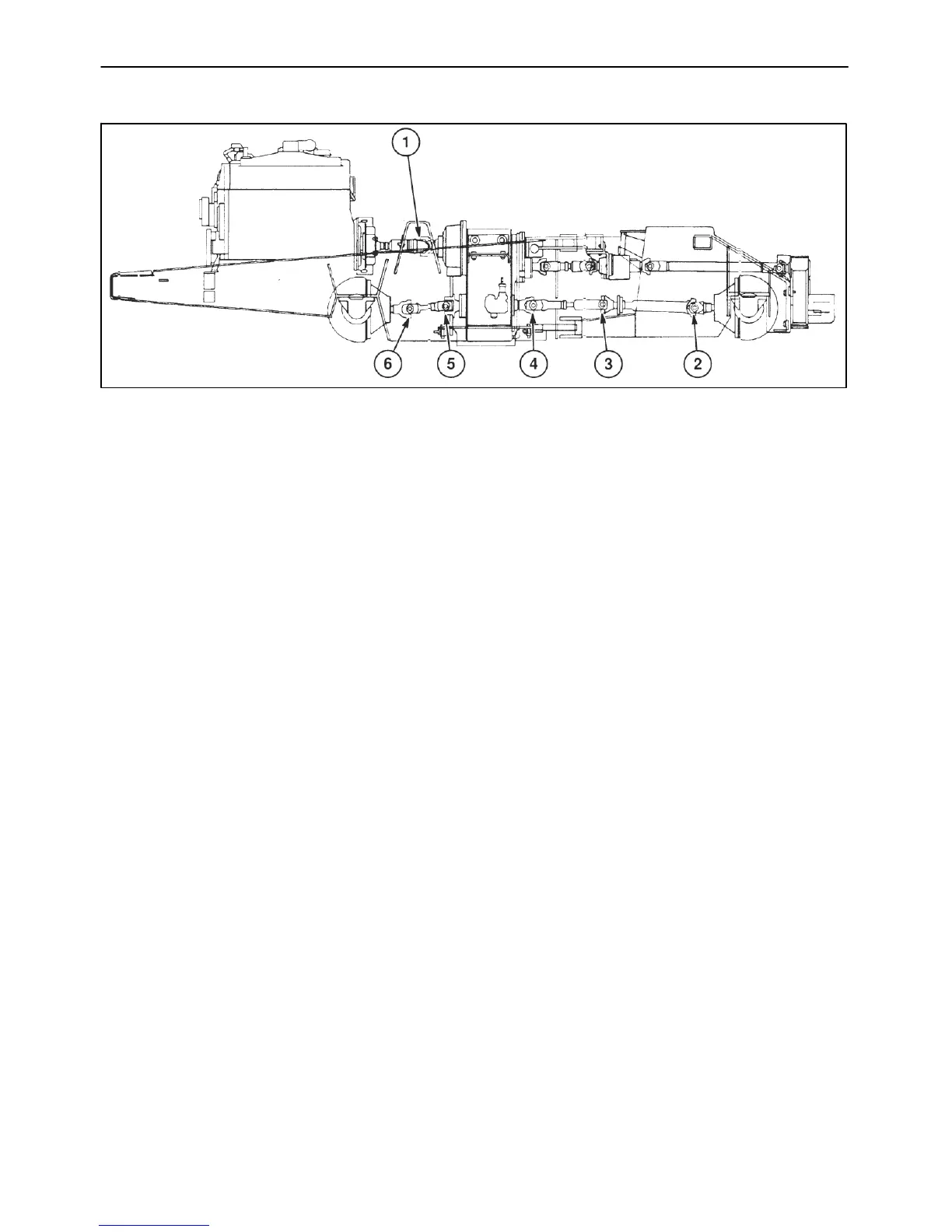

Figure 3-53
OPERATION 34
Driveline Cross and Bearing Lubrication
NOTE: Not all models require lubrication of
the cross and bearing on a given driveline.
Read the p rocedure carefully to identify
which cross and bearing requires lubrication
on your particular tractor.
Lubricate the following items:
1 Transmission input cross and bearing (2290
2335, 2360* and 2375* only)
2 Rear axle cross and bearing (2290, 2335,
2360* and 2375* only)
3 Rear axle driveline articulation cross and
bearing (2290, 2335, 2360* and 2375* only)
4 Transmission rear output cross and bearing
(2290, 2335, 2360* and 2375* only)
5 Transmission front output cross and bearing
(2290, 2335, 2360* and 2375* only)
6 Front axle cross and bearing (2290, 2335,
2360* and 2375* only)
Use lithium base EP high temperature grease
available from your Buhler Versatile dealer.
*Applies to units equipped with standard duty
axles.
