ADDITIONAL SAFETY ITEMS
ARTICULATION LOCK
1. Use the articulation lock, 1, during stationary
applications, servicing, jacking or overhaul
operations. Do not use when the tractor is
operating.
2. Before engaging the lock, drive the tractor to a
level surface, put the steering straight,
engage the park brake, put the gearshift in
neutral and stop the engine.
3. Remove the pin from the storage position on
the swing frame right and put the pin through
theholeontheswingframeleft.
NOTE: It may be necessary to start the
engine and articulate the frame slightly to
be sure the articulation pin is positioned
properly and completely seated through
the frame pieces.

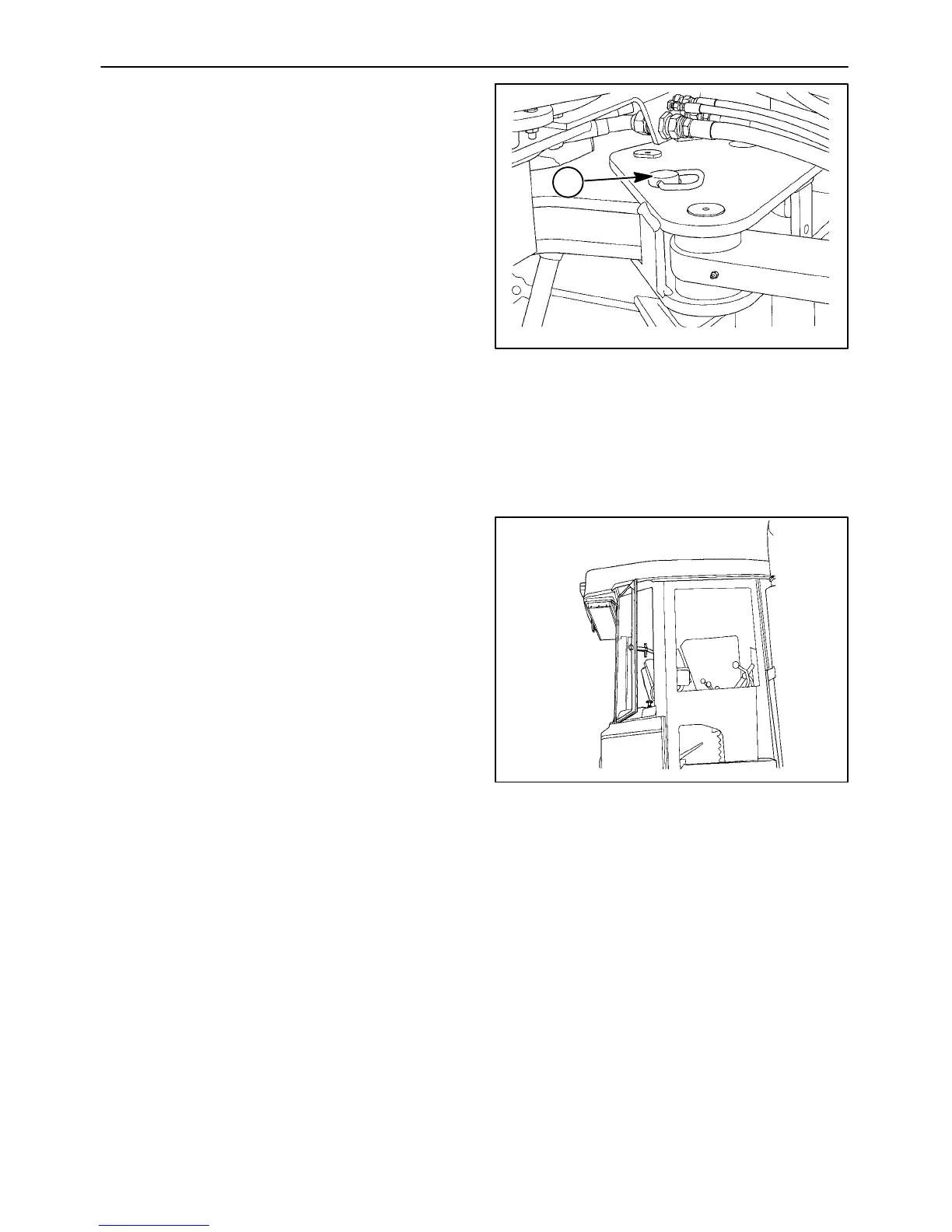

Figure 0- 1
19992745
1
ALTERNATE EXIT
1. The cab has an emergency exit located in the
right rear of the cab. Pull the pin attaching the
lever to the glass window. This will allow the
window to open beyond the l atch. If greater
access is required, the silicone hinge/seal can
be sliced to remove the window completely.
Figure 0- 2
19992746
