Buhler Versatile 2290 - Forward Operator Controls

SECTION 1 - GENERAL INFORMATION
1-21

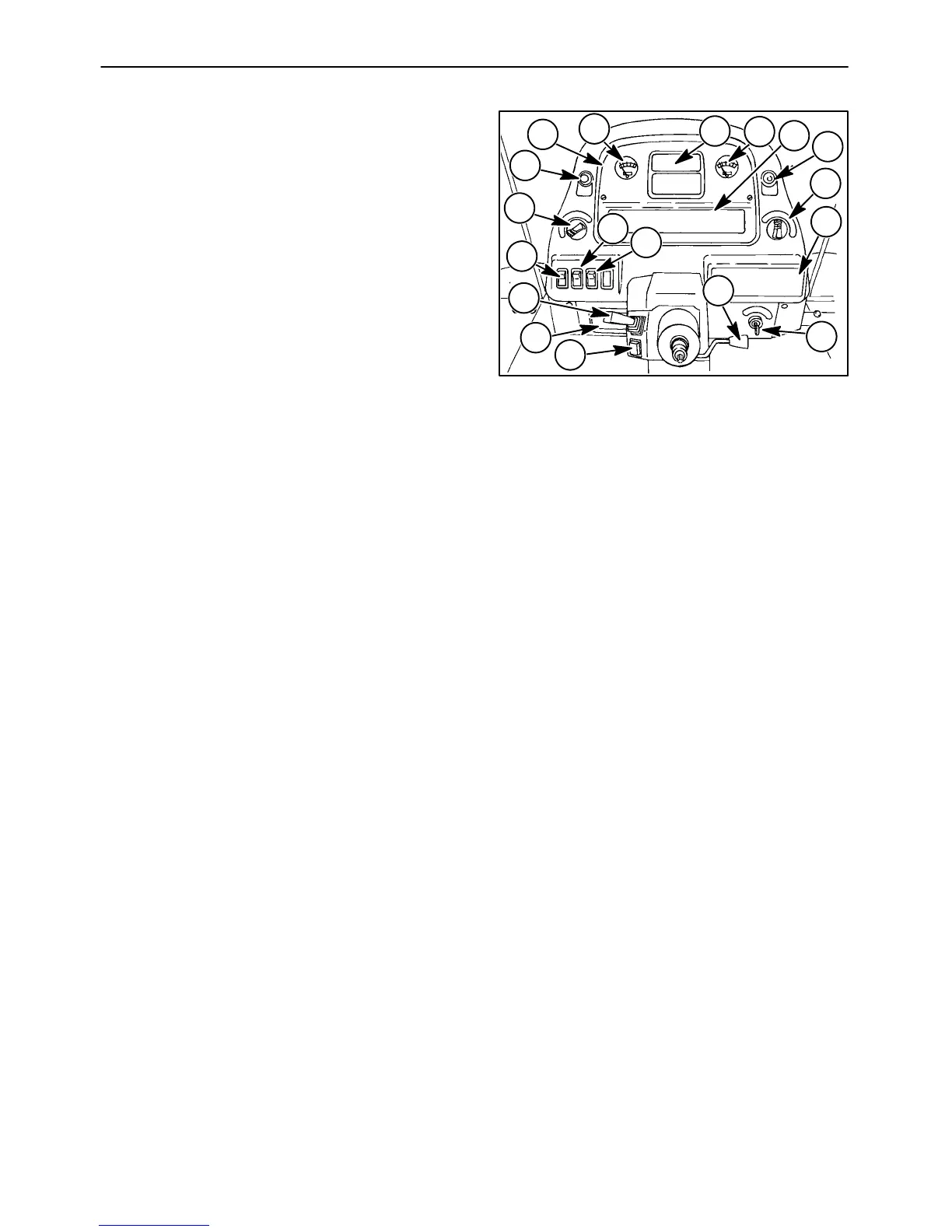

Figure 1-23
FORWARD OPERATOR CONTROLS
1 Electronic monitor digit select switch
2 Instrument cluster
3 Engine oil pressure gauge
4 Electronic monitor
5 Engine water temperature gauge
6 Warning light bar
7 Electronic monitor acknowledge/reset button
8 Electronic monitor rotary select switch
9 Radio (if equipped)
10 Ignition switch
11 Steering wheel tilt control lever
12 Ether start button
13 Ashtray
14 Combination horn, turn signal and
headlight dimmer switch lever
15 Front windshield wiper switch
16 Rear window wiper switch
17 Front and rear windshield washer switch
18 Rotary light switch
Steering wheel (removed in figure)
Steering wheel height control knob
(removed in figure)
