SECTION 2 - OPERATION
2-135
OPTIONAL HYDRAULIC EQUIPMENT
19 mm (3/4″) Coupler Kit P/N 86010513
This kit will allow hydraulic motors that require
19 mm (3/4″) supply and return hoses and
couplers, 1, to be hooked to the tractor and
operated using the gray remote control circuit.
The kit also contains a case drain line, 2, for the
motor if required in the application. The case
drain line hooks into the existing “zero return” line
on the right-hand side of the implement valve.
Operation of the gray circuit when equipped with
the19mm(3/4″) kit is identical to operation of the
circuit without the kit.

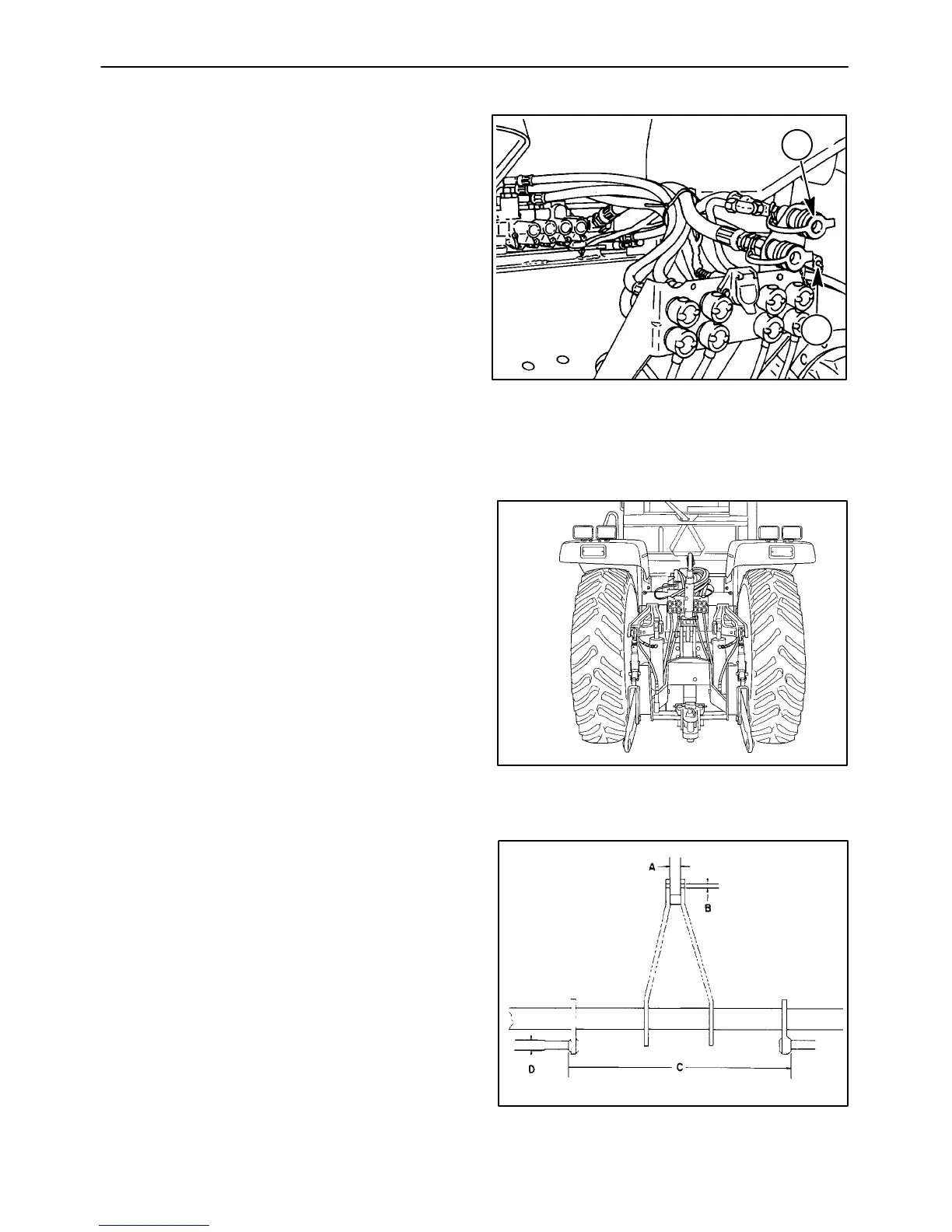

Figure 2-180
1
2
3-POINT HITCH (Optional)
3-POINT HITCH DESCRIPTION
All tractors can be equipped with a Category IV
Narrow 3-point hitch which converts to a
Category III hitch. The 3-point hitch can be
factory or dealer installed.
The 3-point hitch is an electrohydraulic system
that has an automatic position control feature
to maintain implement depth as determined by
the operator.
Figure 2-181
Be sure that the i mplements used conform to the
hitch dimensions shown:
(A) 51 mm (2″)
(B) 45 mm (1.78″)
(C) 920 mm (36.23″)
(D) 51 mm (2″)
Figure 2-182
