SECTION 2 - OPERATION
2-139

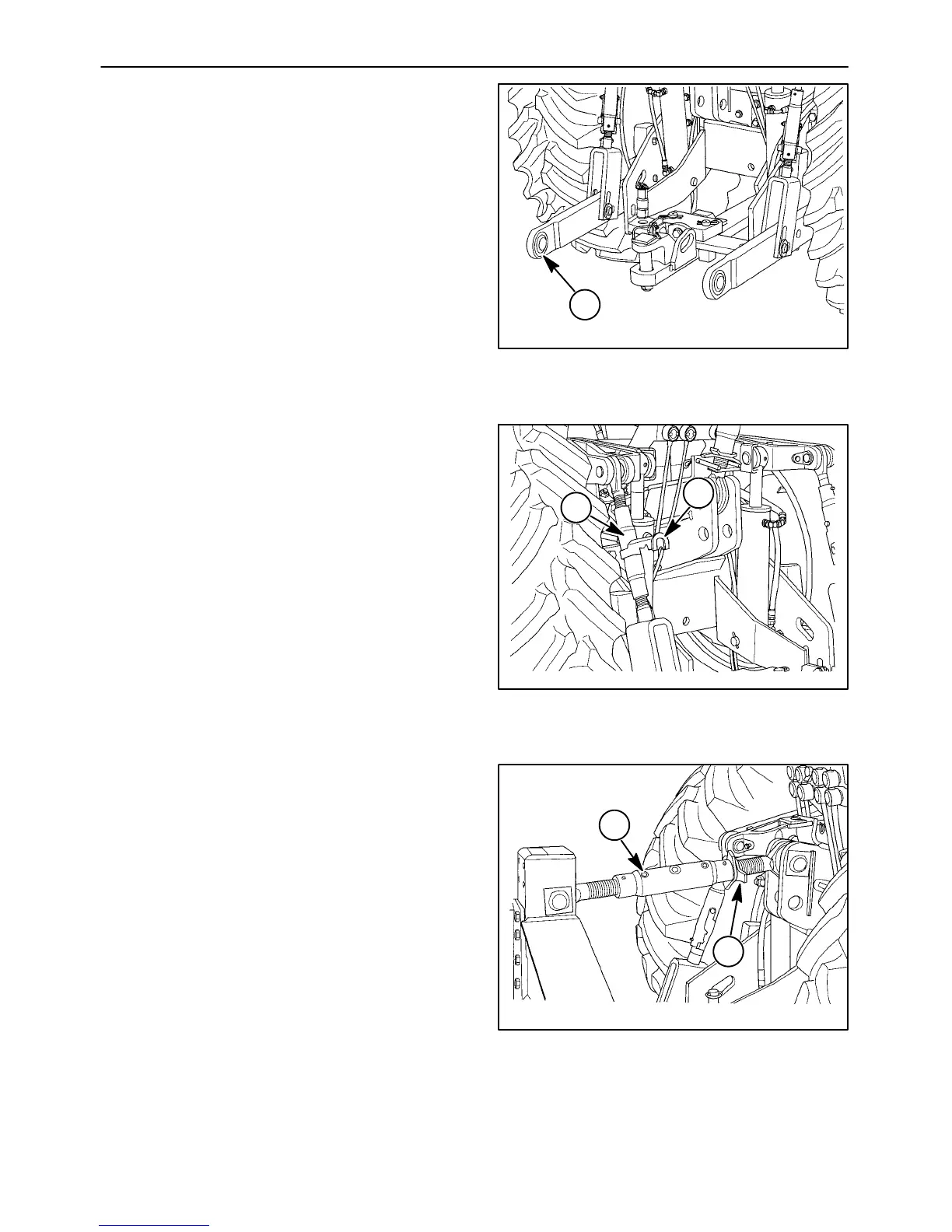

HITCH ADJUSTMENTS
Lower Links
When the lift links are adjusted halfway, the lower
link hitch point, 1, should be 200 mm - 250 mm
(8″ -10″) from the ground when the lift cylinders
are fully retracted. Be sure that the implement is
level on the right and left sides of the hitch by
adjusting the lift link length.
Figure 2-190
1
Lift Links
The lift links, 1, on the 3-point hitch may be
adjusted to level the hitch or an implement from
side to side by turning the latch handle, 2, on the
link to raise or lower that side of the hitch. Fold
the handle out and turn it until the lift link is
adjusted. Return the handle to the storage
position by lining up the square sides of the
threaded lift link rod with the handle and
snapping it down onto the lift link.
NOTE: Only level the implement side to side
when it is in the full down position and the
weight is off the hitch.
Figure 2-191
1
2
Upper Link
The upper link, 1, is used to level the implement
from front to rear. Loosen the locking plates, 2, on
the upper link. Turn the center collar to s horten or
lengthen the upper link to level the i mplement.
Tighten the locking plates.
Figure 2-192
1
2
