SECTION 2 - OPERATION
2-7
SEAT ADJUSTMENTS
NOTE: All adjustments should be made in the
following order while sitting in the seat.
Adjust the seat using the following procedures:
NOTE: Turn the ignition switch to the “ACC”
position to use the electric functions of the
seat. DO NOT START THE ENGINE.
1. Height/Weight Adjustment
Raise -- Depress the top of the switch. Release
when the desired height is obtained.
Lower -- Depress the bottom of the switch.
Release when the desired height is achieved.
2. Backrest Angle Adjustment
Lift the lever and tilt the backrest to the desired
position. Release the lever to lock the backrest in
position.
NOTE: The backrest will tilt backward far
enough to contact the rear window.
3. Fore/Aft Position Adjustment
Pull up on the lever and move the seat fore/aft
through the 178 mm (7”) adjustment range to the
desired position. Release the lever to lock the
seat into position.
4. Fore/Aft Float
Pull up on the lever to allow the seat to float fore
and aft 51 mm (2”). Push down on the lever to
lock the seat into position.
5. Lateral Float
Pull up on the lever to allow the seat to float
laterallt 51 mm (2”). Push down on the lever to
lock the seat into position.
6. Storage tray
Pull out for access.

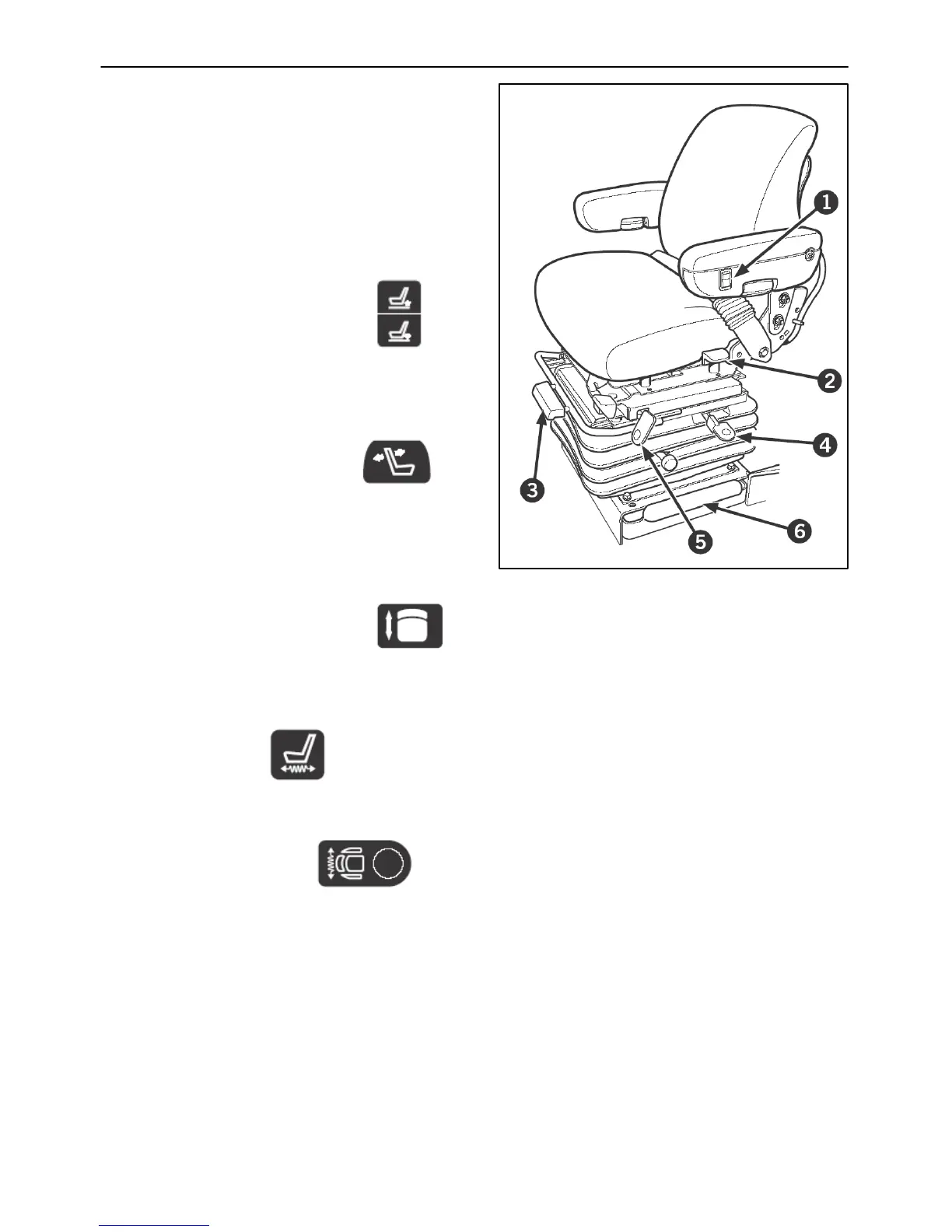

Figure 2-9
To Next Page
