SECTION 2 - OPERATION
2-10
OPERATOR’S CONTROL CONSOLE
The following is a description of the switches and
gauges located on the front operator’s console.
The electronic monitor and related controls will
be covered in the next section.
1 Rotary light switch
2 Engine oil pressure gauge
3 Engine coolant temperature gauge
4 Warning light bar
5 Radio (if equipped)
6 Ignition switch
7 Ether start button
8Ashtray
9 Combination horn, turn signal, and headlight
dimmer switch lever
10 Front windshield wiper switch
11 Rear window wiper switch
12 Front and rear windshield washer switch

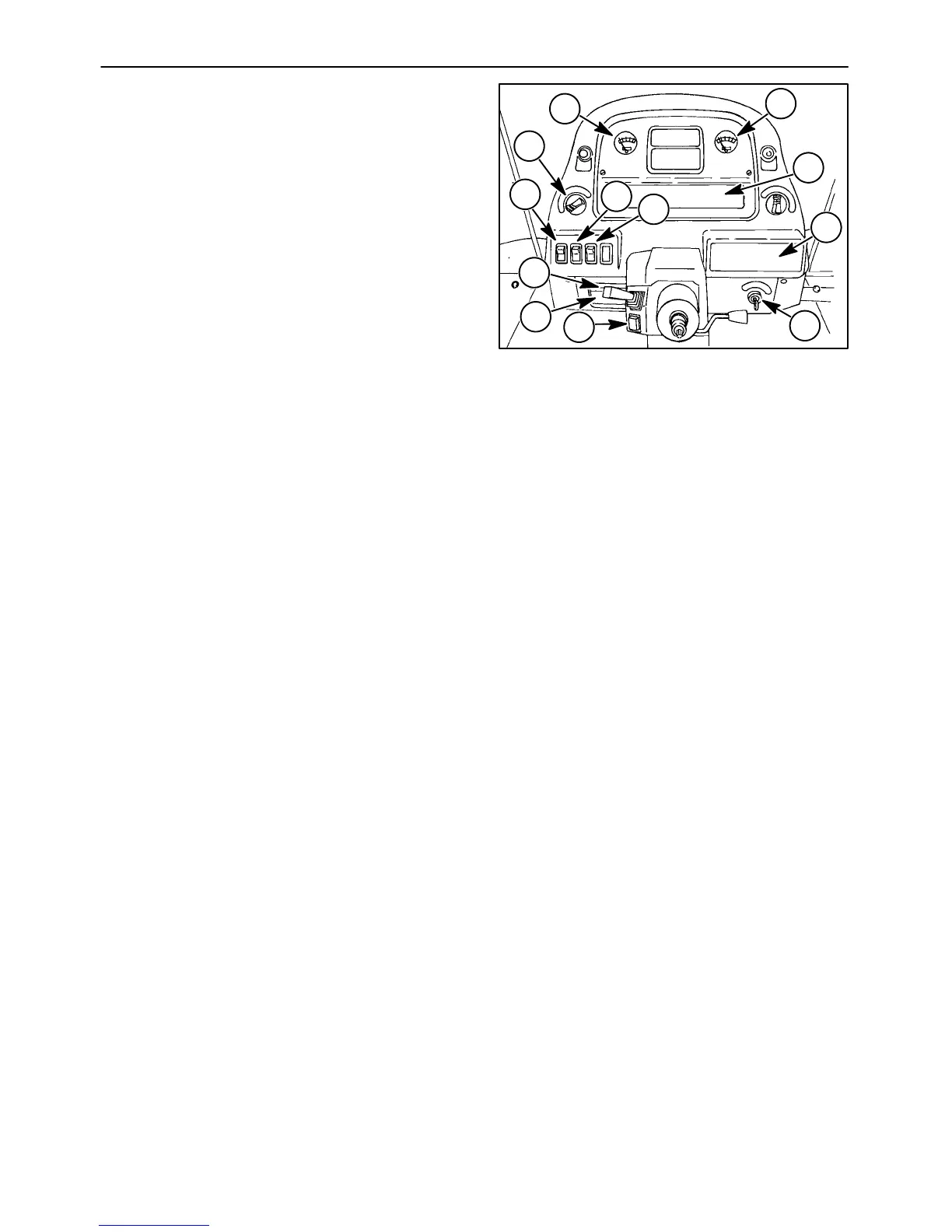

Figure 2-13
3
1
5
4
2
6
7
8
9
10
11
12
