SECTION 3 - LUBRICATION AND MAINTENANCE
3-82
AS REQUIRED

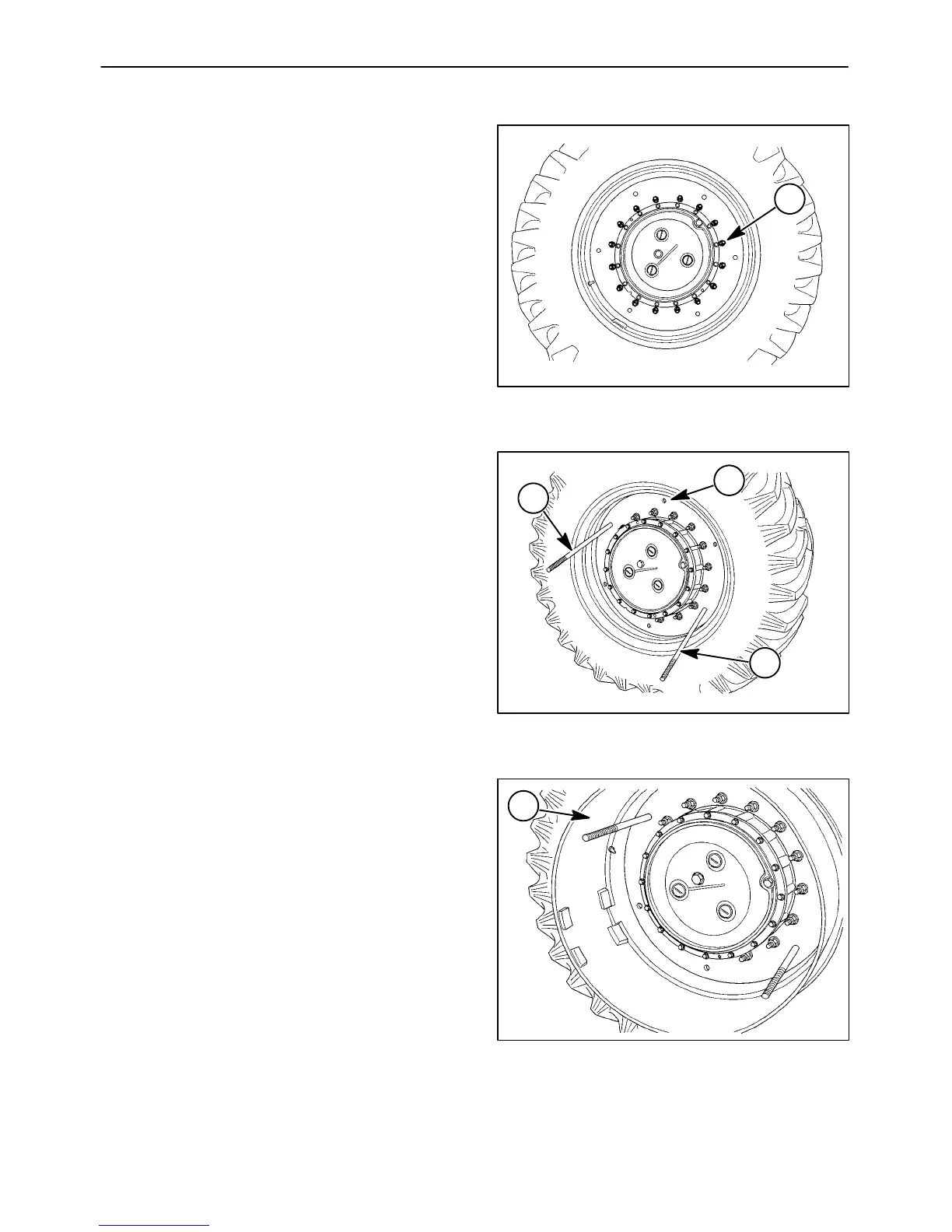

3. Standard Tie Rod Style Dual Wheels
a. It is only permissible to install the inner
wheel with the rim inset (narrow tread
width). There is no drive lug on the outset
side of the wheel.
b. Place a jack under one side of the axle
housing. Raise the side and torque the
inner wheel mounting nuts, 1, to 710 N⋅m
(525 ft. lbs.).
c. Place two tie rods, 1, in the outer holes, 2,
of the inner wheel 180° apart. Place a
flange nut on the back side of the inner
wheel disc on each tie rod. The two tie
rods will help align the inner and outer
wheels during initial assembly.
d. Install a spacer, 1, into the inside of the
inner wheel rim. Be sure the positioning
lugs on the inner wheel (one tab) and the
spacer (two tabs) interlock.
e. Lightly tap the spacer for a snug fit to the
inner wheel. Push the two tie rods in
toward the frame so they do not protrude
through the spacer.
1
Figure 3-134
1
1
2
Figure 3-135
1
Figure 3-136
