SECTION 2 - OPERATION
2-19

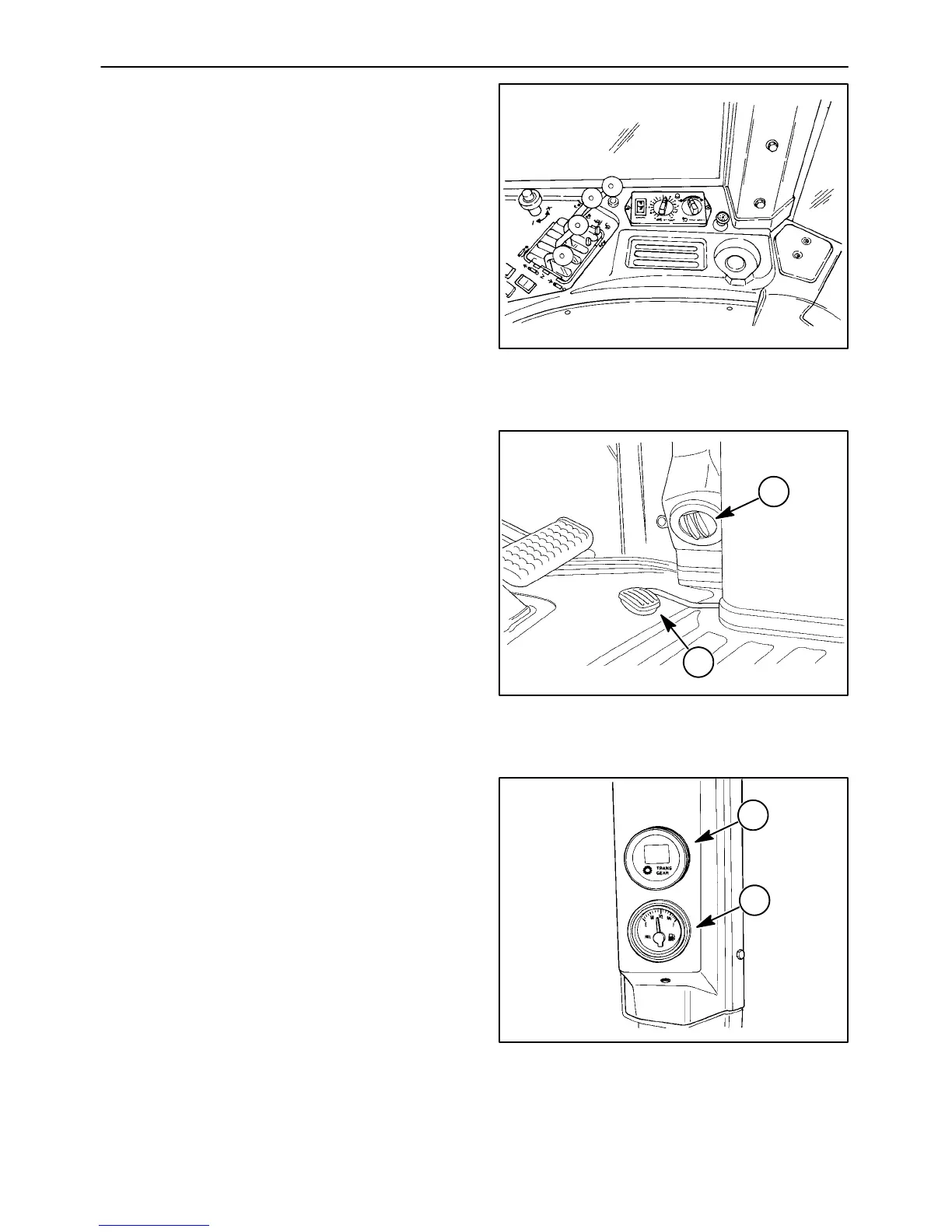

On 3-point hitch equipped tractors, the 3 -point
hitch control s witches and dials are located on
the rear portion of the right console.
Figure 2-29
At the lower front corner is an adjustable
heater/air-conditioning vent, 1, and the
decelerator pedal, 2.
Figure 2-30
1
2
Above the front corner of the right console on the
cab post is the fuel gauge, 1. If the tractor is
equipped with the powershift transmission, a
digital readout, 2, displaying transmission
information is located above the fuel gauge.
Figure 2-31
1
2
