IMPLEMENT STATUS SWITCH
The implement status switch is to be mounted to
the tractor for 3 -point hitch applications, or to the
implement for drawbar applications, to provide
an “on/off” signal to the Tractor Performance
Monitor (TPM) to start and stop the calculation of
the area covered.

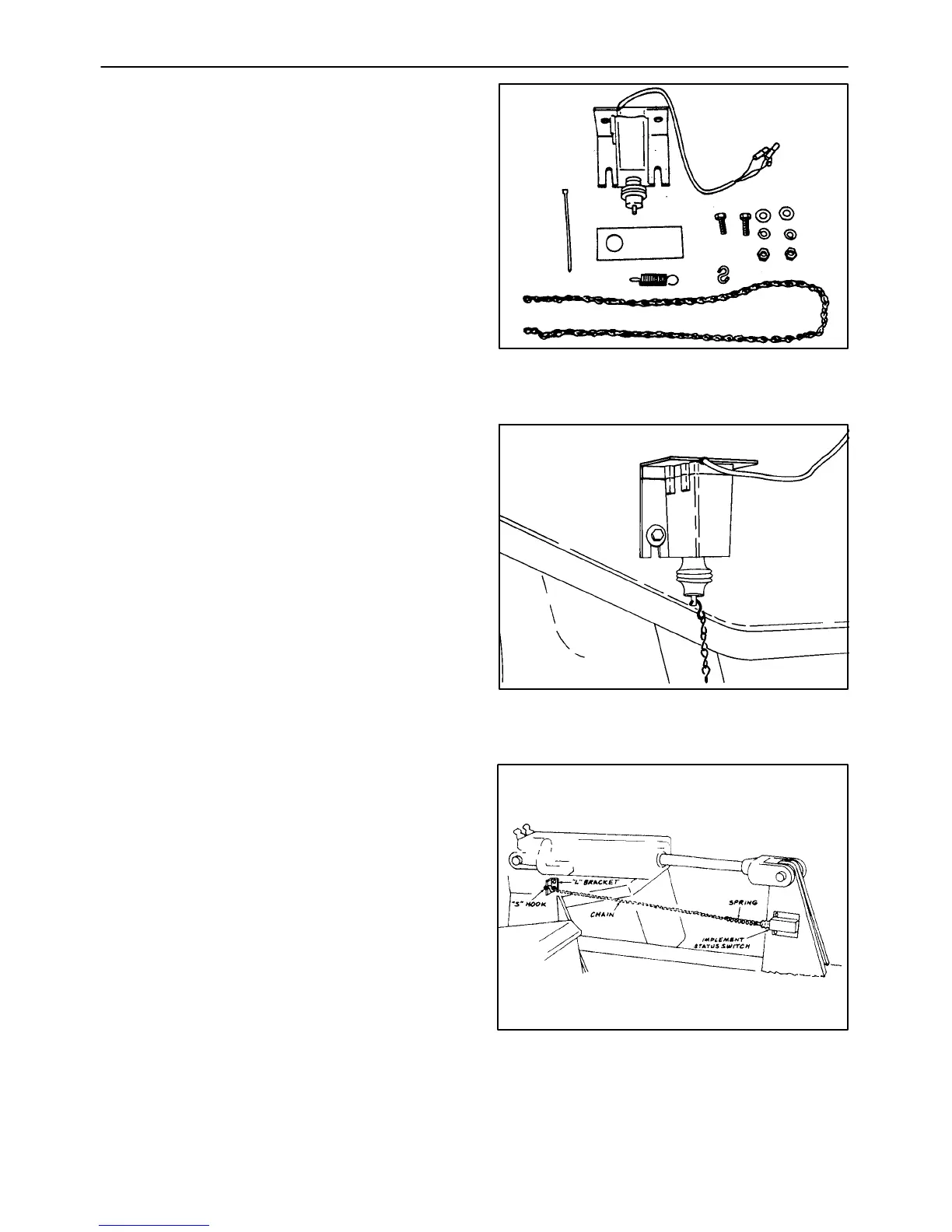

Figure 2-140
Examples of various mounting arrangements
are shown:
A. Tractor Equipped with 3-Point Hitch - The
implement status switch is attached to the
fender and connected to the lift arm.
Figure 2-141
B. Remote Mount to an Implement - The
implement status switch is attached to the
linkage that lifts the implement.
Instructions for mounting the switch are
provided with the kit. Tractors with a factory-
installed TPM will have the switch shipped
with it.
Figure 2-142
