SECTION 2 - OPERATION
2-162

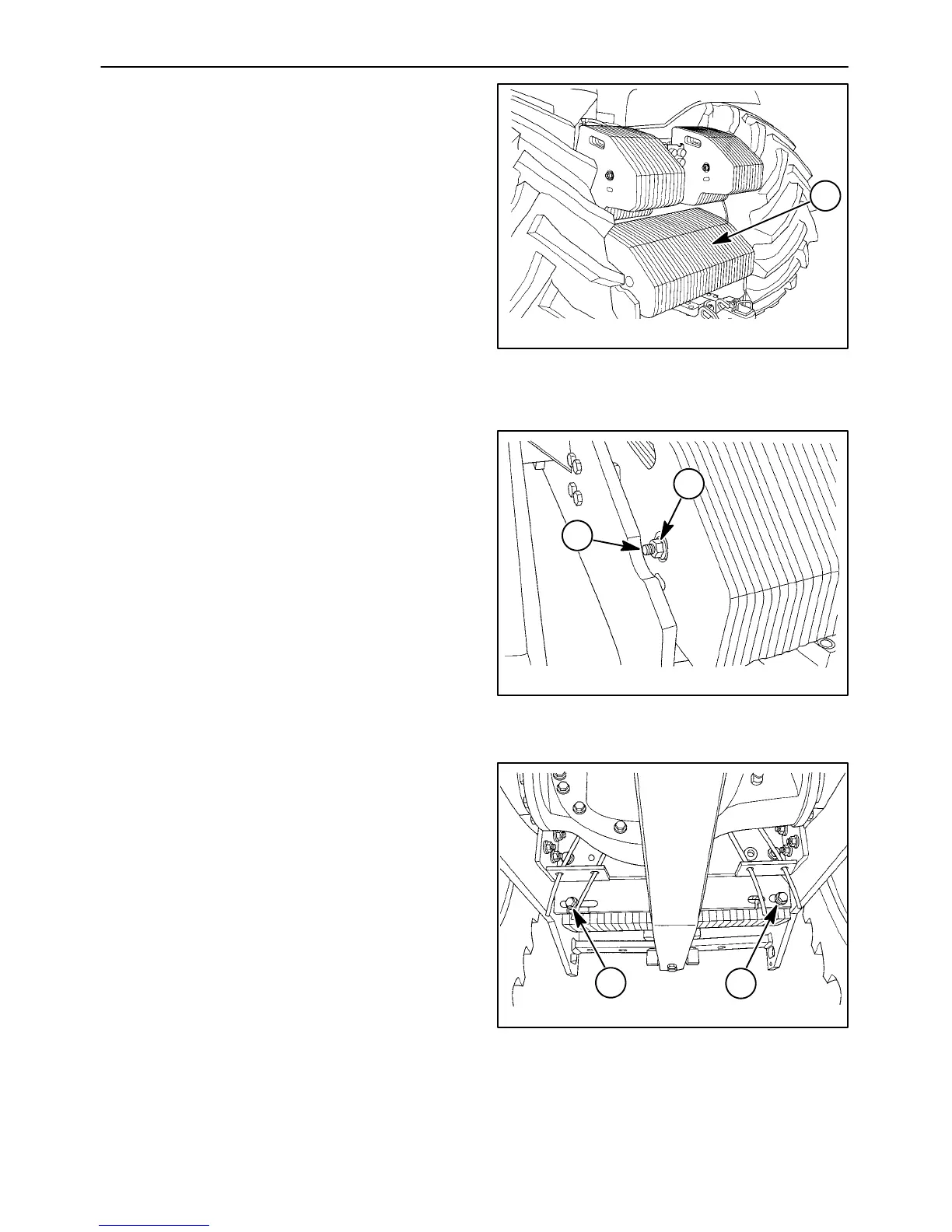

The rear weight kit, 1, has thirty-three 30 kg
(67-lb.), suitcase-style weights and, along with
its brackets and hardware, weighs
approximately 1100 kg (2,400 lbs.).
NOTE: The rear weight kit cannot be installed
on units that have a PTO option or a 3-point
hitch option. The 3-point hitch or PTO is now
considered part of the rear axle ballast, and
the remaining additional weight required can
be installed as liquid weight in the tires.
Figure 2-222
1
Rear weights can be removed by l oosening the
nut, 1, on the left side of the tie rod, 2, and pulling
the tie rod fully to the right against the right tire.
Figure 2-223
1
2
Remove the two, capscrews, 1, from the
underside of the weight package.
Figure 2-224
1
1
