Burkert 2000 Assembly Instructions

18
Option: Min. /max. stroke limitation

Loctite 274

1
Spindle
2
Guide spindle
3
Nut, slotted
4
Bridge (actuator)
5
Cap screw
6
Tube
7
Cover
8
Coupling
9
O-ring
10
Nut
11
O-ring

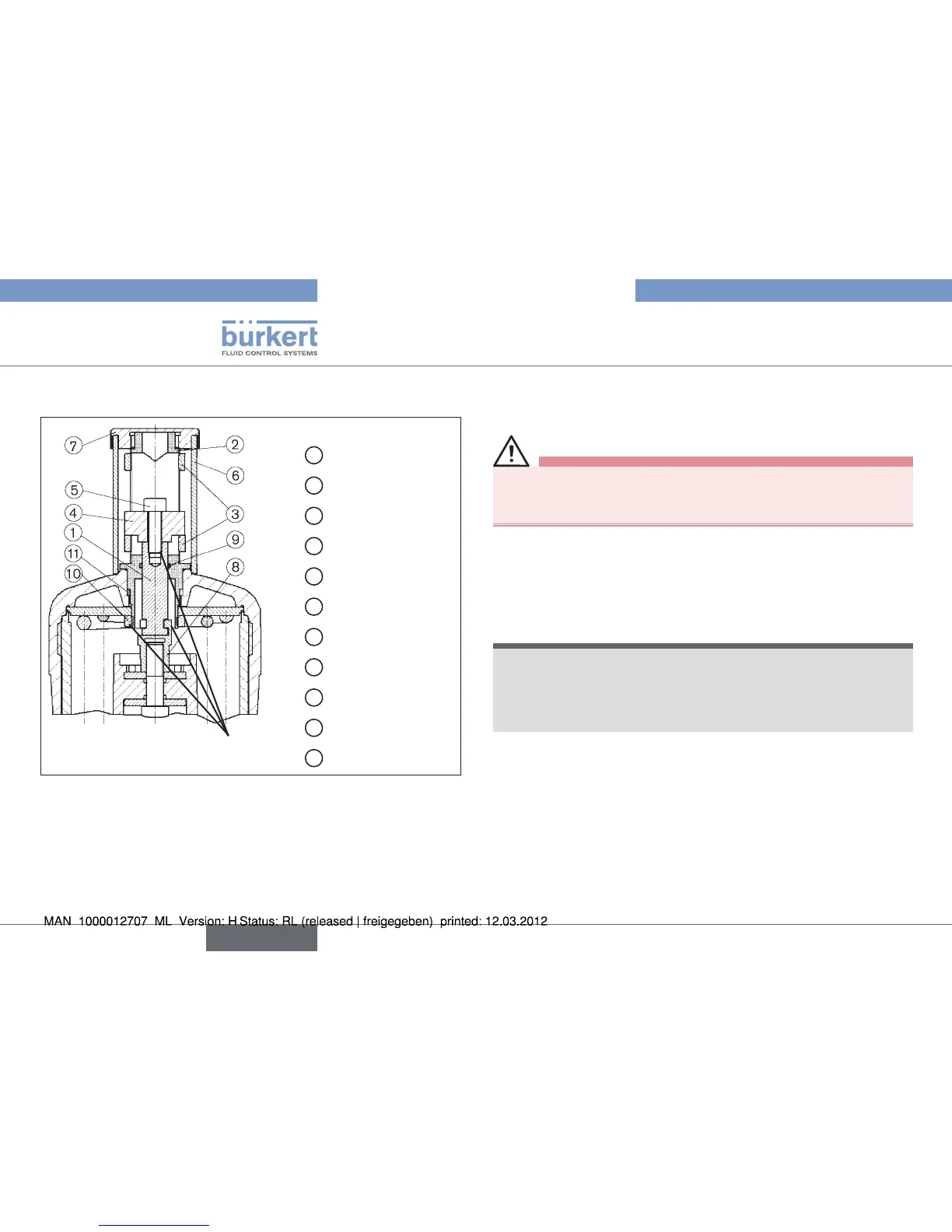

Actuators G-100, H-125, min. / max. stroke limitation with Fig. 7:
optical position display




Interrupt the control air and fluid infeed before modifying the •
devices and reduce the pressure in the fluid system.
Interrupt supplies of control air and medium
→ .
Empty valve housing
→ .
Unscrew transparent cap
→ from actuator cover.
Screw out position indicator with Allan key (
→ WAF5 or WAF8).


Only the special wrench provided by Bürkert for the purpose •
must be used to screw down the actuator cover.
(see chapter on assembly accessories).•
Screw off actuator cover with special wrench, counterbracing at
→
the sleeve.
english



Burkert 2000 Specifications

General

Model	2000
Manufacturer	Burkert
Ambient Temperature	-10 to +60 °C
Protection Class	IP65
Operating Temperature	-10 to + °C
Seal Material	FKM
Operating Pressure	0- bar
Fluid Temperature	-10 to + °C
