Burkert 2000 - Installing Valve Body; Installing Devices with Welded Connection

23
Option: Electrical position repeater





1
Electrical position repeater
with appliance socket
2
Adapter

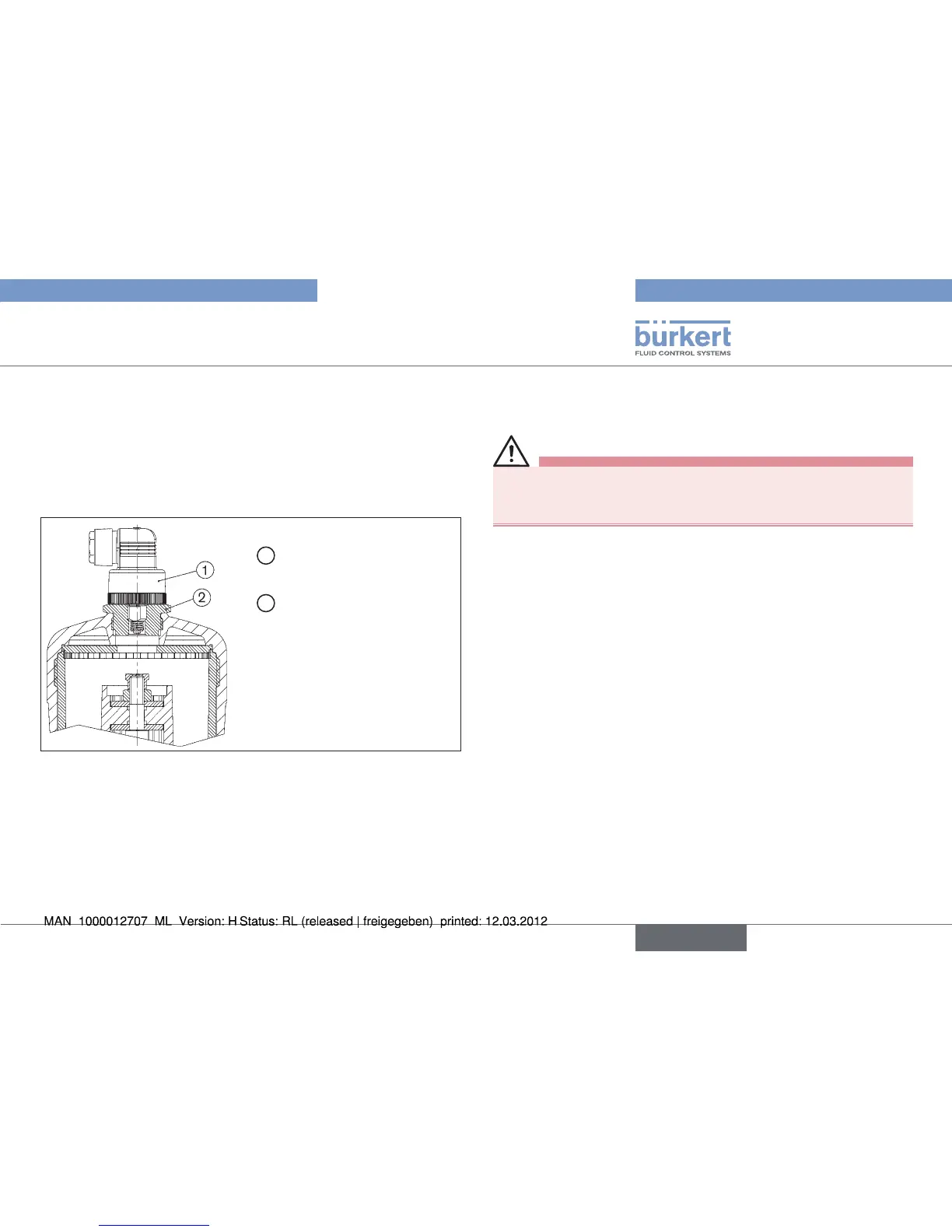

Fig. 10: Actuators D-50 to F-80 with electrical position repeater




Interrupt the control air and fluid infeed before modifying the •
devices and reduce the pressure in the fluid system.
Interrupt supplies of control air and medium
→ .
Unscrew transparent cap
→ from actuator cover.
Screw out position indicator with Allan key (
→ WAF5).

Screw adapter → ② (see “Fig. 10: “) instead of transparent cap
onto actuator
Screw electrical position repeater
→ ① (see “Fig. 10: “) into
adapter ②.
english


