Installation and wiring
Type of connector Cable type
Female 8-pins M12 con-
nector
(article number 444 799)
• shielded
• external diameter of wire: 5.9 mm
• cross section of wires: 0.25 mm
2
Type 2508
(article number 438 811)
• shielded
• external diameter of wire: 6...7 mm
• cross section of wires: 0.14...0.5 mm
2

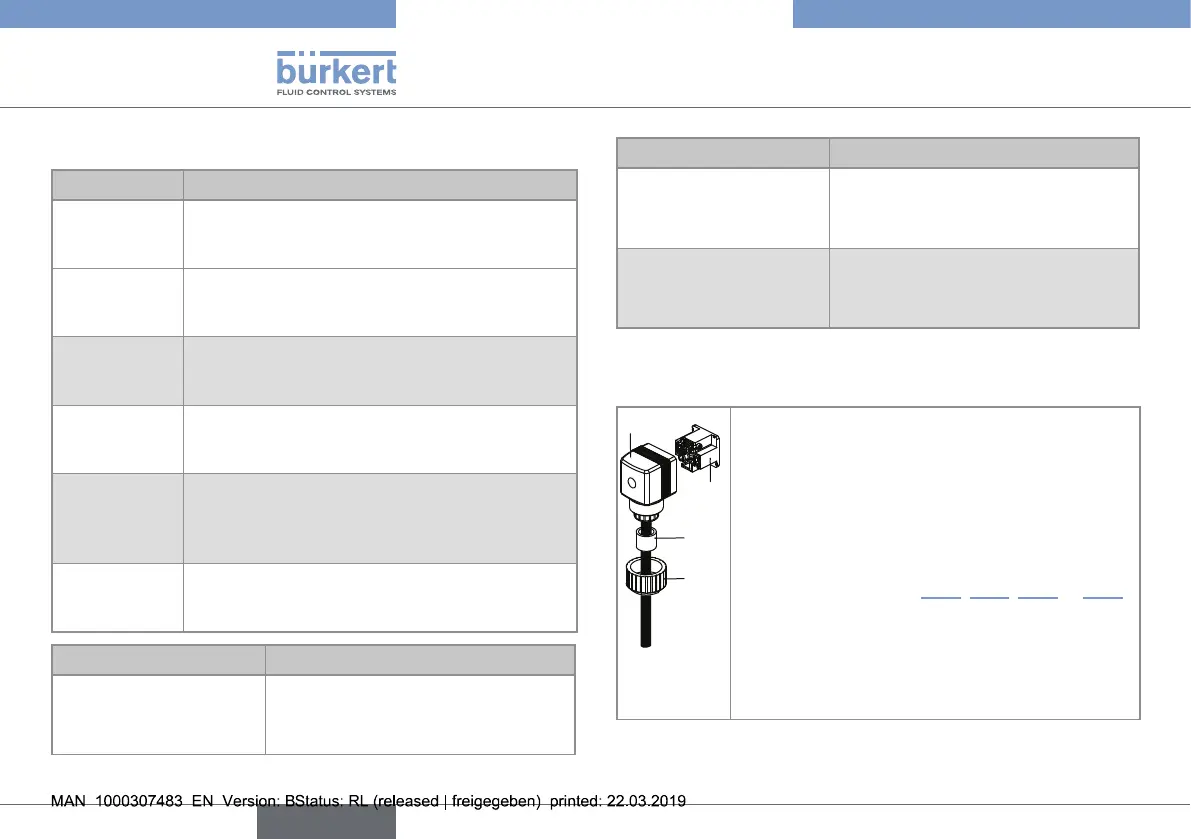

7.4.2. Assembling the connectors
1
2
3
4
→ Unscrew the nut [1] of the cable gland.
→ Remove the terminal block [3] from the
housing [2].
→ Insert the cable through the nut [1] then through
the gasket [4], through the cable gland and
finally through the housing [2].
→ Make the connections to the screw terminal
block [3] (see chap. 7.4.3, 7.4.5, 7.4.7 or 7.4.8).
→ Position the terminal block [3] in steps of 90°
then put it back into the housing [2], pulling
gently on the cable so that the wires do not
clutter the housing.
→ Tighten the nut [1] of the cable gland.
7.4.1. Data of the cables and wires
Version Type of connector
Detector with
NPN transistor
output
EN 175301-803 female connector
(type 2508, supplied)
Detector with
PNP transistor
output
EN 175301-803 female connector
(type 2508, supplied)
Detector with
NPN/PNP tran-
sistor output
Female 5-pins M12 connector
(not supplied)
Detector with
relay output
EN 175301-803 female connector (type 2508,
supplied) and
female 5-pin M12 connector (not supplied)
Flowmeter with
relay output
EN 175301-803 female connectors (type 2508
supplied) and
female 8-pins M12 connector (not supplied) or
female 5-pins M12 connector (not supplied)
Flowmeter
without relay
output
Female 5-pin M12 connector
(not supplied)
Type of connector Cable type
Female 5-pins M12 con-
nector
(article number 917 116)
• shielded
• external diameter of wire: 3...6.5 mm
• cross section of wires: max. 0.75 mm
2
English
Type 8032 - SE32
