Burkert 8032 - Wiring of the Version with a Single Current Output

28
Installation and wiring
7.4.6. Wiring of the version with a single
current output
1 2
4 3
5
1. V+ (12...36 V DC)
2. Negative 4...20 mA output
3. 0 V DC
4. Positive 4...20 mA output
5. Functional earth
The position of the 5-pin M12 male fixed connector is adjustable:
→ Unscrew the locknut.
→ Turn the fixed connector to the desired position, by 360° max.
to prevent the cables from twisting inside the housing.
→ Tighten the locknut using a spanner, while keeping the fixed
connector in the desired position.

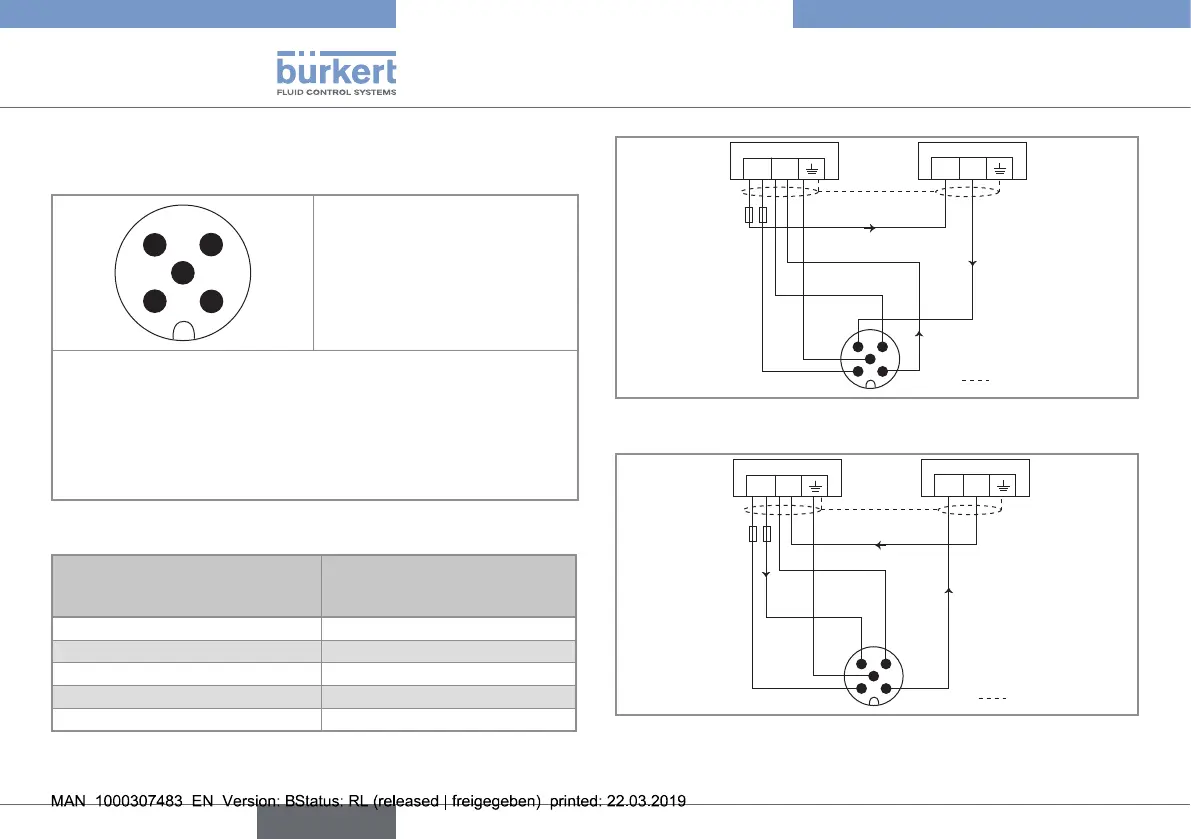

Fig. 19 : Pin assignment of the 5-pin M12 male fixed connector
Pin of the M12 female cable
available as accessory equipment
(article number 438 680)
Colour of the wire (signal)
1 brown (V+)
2 white (negative 4...20 mA output)
3 blue (0 V DC)
4 black (positive 4...20 mA output)
5 grey (functional earth)
The current output can be connected in either sourcing or sinking
mode.
+
-
i
(*)
+
-
4
3
1 2
5
i
i
Power supply
12...36 V DC
4...20 mA input
(at external
instrument)
brown
blue
shield
black
white
grey
Fig. 20 : Wiring of the current output, in sinking mode, of a version
with a single 5-pin M12 fixed connector
+
-
i
(*)
+
-
4
3
1 2
5
i
i
shield
grey
Power supply
12...36 V DC
4...20 mA input
(at external
instrument)
brown
blue
black
white
Fig. 21 : Wiring of the current output, in sourcing mode, of a
version with a single 5-pin M12 male fixed connector
(*) Functional earth
English
Type 8032 - SE32
