Installation and wiring
12-36 V DC
+ -
1
3
2
(*)
L
N
(1)
4
3
1 2
5
6
7
8
Power cable
shield
grey
Power supply (2)
white
green
not connected
Load (solenoid valve,
for example)
Relay output, normally
closed (NC)

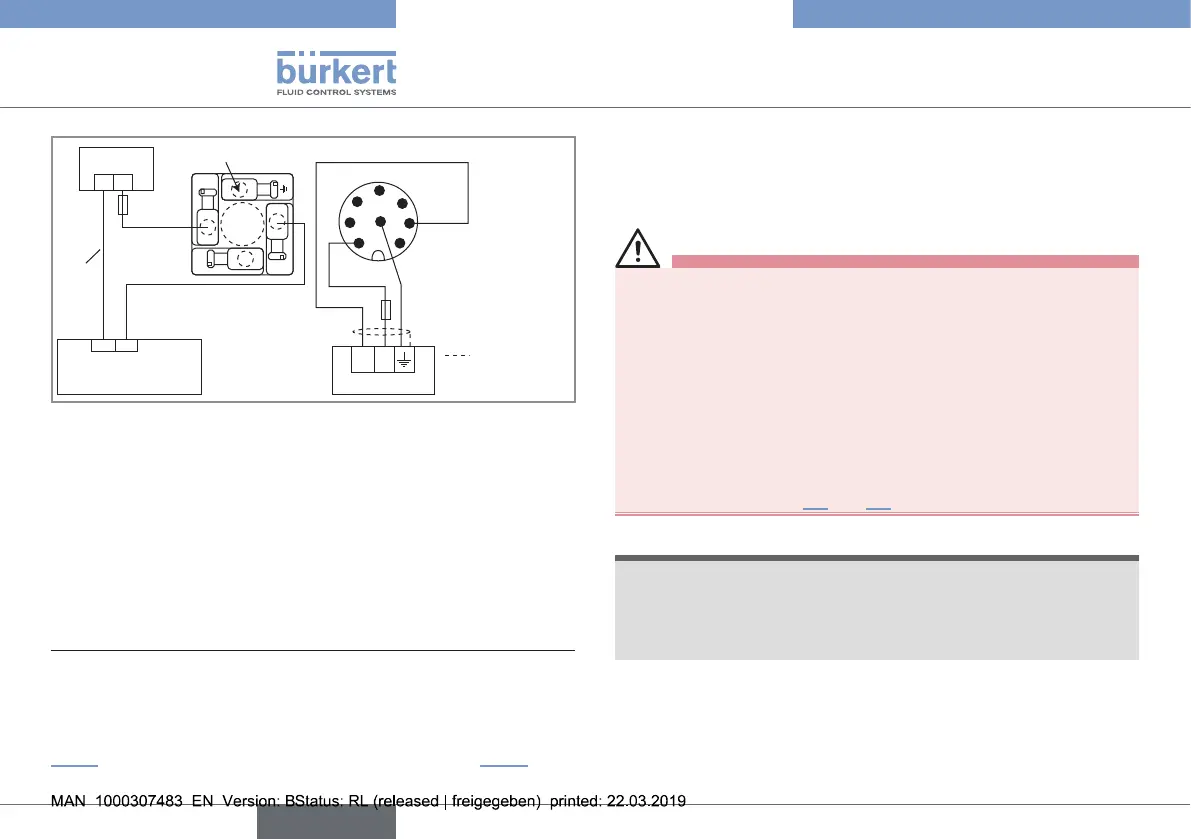

Fig. 29 : NC wiring of the relay output of a version with an 8-pin
M12 fixed connector
(*) Functional earth
(1) Use a voltage limiter depending on the load selected, e.g. for the solenoid
valve, an EN 175301-803 fixed connector with integrated varistor.
(2) If the current output is needed, wire the 8-pin M12 connector acc. to
Fig. 26 if the current output is wired in sinking mode, or acc. to Fig. 27 if the
current ouput is wired in sourcing mode.
8. COMMISSIONING
8.1. Safety information
Warning
Danger due to nonconforming commissioning.
Nonconforming commissioning could lead to injuries and damage
the device and its surroundings.
▶ Before commissioning, make sure that the staff in charge have
read and fully understood the contents of the manual.
▶ In particular, observe the safety recommendations and intended use.
▶ The device/installation must only be commissioned by suitably
trained staff.
▶ Before commissioning the device, enter the K-factor of the fit-
ting used. See chap. 9.4 and 9.5.
note
Risk of damage to the device due to the environment
▶ Protect this device against electromagnetic interference,
ultraviolet rays and, when installed outdoors, the effects of the
climatic conditions.
