Adjustment and functions
Hysteresis operation
The change of state is done when a threshold is detected
(increasing flow rate:high threshold (OHI) to be detected,
decreasing flow rate: low threshold (OLO) to be detected).
Contact
Flow
rate
ON
OFF
OLO OHI
Not inverted
ON
OFF
OLO OHI
Contact
Flow
rate
Inverted

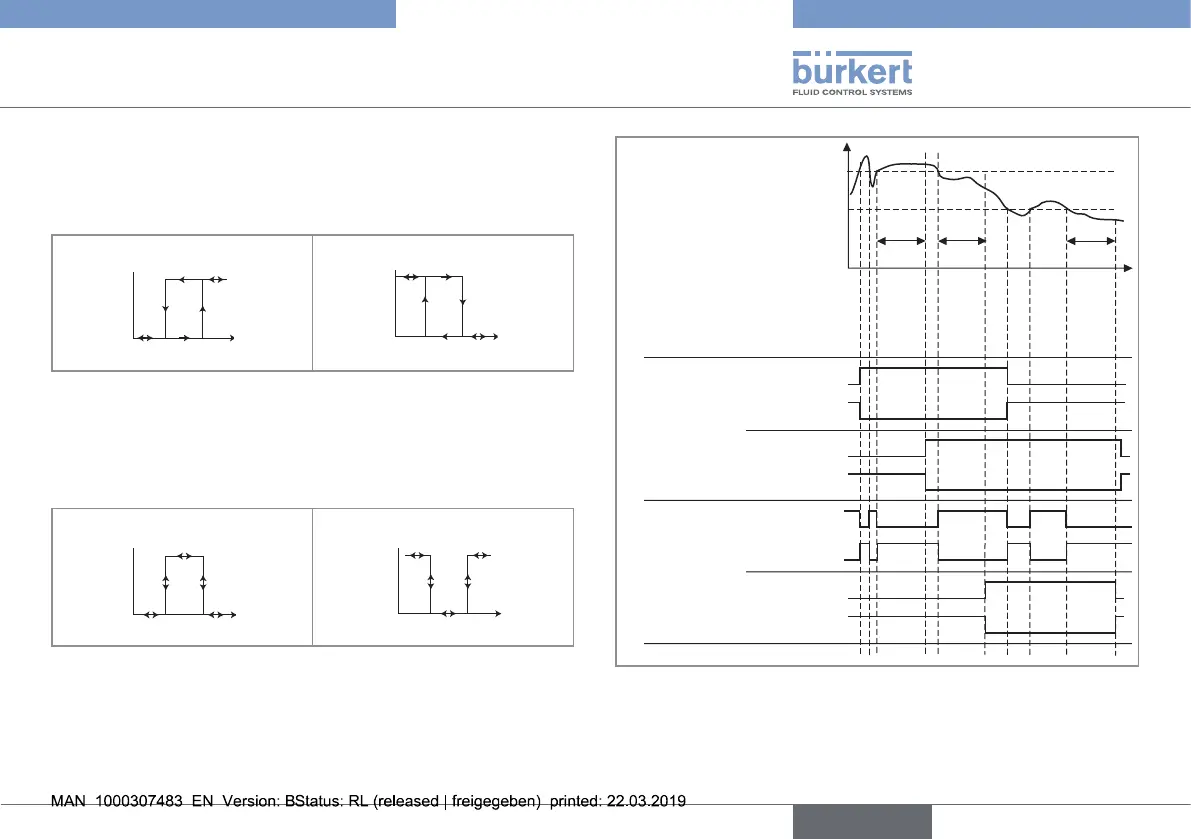

Fig. 31 : Hysteresis operation of the transistor output
Window operation
The change of state is done whenever one of the thresholds is
detected.
Not invertedContact
Flow
rate
ON
OFF
OLO OHI
Inverted
Contact
Flow
rate
ON
OFF
OLO OHI
Fig. 32 : Window operation of the transistor output
The time delay (DEL) is valid for both output thresholds. switching
is only done if one of the thresholds (OHI - OLO) is exceeded for a
duration longer than this time delay.
2 s
OHI
OLO
2 s
2 s
DEL = 0 s
DEL = 2 s
DEL = 0 s
DEL = 2 s
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
OUT
t
Hysteresis operation
Not inverted
Not inverted
Inverted
Inverted
Inverted
Inverted
Window operation
Flow rate
Not inverted
Not inverted
Fig. 33 : Examples for the behaviour of the transistor or relay output
of a 8032 or a SE32 with S077, depending on the flow
rate and the operation chosen.
