Operation and function
16.2.2 SPLTRNG -
Signal split range
Minimum and maximum values of the input signal as a % for which the valve runs through the entire stroke
range.
Factory setting: Lower signal range split = 0 %; Upper signal range split = 100 %
Lower value split range: Input the minimum value of the input signal as a %
Adjustment range: 0 – 75 %
Upper value split range: Input the maximum value of the input signal as a %
Adjustment range: 25 – 100 %
Use this function to limit the position set-point value range of the positioner by specifying a minimum and a
maximumvalue.Thismakesitpossibletodivideaunitsignalrangethatisused(4–20mA,0–20mA)into
several positioners (without or with overlapping). This allows several valves to be used alternately or, in the
case of overlapping set-point value ranges, simultaneously as actuators.
To split a unit signal range into two set-point value ranges:
Valve stroke [%]
Set-point value [mA]
(INPUT)
Set-point value range
Positioner 1
Set-point value range
Positioner 2

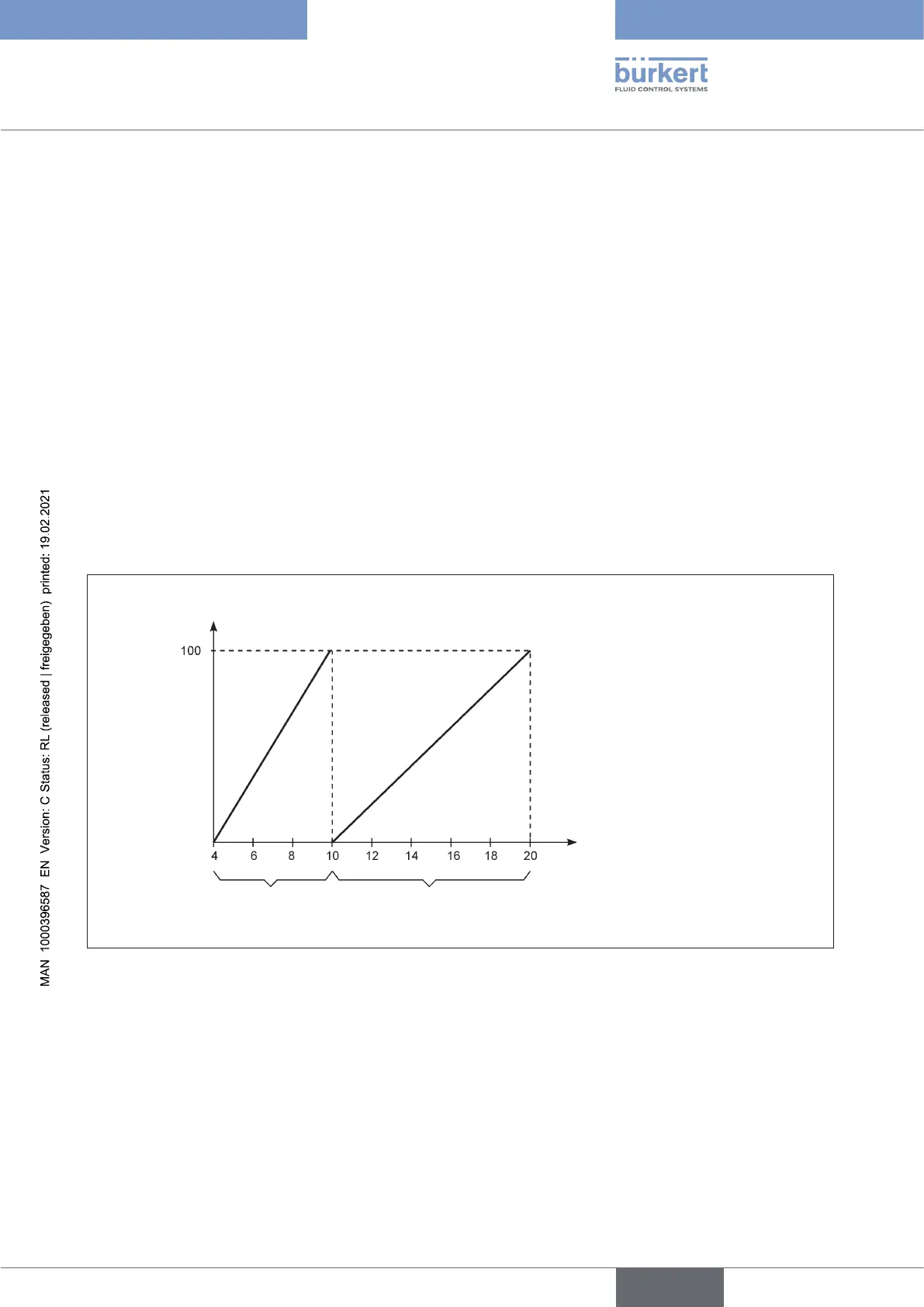

Figure 52: SPLTRNG graph
