System description
5.6 Interfaces of the positioner
Input for position
set-point value
5)
4 – 20 mA
0 – 20 mA
3- or 4-wire
6)
Digital input
24 V DC
Communications
interface
Positioner
Analog
position feedback
(variant)
Inputs Outputs
Power
Operation
5) Or via eldbus communication (büS/CANopen or IO-Link)
6) Factory setting is 4 – 20 mA, 4-wire

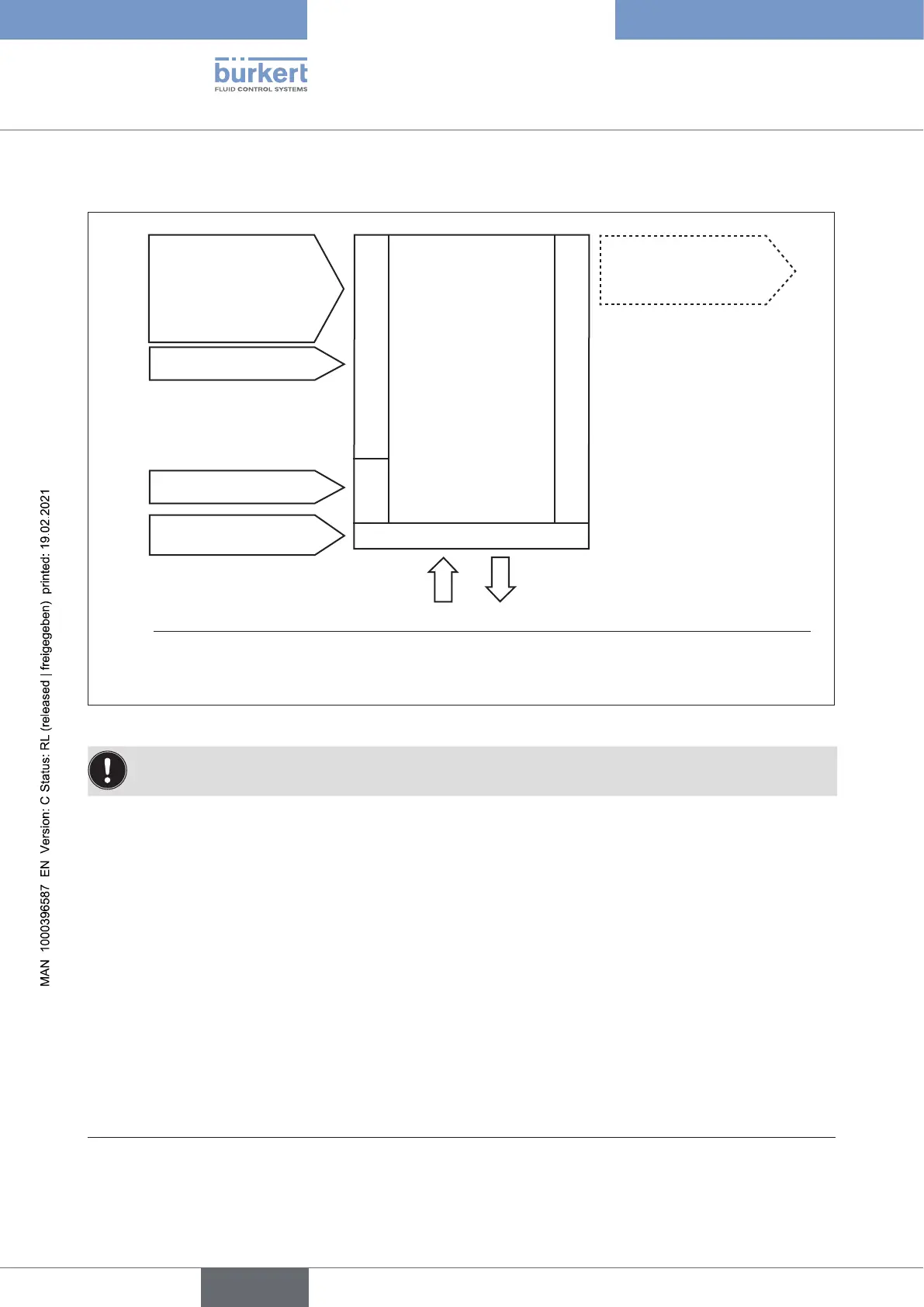

Figure 6: Interfaces
ThepositionerType8694mustbeoperatedin3-wireor4-wireconnection,i.e.thepower(24VDC)
issuppliedseparatelyfromtheset-pointvaluesignal.
• Input for position set-point value
7)
(4 – 20 mA corresponds to 0 – 100 %
(depending on position of DIP switch 1)).
• Digital input
7)
If a voltage > 10 V is applied, safety position (SAFEPOS) is activated, i.e. the valve is moved to the safety
position (factory setting, can be changed with communications software).
• Analog position feedback (variant)
7)
The position of the valve can be transmitted via an analog 4 – 20 mA output to the PLC
(4 – 20 mA corresponds to 0 – 100 %).
7) Only for variant without eldbus communication.
