Electrical installation, IO-Link

11 ELECTRICAL INSTALLATION, IO-LINK

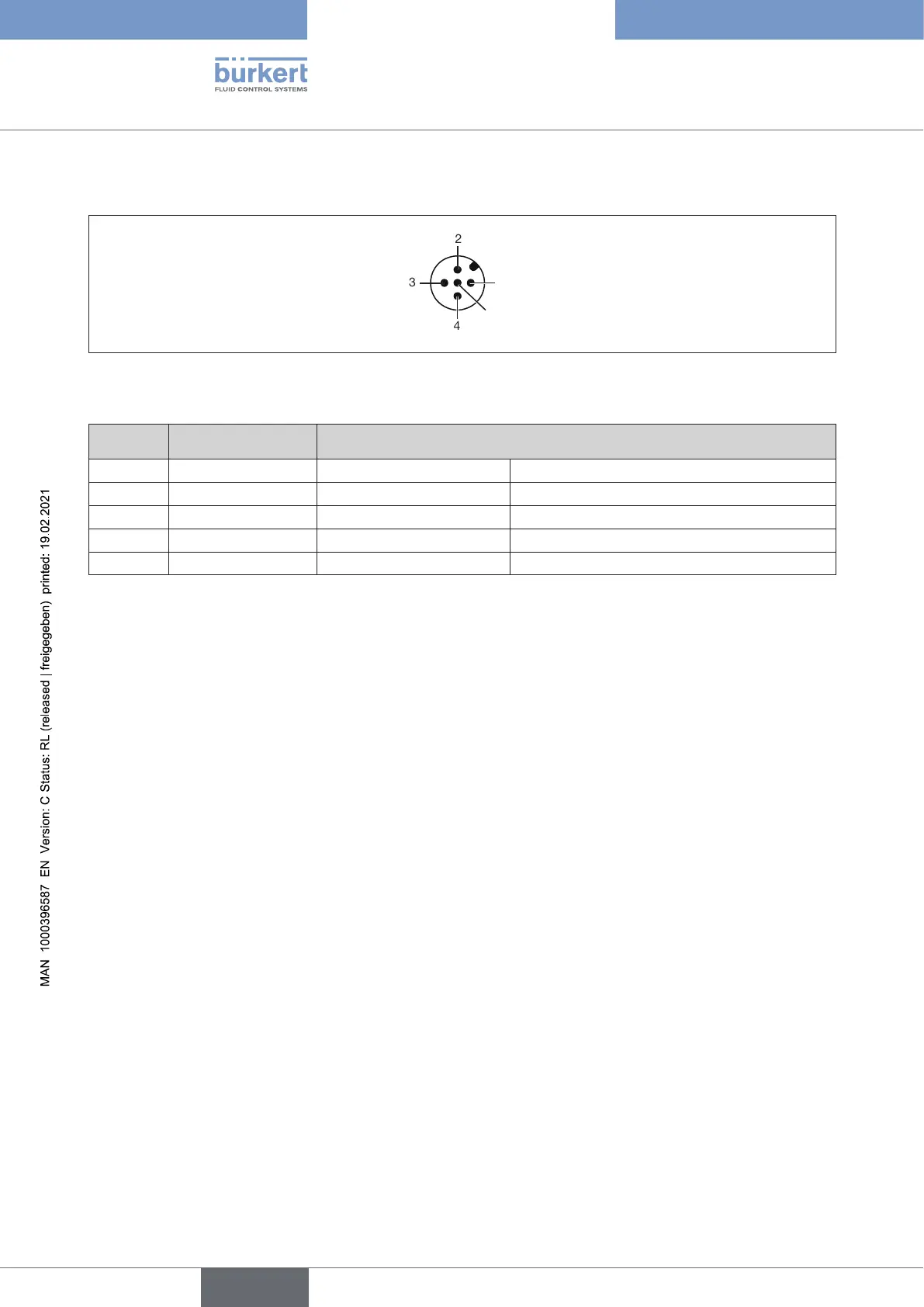

Figure 40: Pin assignment, Port Class B

Pin Designation Conguration

1 L + 24 V DC System supply

2 P24 24 V DC Actuator supply

3 L – 0 V (GND) System supply

4 C/Q IO-Link

5 M24 0 V (GND) Actuator supply

Table 27: Pin assignment

english

Type 8694 REV.2
