Electrical installation 24 V DC
10.3 Electrical installation with cable gland
DANGER!
Riskofelectricshock.
▶ Beforeworkingonequipmentordevice,switchothepowersupplyandsecuretopreventreactivation.
▶ Observe applicable accident prevention and safety regulations for electrical equipment.
ATTENTION!
Breakageofthepneumaticconnectionpiecesduetorotationalimpact.
▶ When unscrewing and screwing in the body casing, do not hold the actuator of the process valve but
the basic housing.
→ The screw-type terminals can be accessed by unscrewing the body casing (stainless steel).
Body casing
Basic housing
Actuator
Transparent cap

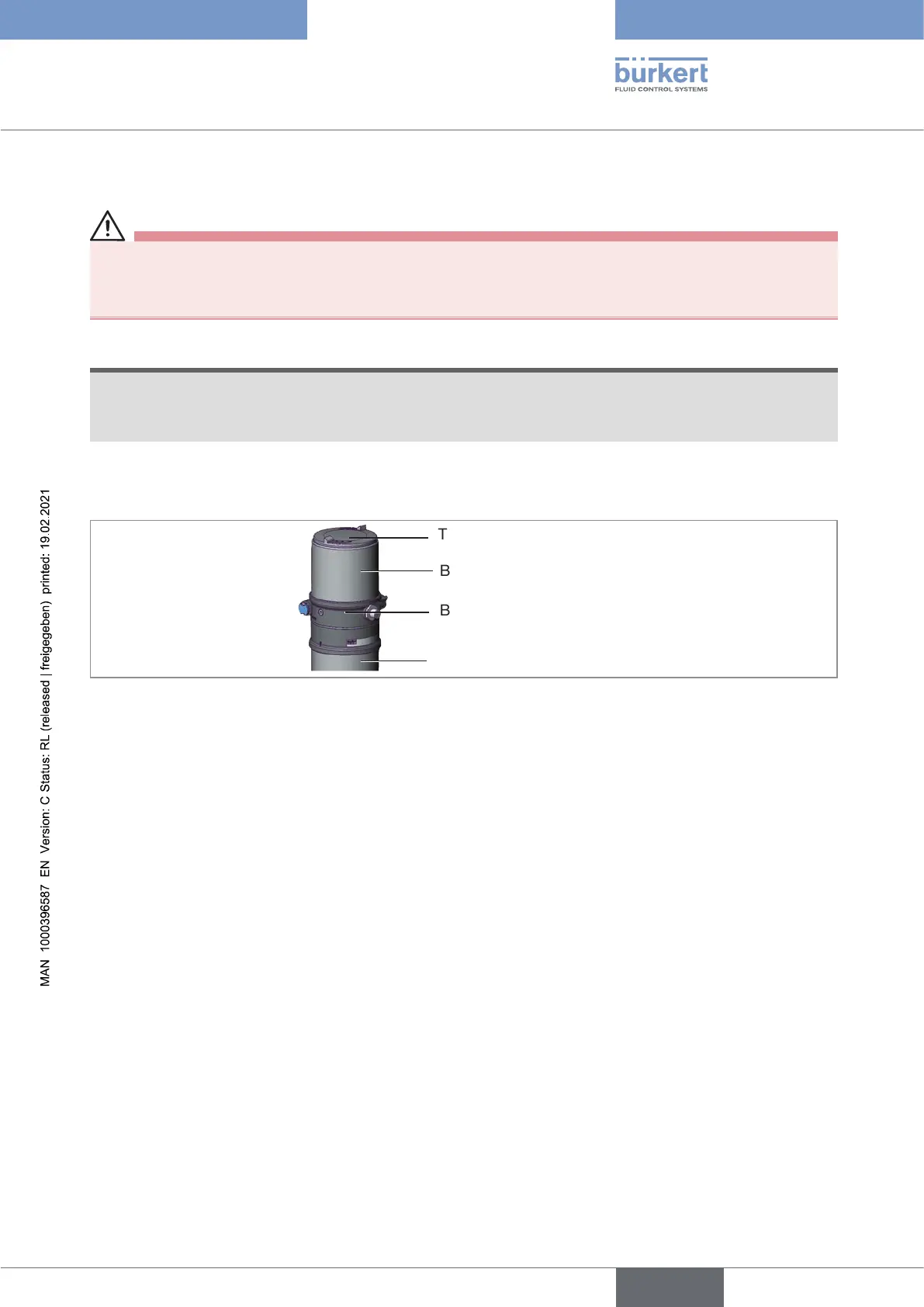

Figure 37: Open positioner
→ Push the cables through the cable gland.
