84
Disassembly
2. Electrical connection
DANGER!
Riskofelectricshock.
▶ Beforeworkingonequipmentordevice,switchothepowersupplyandsecuretopreventreactivation.
▶ Observe applicable accident prevention and safety regulations for electrical equipment.
Circular plug-in connector:
→ Loosen the circular plug-in connector.
Cable gland:
→ Open the positioner: unscrewing the body casing in an anticlockwise direction.
→ Unscrew the screw terminals and pull out cables.
→ Close the positioner.
3. Mechanical connection
→ Loosen the fastening screws.
→ Remove the positioner upwards.
Pneumatic
connections
Positioner
Actuator
Fastening
screws (2x)
Pneumatic
connection to
the actuator
Actuator
Electrical con-
nection cir-
cular plug-in
connector
Series 21xx
Series 20xx

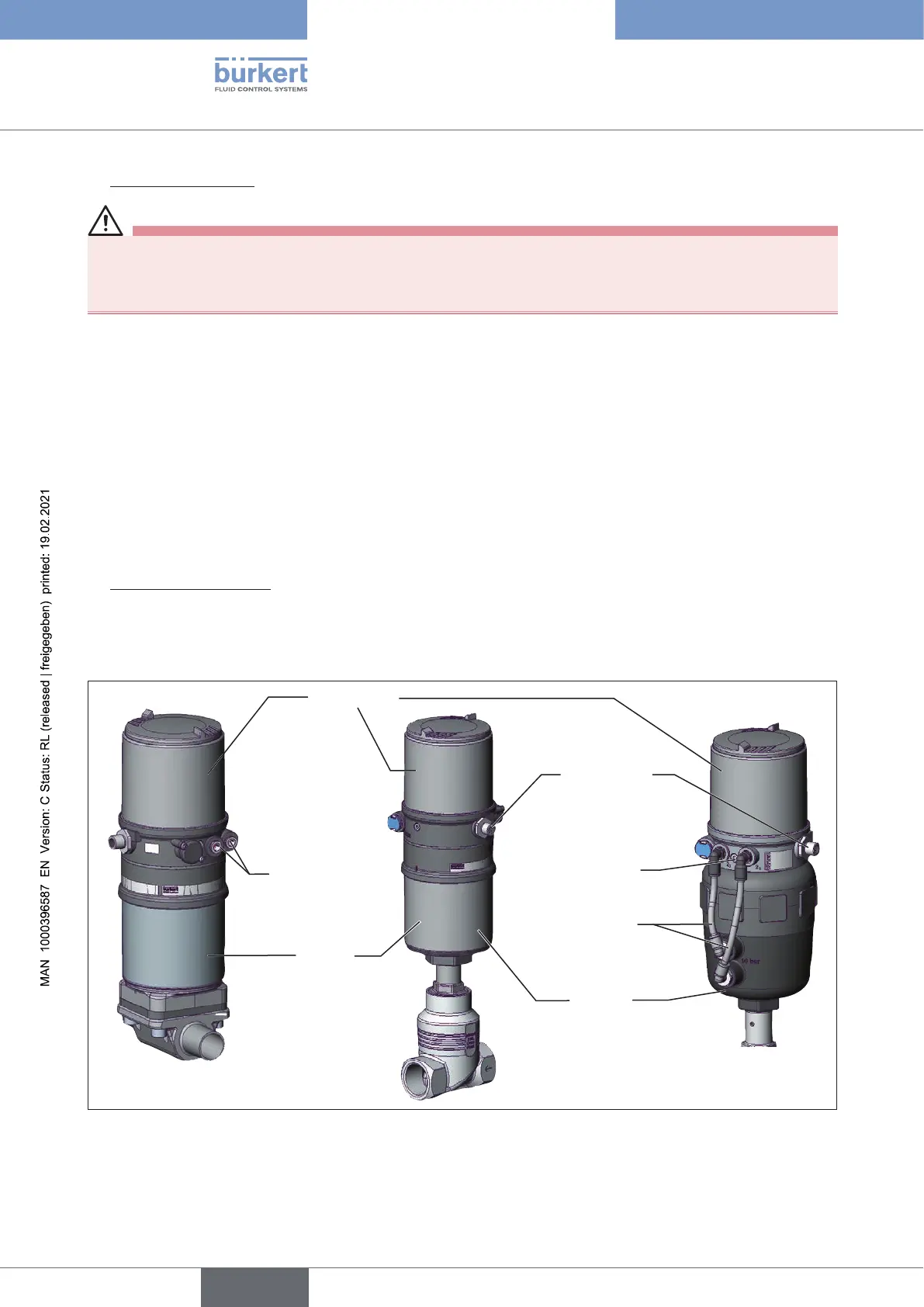

Figure 57: Disassembly the positioner
english
Type 8694 REV.2
