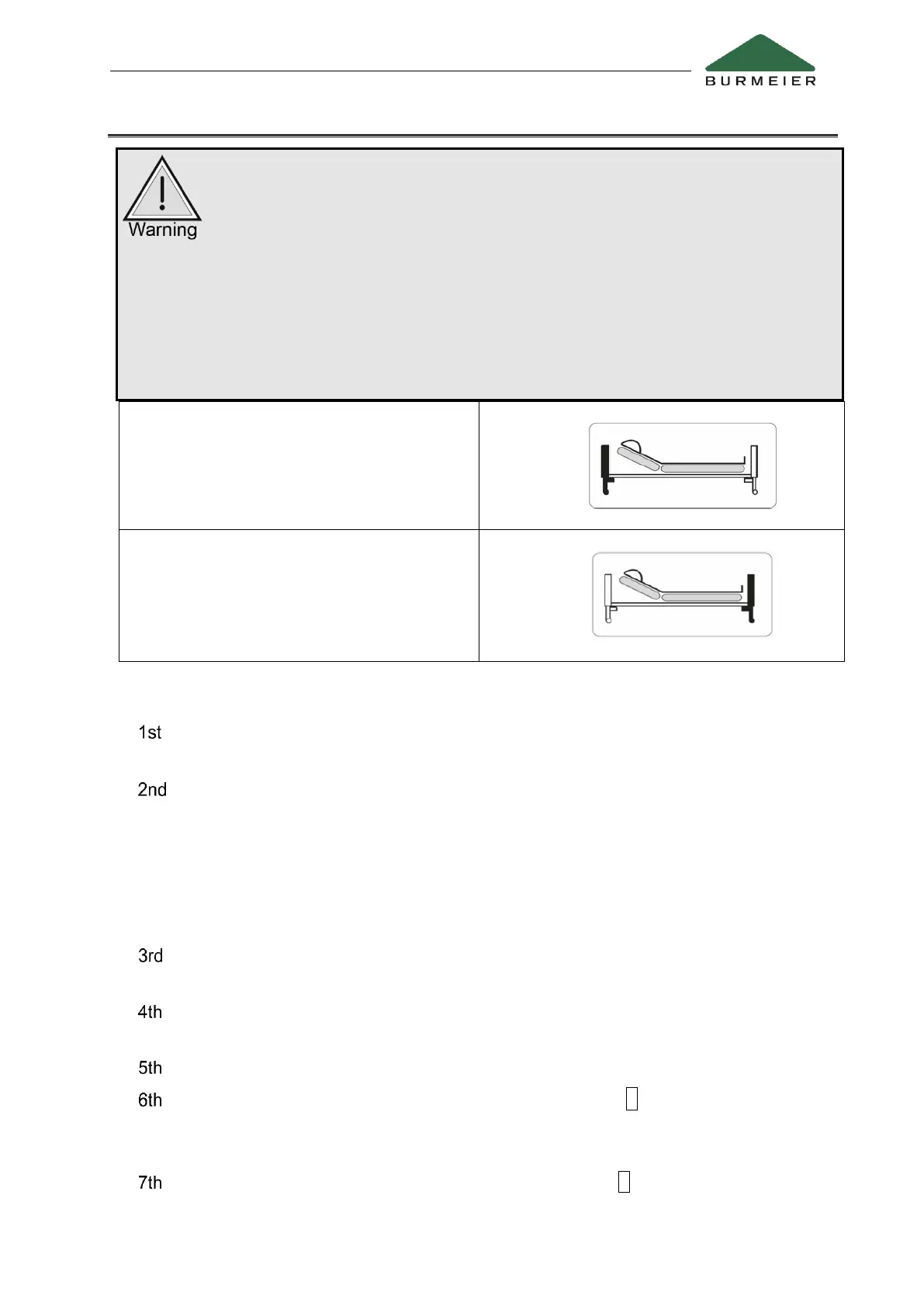

Danger due to Trendelenburg position
Failure to comply could result in serious injury to the person lying in bed.
The two chassis [1] and [9] should not be confused! A mix-up will lead to an
unwanted Trendelenburg position instead of a reverse-Trendelenburg
position.
• Take care not to confuse the two chassis when assembling the bed.
• Observe the different labels for identification of the two chassis. These
are located centrally on the cross tubes, near the holder for the drive
motor and centrally on the cross tubes of the mattress base frame.
Proceed as follows to attach the two chassis to the mattress base frame:
Remove both chassis from the storage aid
− To do so, pull the chassis out of the storage aid.
Connect the head section chassis [9] to the mattress base frame [17]. Make sure
that the adhesive labels match!
− To do this, lift the mattress base frame at the head end and slide the two
connection pieces of the head section chassis into the tubes of the mattress base
frame as far as they will go.
− Pull the head section chassis back out by approximately 10 mm until the holes
are aligned one above the other.
Fix the mattress base frame to the head section chassis with 2 long screws (M6x60,
supplied with the bed).
Repeat steps 2 and 3 with the foot section chassis [1].
Check to ensure that the two chassis are securely fixed to the mattress base frame.
Remove the plastic screws that secure the two chassis (see 1).
− Use a 5 mm Allen key to remove them.
− Save the plastic screws in case they are needed at a later date.
Use the supplied plugs to seal the holes in the chassis (see 2).
Note: The plugs can be found in the bag with the instruction manual.
