3.8 ELECTRICAL CONNECTION
Before you connect the cables, remove the packaging material from all the cables.
The 4 drive motors are supplied with electricity via the power adapter/power plug. All the
drive motor plugs are connected to the control unit during production and are secured
with a cover to prevent them from being unintentionally unplugged. The two plugs at the
ends of the spiral cable must be inserted into the correct lift motors on the head section
chassis and foot section chassis. The plug for the thigh rest motor must be plugged into
the thigh rest motor.
When routing the connector cables, ensure that they cannot be damaged by any moving
parts of the bed. To ensure that all the cables are laid safely and securely, the underside

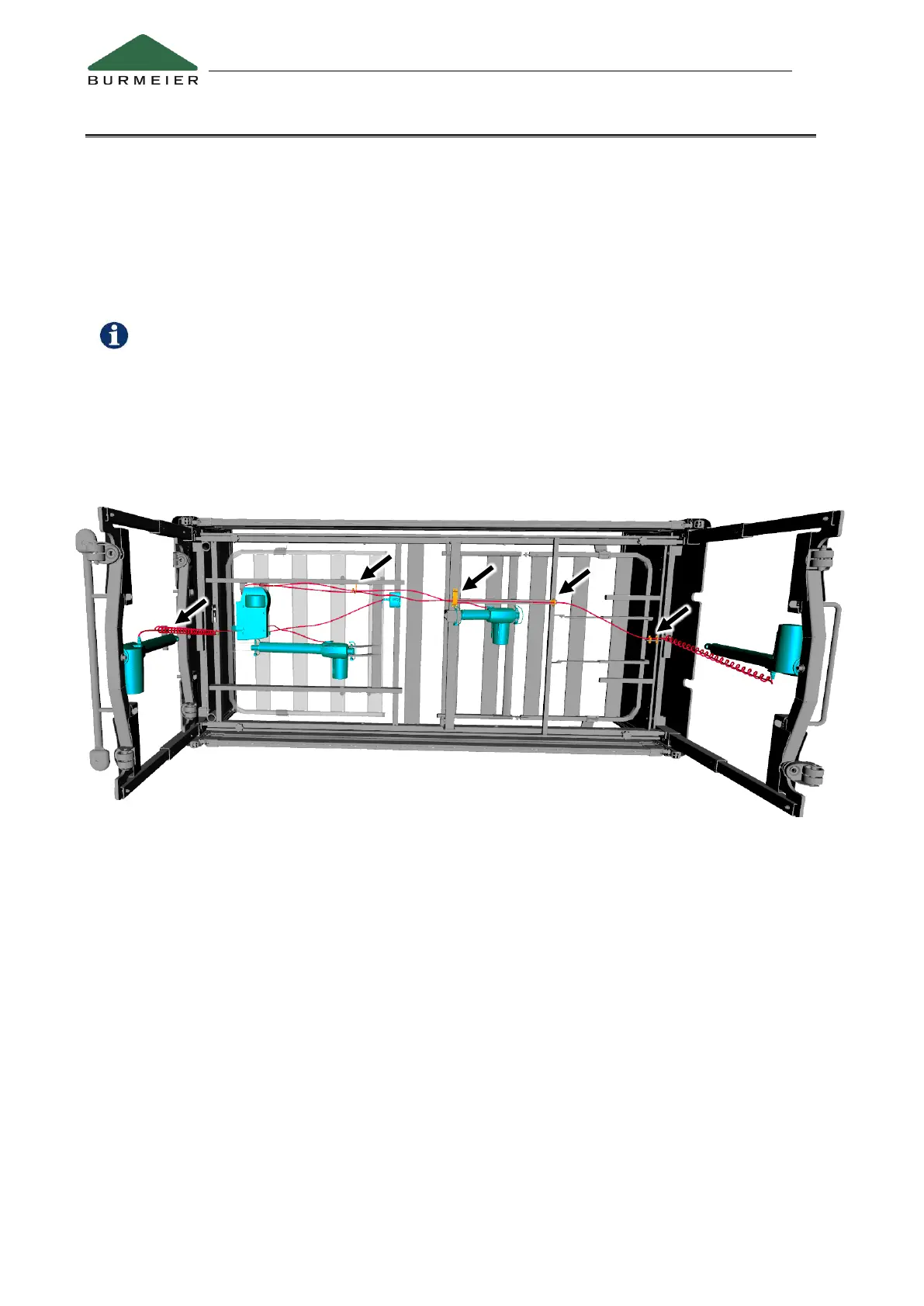

of the mattress base is equipped with cable holders (see arrows in picture).
Use only these designated cable holders when routing and fixing the connector cables.
