Instruction Manual for Lenus Care Bed
Page 2

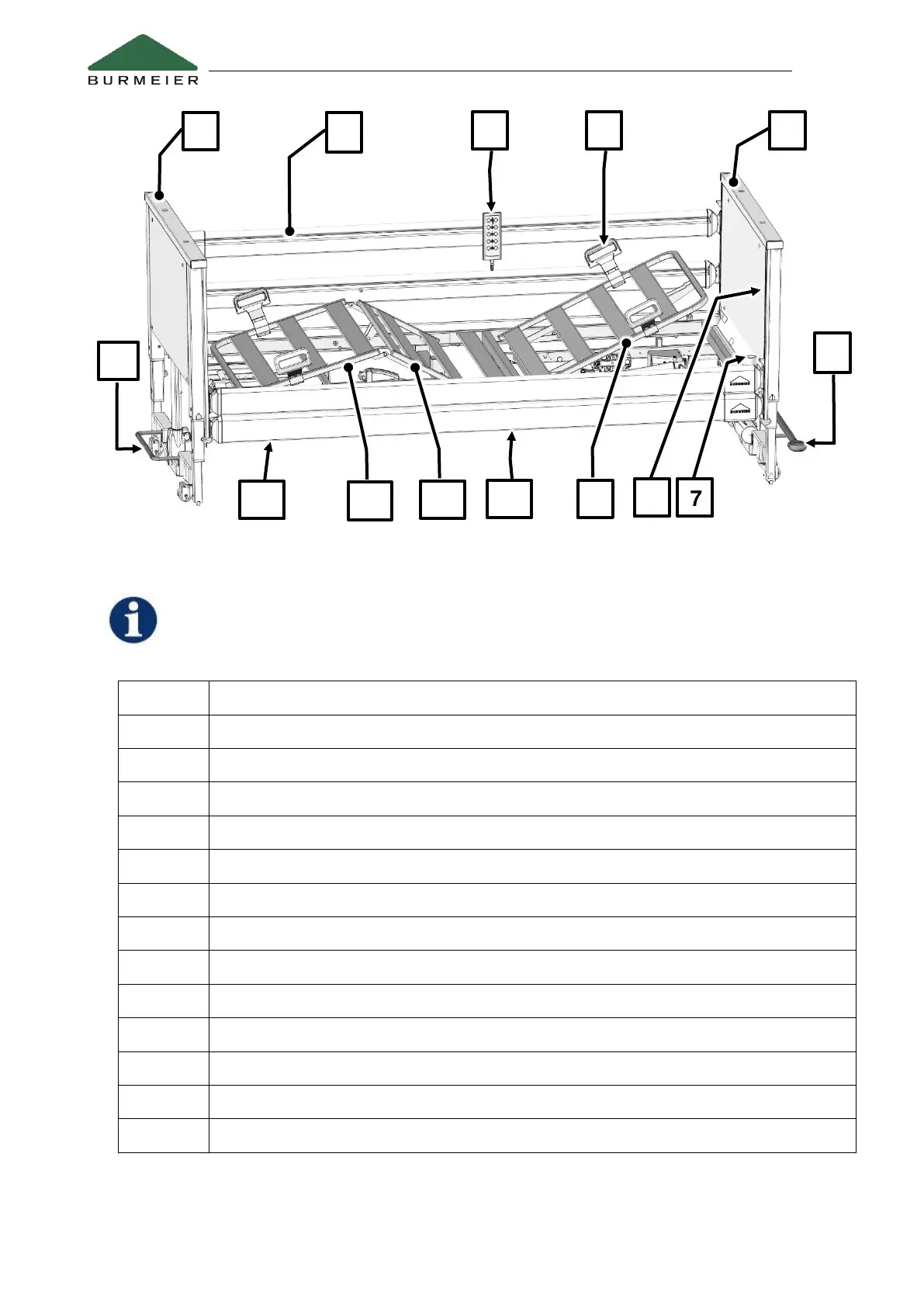

In this instruction manual, numbers and letters that appear in round brackets () and
bold type refer to the care bed’s operating devices as shown in this and the
following images.
1
Foot section chassis
2
Bars of full-length safety side (DSG)
3
Handset
4
Mattress retainer bar (4x)
5
Head section chassis
6
Individual axle braking (brake lever version, head end)
7
Patient lifting pole sleeves (2x)
8
Guide rails (4x)
9
Backrest
10
Side panel (concealed in the picture)
11
Thigh rest
12
Lower leg rest
13
Screw (2x, concealed in the picture), for releasing the bed extension
14
Individual axle braking (brake bar version, foot end)
