burmeier Lenus - Page 75

Instruction Manual for Lenus Care Bed
Page 75

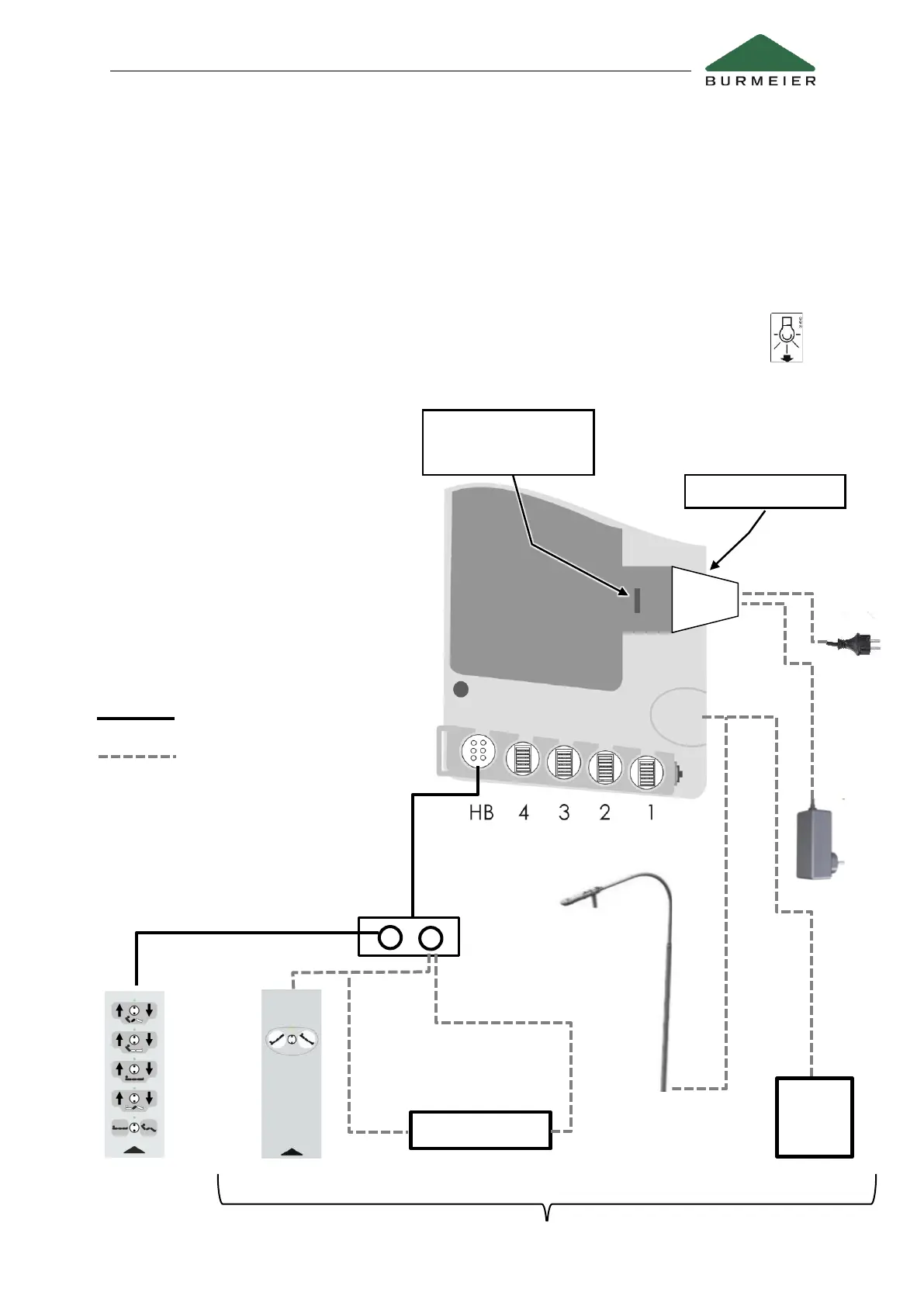

Assignment of the “HB” socket:
Depending on the existing additional electrical equipment, the following items can be
connected here:
• Handset only; handset with under bed light (UBL)
• Via junction box MJB2: additional handset for setting Trendelenburg/reverse-
Trendelenburg position
• Via junction box MJB8 L: Reading lamp; additional handset for setting
Trendelenburg/reverse-Trendelenburg position
Please note: Plug the reading lamp only into the socket marked →
Additional components mentioned above can be connected to any socket.
1 = Backrest motor
2 = Head section height motor
3 = Thigh rest motor
4 = Foot section height motor
HB = OpenBus
®
input:
Handset, various/ additional component
junction box
Input =
24V cable connection from
external power adapter,
fixed, or 230V mains cable,
detachable
Option
al
Position of red
securing clip
Input 24V/230V
UBL
MJB2
Battery
: Standard
: Optional equipment
