3 Operating modes
CAUTION: N1471 MUST BE USED ONLY IN CRATES WITH FORCED COOLING AIR FLOW!
Modul e control ca n ta ke pl ace either loca l ly, or remotel y, via USB or RS485 (s ee § 3.4).
3.1 Programmable parameters
3.1.1 Boards parameters

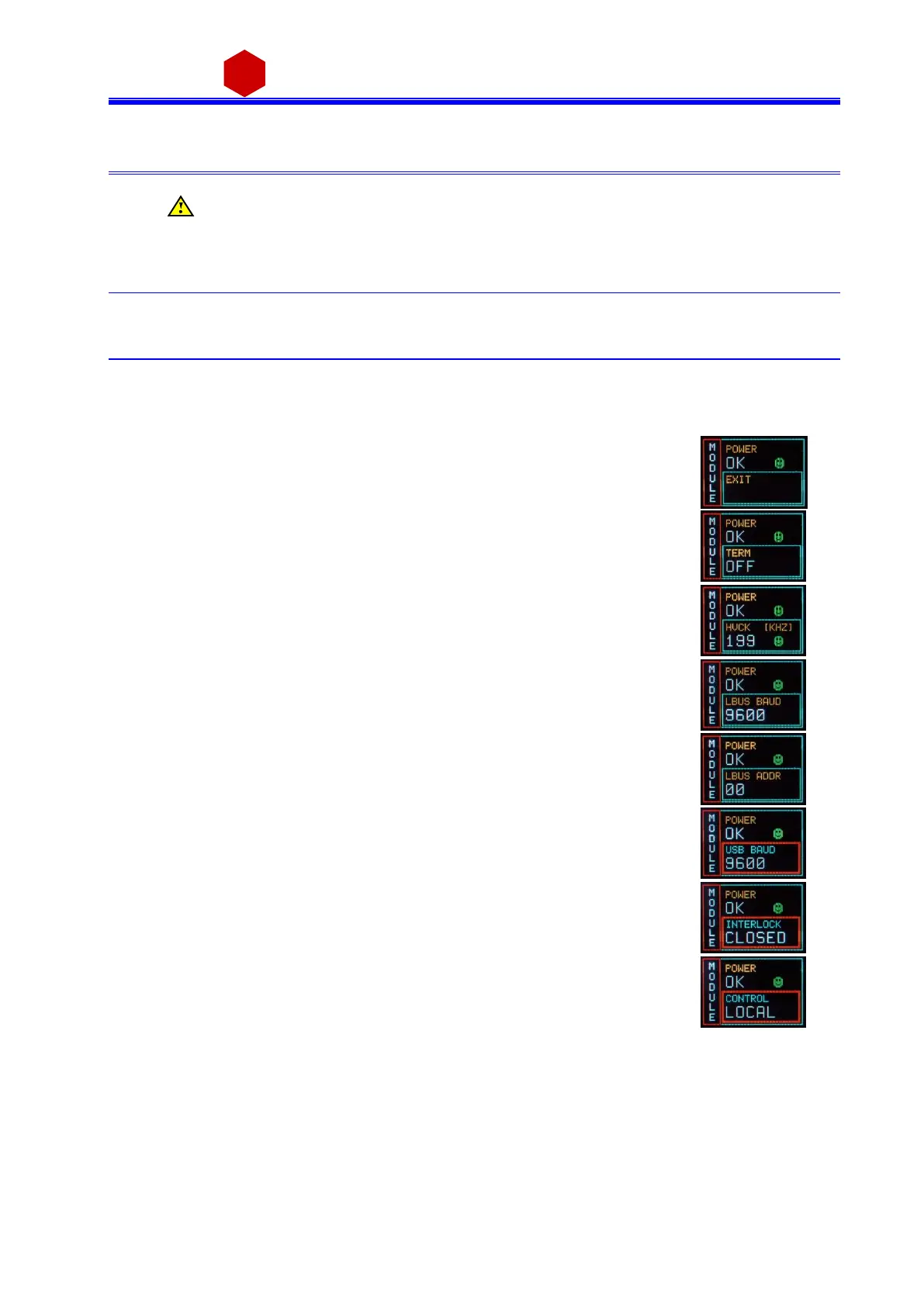

General board parameters (CONTROL can be operated both in LOCAL a nd REMOTE mode; other moni tor a nd
settings are all owed in LOCAL mode only; see § 3.2) include:
Parameter:
Function:
Display:
Power
(Monitor)
Modul e power supply s tatus
Termi nation
(Monitor)
Local Bus termination status (ON/OFF)
HV Cl ock
(Monitor)
Sync clock frequency (200±10 kHz correct value)
Local Bus
Baud Rate
(Monitor/Set)
9600, 19200. 38400, 57600, 115200 Baud
Local Bus
Address
(Monitor/Set)
Local Bus address for remote communication (0÷31)
USB Baud
Rate
(Monitor/Set)
9600, 19200, 38400, 57600, 115200 Baud
INTERLOCK
(Monitor/Set)
CLOSED / OPEN OPERATION (see § 2.4.3.2)
CONTROL
(Monitor/Set)
REMOTE: the module is controlled remotely; local monitor is a llowed;
LOCAL/REMOTE switch is enabled
LOCAL: the module is controlled locally; remote monitor is allowed
