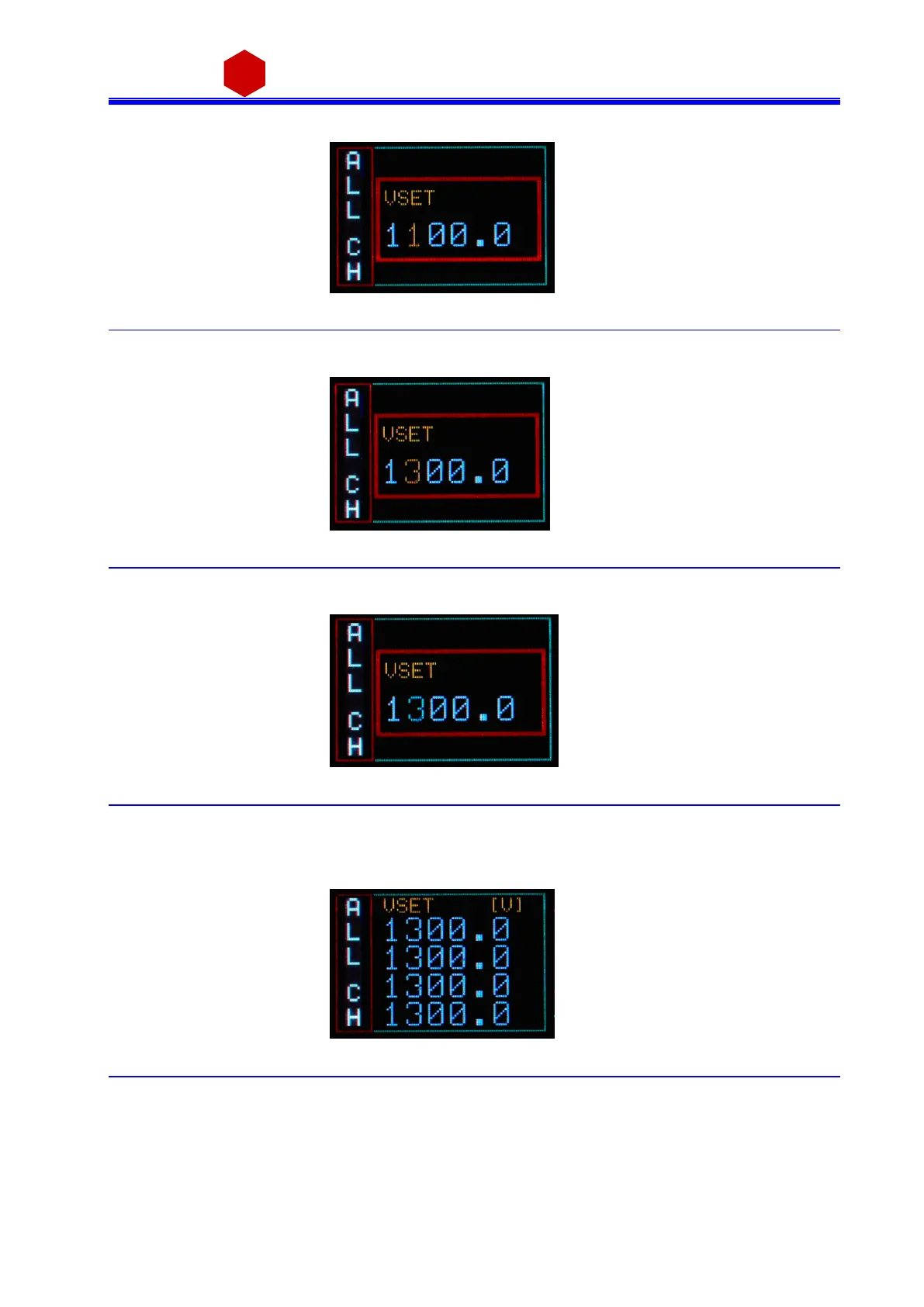

Push the TUNE ROTARY SWITCH: a t thi s point the va l ue di git becomes yellow and can be edited
Fig. 3.23: Group Channel VSET digit access screen
Turn the TUNE ROTARY SWITCH until the di git reaches the des i red value
Fig. 3.24: Group VSET digit adjust screen
Confi rm it by pus hing the TUNE ROTARY SWITCH, the edi ted di gi t returns bl ue
Fig. 3.25: Group VSET digit confirm screen
Once all the digits a re set to the des ired value, turn the TUNE ROTARY SWITCH until the pa rameter na me
returns blue. Push the TUNE ROTARY SWITCH in order to de-select the parameter, the frame returns to blue;
when the parameter is not active, the parameter sta tus of the four channels is s hown.
Fig. 3.26: Channel VSET de-select screen
