3.1.2 Channel settings
For ea ch channel the following parameters can be programmed and monitored either locally or remotely (see §
3.4):

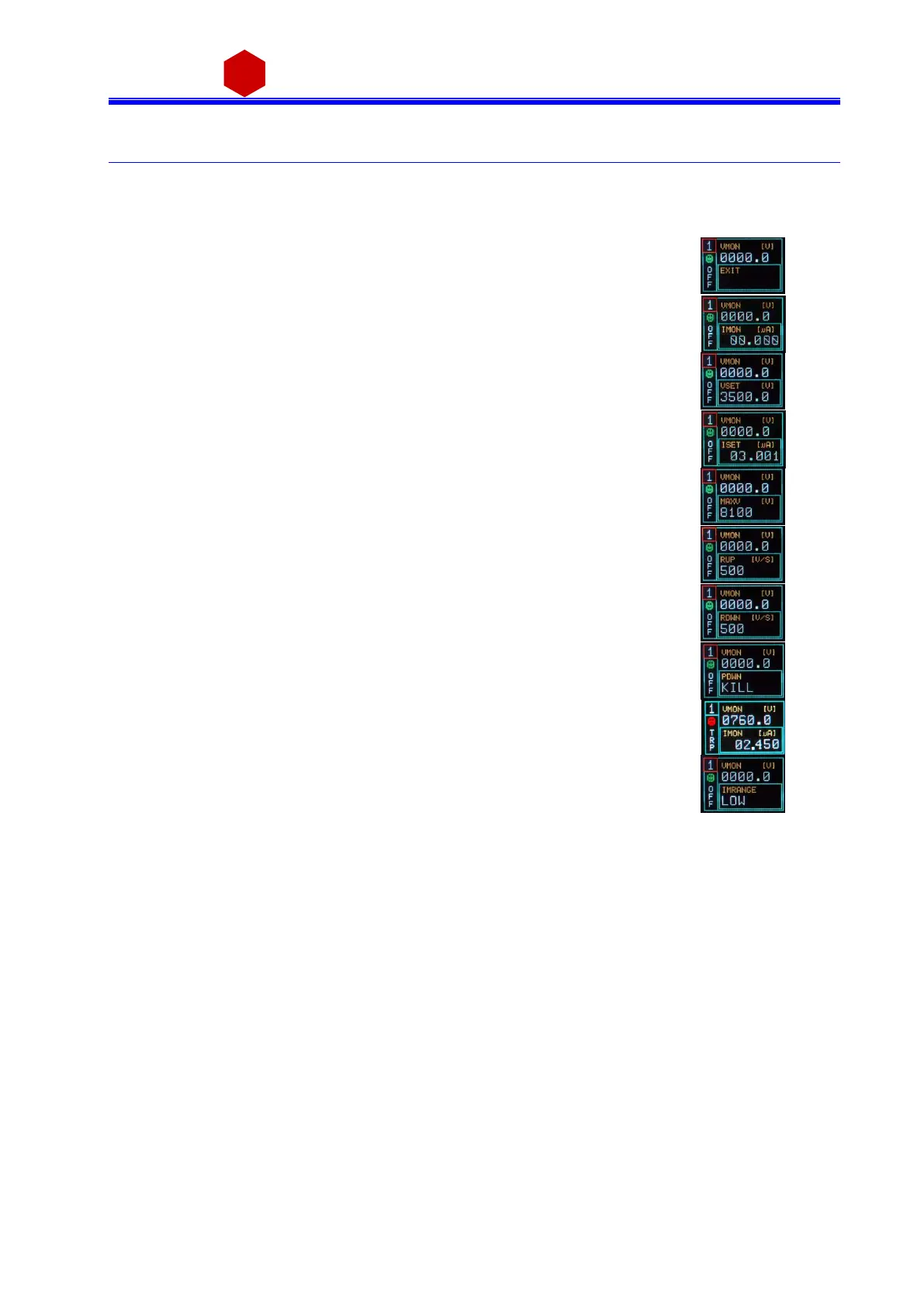

Parameter:
Function:
Unit:
Display:
Vmon
High Voltage Monitored value
Volt
Imon
Current Monitored value
µA
V
set
High Voltage programmed value
Volt
I
set
Current Li mit programmed value
µA
MaxV
Abs olute maximum Hi gh Vol ta ge level that the
cha nnel i s al l owed to rea ch (s ee § 2.7)
V
Ramp-Up
Maximum High Voltage increase rate
V/s
Ramp-Down
Maximum High Voltage decrease rate
V/s
Power Down
Power Down mode after channel TRIP
KILL or RAMP
Trip
Maximum time an "overcurrent" is allowed to last
expres s ed in s econds (see § 2.7)
s
Imon Ra nge
Current Monitor Zoom 10x (optional)
H or L
