Calix ODC-80 Installation Guide
39
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© 2001-2003 Calix. All Rights Reserved.
7.
Use an insulated wrench to connect the battery leads
according to the wiring diagram on the inside of the front
battery compartment door.

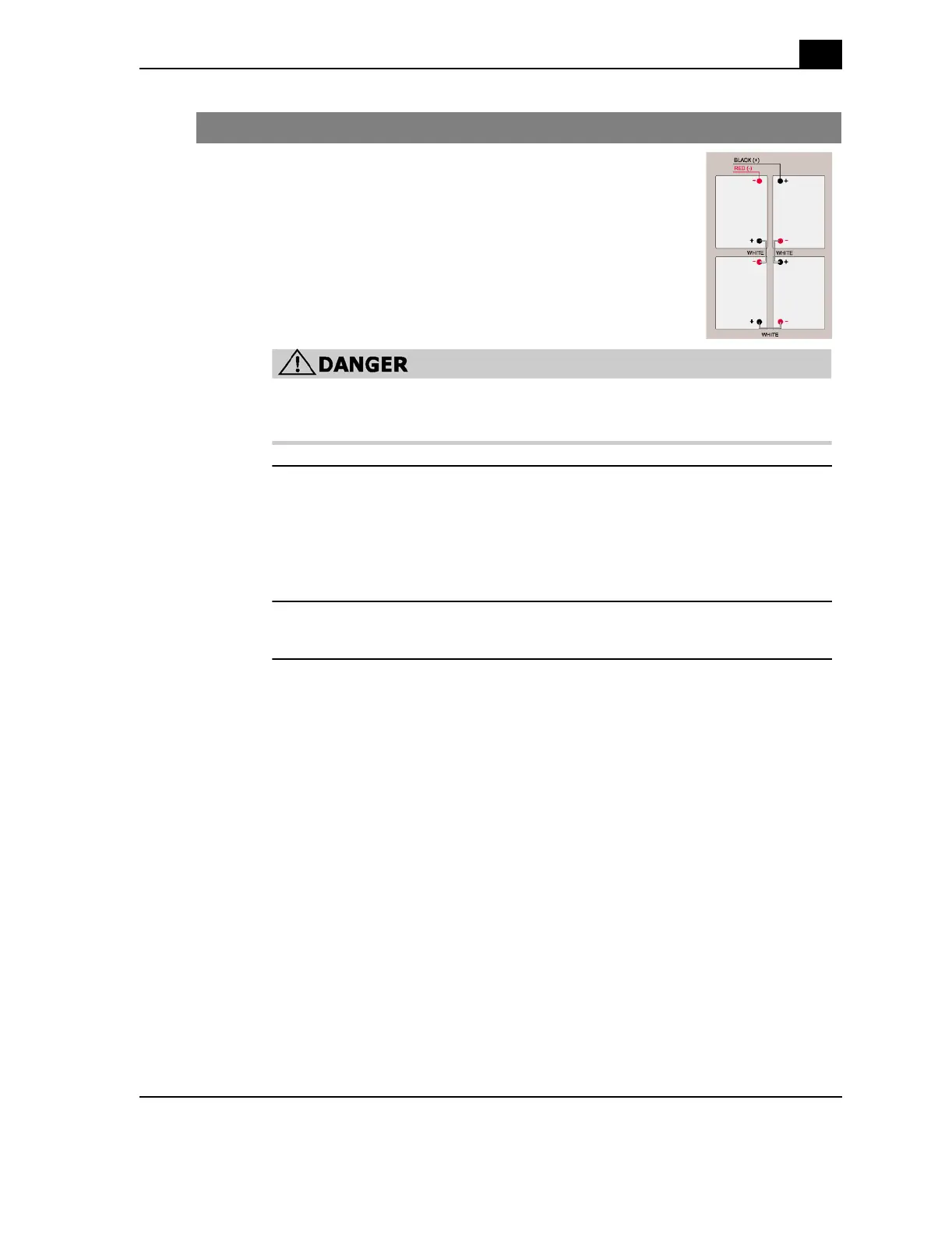

Click the diagram to the right to see a sample of the wiring
diagram for one battery tray.
DANGER! The black battery lead is positive and the red battery lead is
negative.
8.
Using a volt meter test the battery connection between the negative and
positive battery leads.
a. place the red voltmeter lead on the red negative battery lead
b. place the black voltmeter lead on the black positive battery lead
c. verify that the volt meter reads between -46 and -54 VDC
9.
Set the battery breaker switch for each drawer to ON.
