Calrec TYPE R - Page 103

103

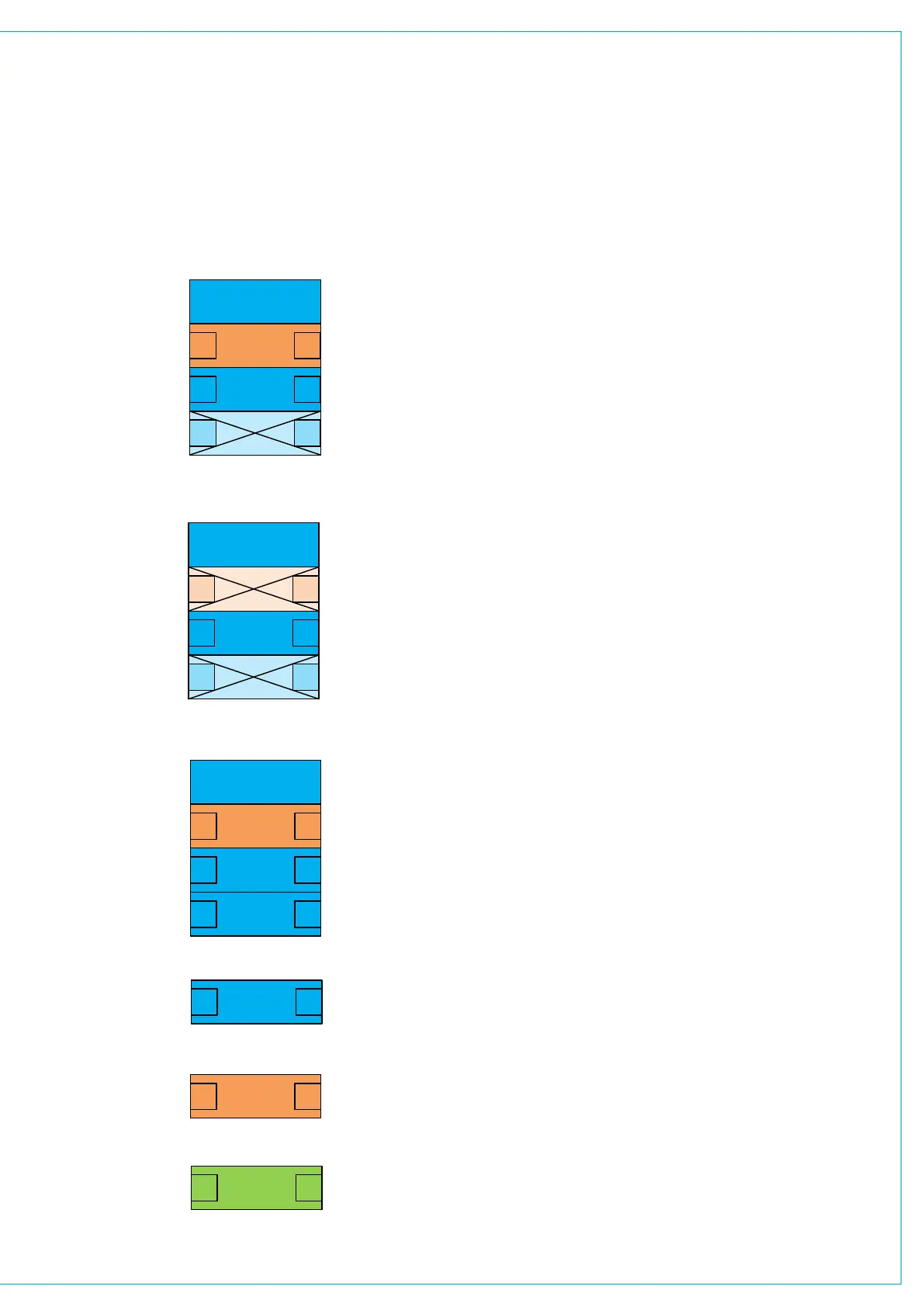

Key for example diagrams.
1. Type R Core with Calrec Connect stream management server installed, 1 AoIP/AES67 Interface card.
TypeR Core
Pri
CONNECT
Server
AoIP #1
CH 1-256
A B
AoIP #2
CH 257-512
A B
A B
Connect stream manager connected to network
via the network Core Surface connections.
1st AoIP/AES67 Interface card fitted to Core
2. Type R Core without Calrec Connect stream management server installed, 1 AoIP/AES67 Interface card fitted.
1st AoIP/AES67 Interface card fitted to Core
TypeR Core
Pri
CONNECT
Server
AoIP #1
CH 1-256
A B
AoIP #2
CH 257-512
A B
A B
3. Type R Core with Calrec Connect stream management server installed, 2 AoIP/AES67 Interface cards.
TypeR Core
Sec
CONNECT
Server
AoIP #1
CH 1-256
A B
AoIP #2
CH 257-512
A B
A B
Connect stream manager connected to network
via the network Core Surface connections.
1st AoIP/AES67 Interface card fitted to Core
2nd AoIP/AES67 Interface card fitted to Core
4. Type R IO Box
5. Connect stream manager installed on standalone Windows PC.
6. Connection reserved for network system administration and diagnostics.
Ty peR IO
CH 1-16
A B
CONNECT
Server
A B
System
Admin
A B
