44 TYPE R Radio Production System Fixing Bracket Assembly Instructions
SMALL SOFT PANEL ON DESK STAND (720-999002)
Small Soft panel on desk stand,
fixed 50 deg viewing angle, see
Fig 1.
MU6410 Mounting options using
75mm VESA mount fixing screw
holes.
The Panel may be mounted landscape
or portrait, with or without rubber feet.
Secured with crews or free standing.
Landscape, fixing hole positions,
see Fig2
a) bottom edge 15mm to desk surface
without feet, with feet 20mm.
b) bottom edge 25mm to desk surface
without feet, with feet 30mm.
Stand Base
With stick on feet (supplied).
Without stick on feet screwed down to
desk top with screws (not supplied).
Portrait, fixing hole positions,
see Fig3
a) N/A
b) Bottom edge 15mm to desk surface
without feet, with feet 20mm.

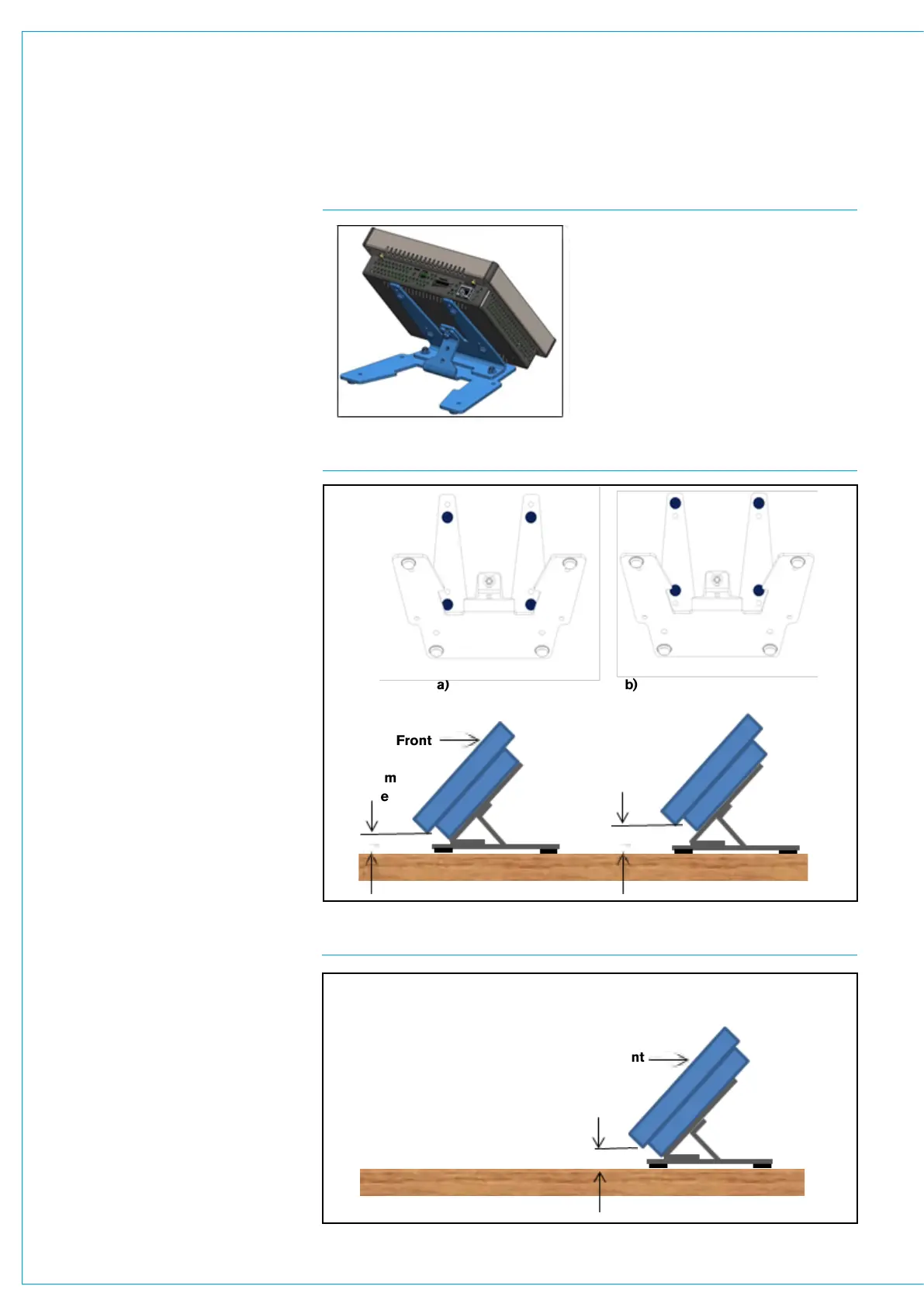

FIG 1 LARGE SOFT PANEL ON DESK STAND
FIG 2 LARGE SOFT PANEL ON DESK STAND LANDSCAPE MODE
Front
Bottom
Edge
FIG 3 SMALL SOFT PANEL ON DESK STAND PORTRAIT MODE
Front
Bottom
Edge
a)
b)
a) N/A b)
