Calrec TYPE R - Mu6411LargeSoftPanel(Lsp); Mu6410SmallSoftPanel(Ssp)

62 TYPE R Radio Production System System Elements
MU6411 Large Soft Panel (LSP)
This panel (shown top right) consists of:-
A large 1280x800 pixel touch sensitive
TFT display for parameter control and
status information and below this display
are 6 rotary controls and illuminating
buttons, which are used in conjunction
with the TFT screen. A Cat5e connector
on the rear edge of the panel provides
both power and data connections.
MU6410 Small Soft Panel (SSP)
This panel (shown bottom right) consists
of:- a smaller 1024x600 pixel touch
sensitive TFT display for parameter
control & status information and below
this display is a rotary control and an
adjacent illuminating button, which are
used in conjunction with the TFT screen.
A Cat5e connector on the rear edge of
the panel provides both power and data
connections.

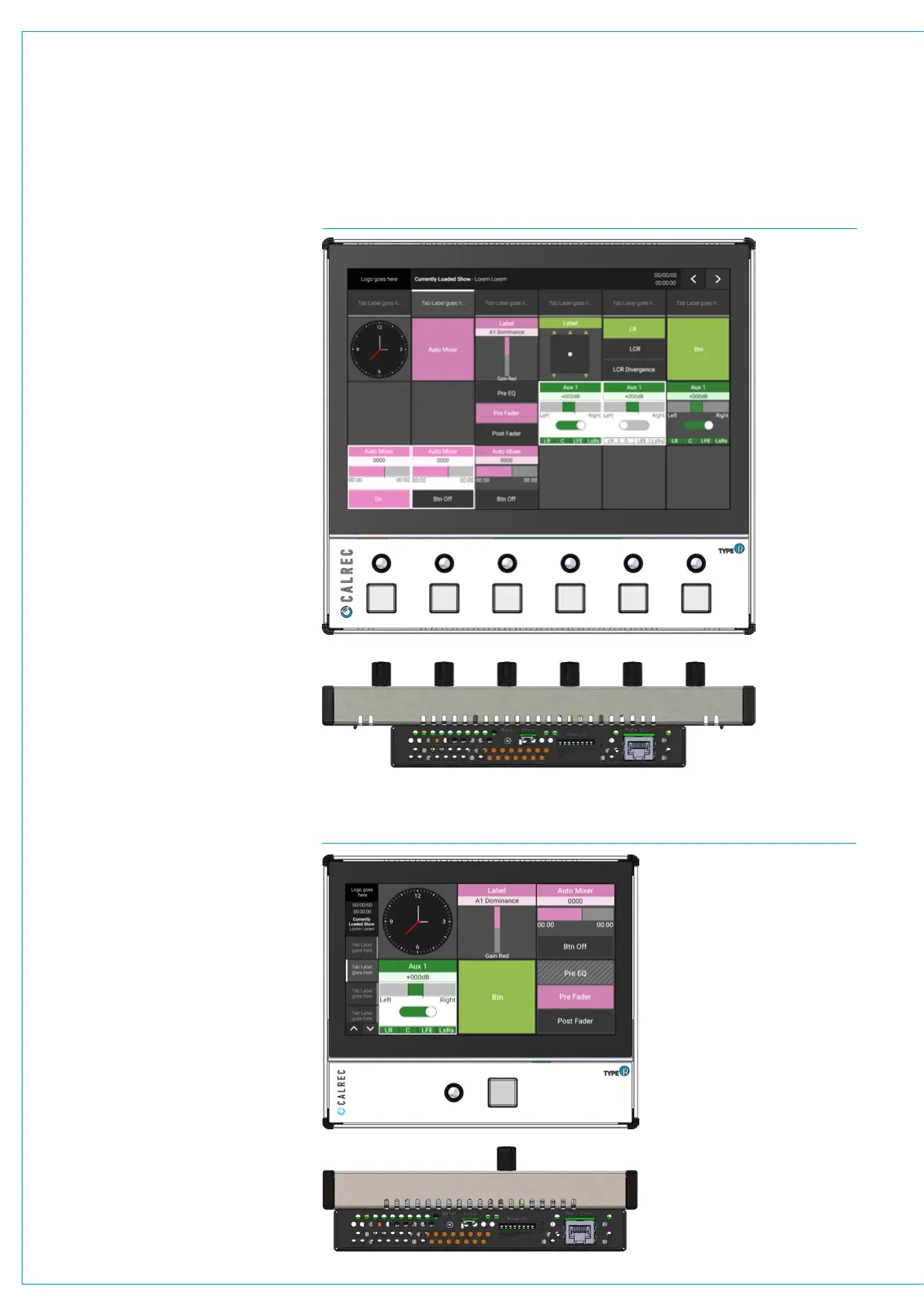

MU6411 TYPE R - LARGE SOFT PANEL TOP & REAR VIEWS
MU6410 TYPE R - SMALL SOFT PANEL TOP & REAR VIEWS
