78 TYPE R Radio Production System
Sync, Audio & GPIO Connections

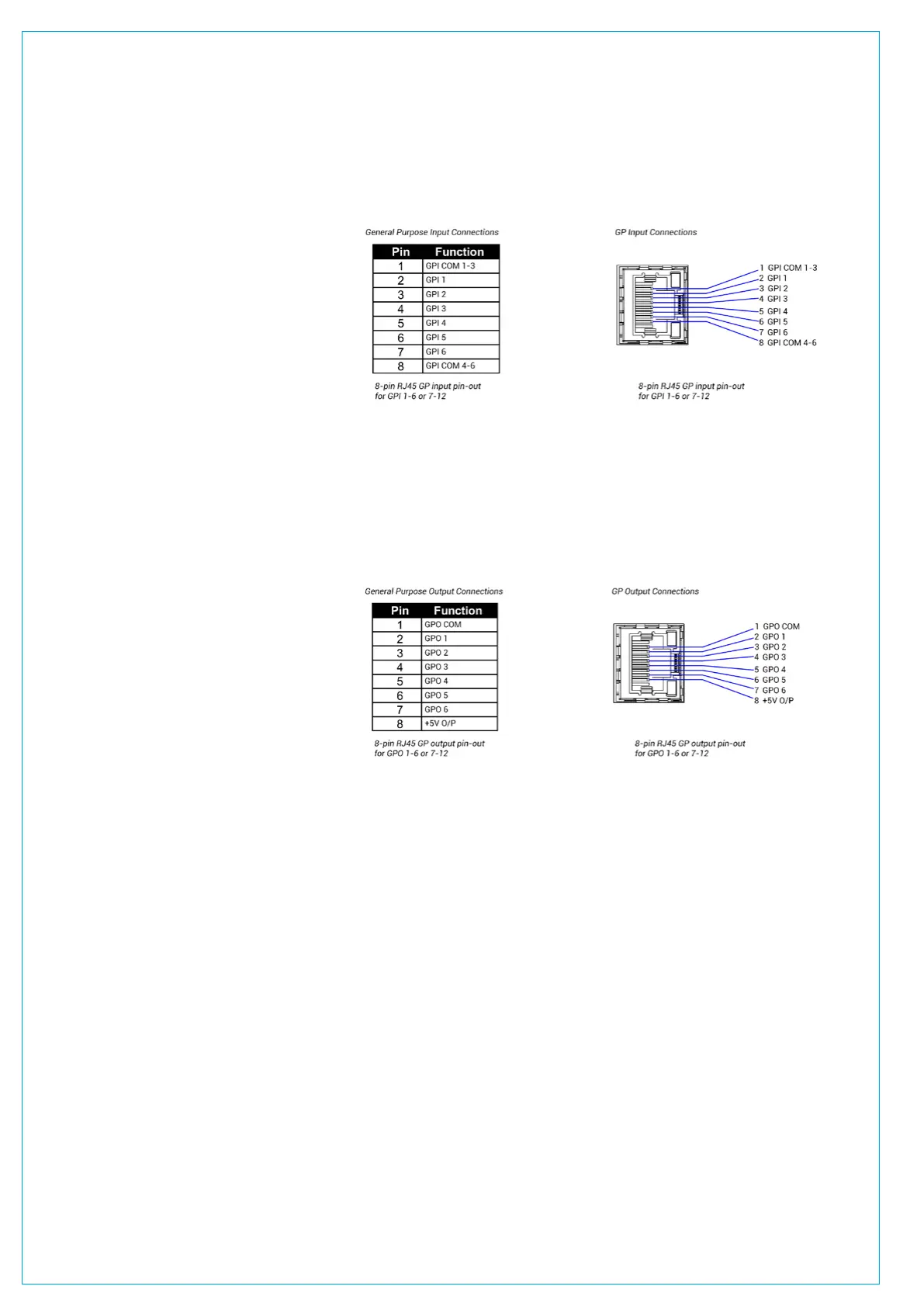

GPI RJ45 type Connector
This connector is used for 6 x GP Inputs.
Note the two Commons split as 2
connections for GPI 1-3 on Pin 1 and GPI
4-6 on Pin 8.
This connector appears on the UR6500
Core Box x 2, AD6501 Combo I/O Box,
AD6502 Analogue I/O Box and the
JD6503 AES I/O Box.
GPO RJ45 type Connector
This connector is used for 6 x GP Outputs.
Note the Common for all the GPO on
Pin 1 and a 5V O/P is made available on
Pin 8.
This connector appears on the UR6500
Core Box x 2, AD6501 Combo I/O Box,
AD6502 Analogue I/O Box and the
JD6503 AES I/O Box.
