64 TYPE R Radio Production System System Elements
OPTIONAL AUDIO I/O INTERFACE BOX LAYOUTS
There are three optional Audio interface boxes available for the Type R which are show in outline below:-
The AD6501 is a 4 AES In with SRC & 4 AES Out, 8 Mic/Line In with 48v & 8 Line out Combo I/O box with 2 x 6.35mm (1/4”)
headphone sockets for monitoring usage and 6 GPI and 6 GPO interfaces.
The AD6502 is a 16 Mic/Line In with 48v and 16 Line out Analogue I/O box with 6 GPI and 6 GPO interfaces.
The JD6503 is an 8 AES In with SRC and 8 AES Out AES I/O Box with 6 GPI and 6 GPO interfaces.
In addition to the 2 x IEC power connectors on the rear of each unit, there is an AoIP interface via RJ45 connectors (with redundant
Primary and Secondary connections) which is connected to a US6525 AoIP device, which allows the I/O to be connected to the core
via an IP switch network.

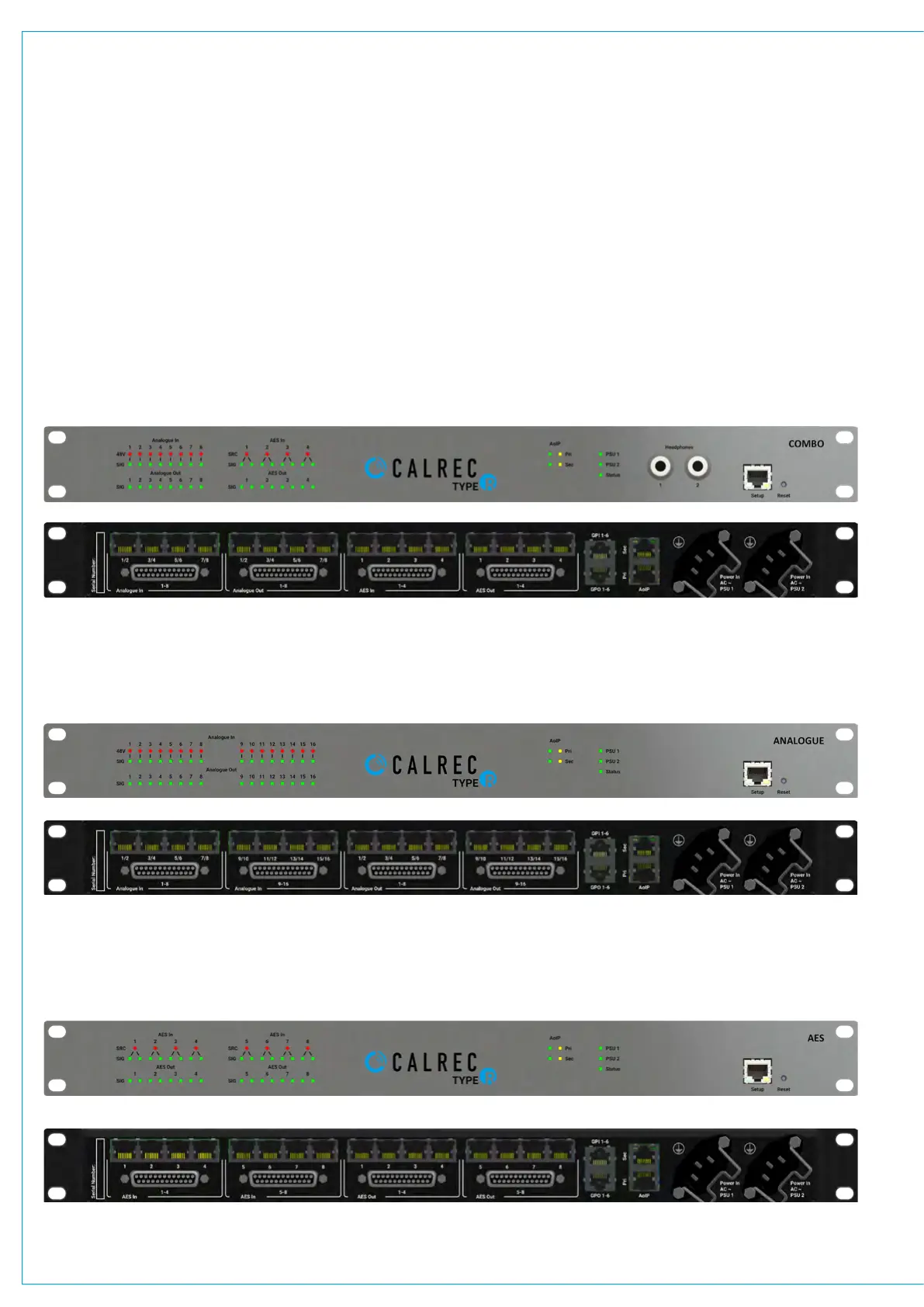

AD6501 Type R - Combo I/O Interface box
AD6502 Type R - Analogue I/O Interface box
JD6503 Type R - AES I/O Interface box
Front
Front
Front
Rear
Rear
Rear
