24 TYPE R Radio Production System Start Up Guide
12 UPDATE SYSTEM SOFTWARE & AOIP DEVICES FIRMWARE
In order to interface the Type R System with Type R AoIP devices, the system software needs to be updated.
The Type R Core software should be running version 1.2 and the AoIP Devices firmware running v.3.2.1-j429_7 for the two AoIP
devices in the core and v.3.2.1-j501_7 for each AoIP I/O box in the AoIP network. If your system has already been updated please
skip this section, if not go to “Update Core software to the latest version” on page 122 and “Update AoIP Device
firmware to the latest version” on page 124 before proceeding.
13. CONFIGURE AOIP PORT & CONNECT SERVER IP ADDRESSES
There are three optional Audio interface boxes types available for the Type R which are show in outline below:-
The AD6501 is a 4 AES In with SRC & 4 AES Out, 8 Mic/Line In with 48v & 8 Line out Combo I/O box with 2 x 6.35mm (1/4”)
headphone sockets for monitoring usage and 6 GPI and 6 GPO interfaces.
The AD6502 is a 16 Mic/Line In with 48v and 16 Line out Analogue I/O box with 6 GPI and 6 GPO interfaces.
The JD6503 is an 8 AES In with SRC and 8 AES Out AES I/O Box with 6 GPI and 6 GPO interfaces.
In addition to the 2 x IEC power connectors on the rear of each unit, there is an AoIP interface via RJ45 connectors (with redundant
Primary and Secondary connections) which is connected to a US6525 AoIP device, which allows the I/O to be connected to the core
via an IP switch network.

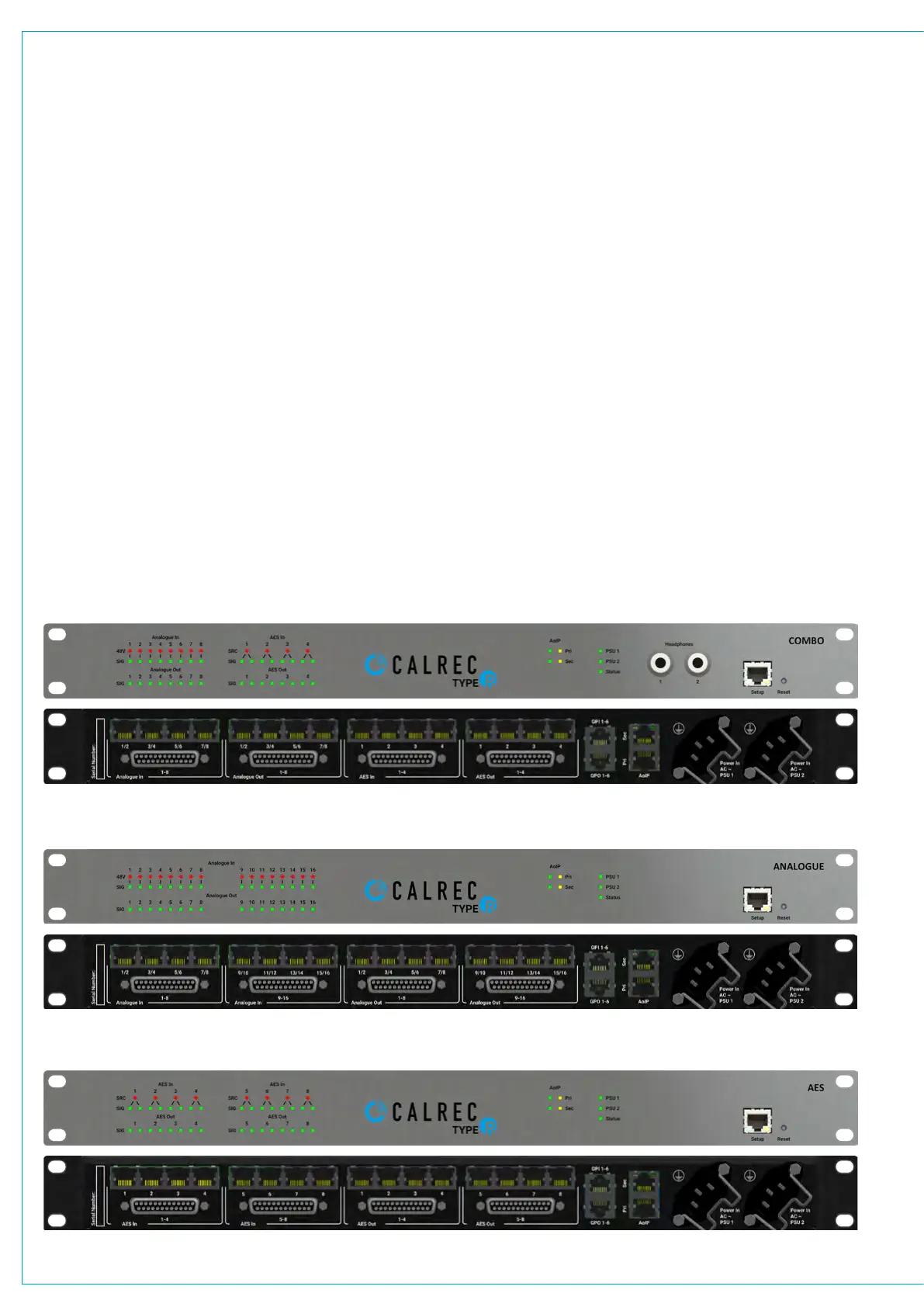

AD6501 Type R - Combo I/O Interface box
AD6502 Type R - Analogue I/O Interface box
JD6503 Type R - AES I/O Interface box
Front
Front
Front
Rear
Rear
Rear
To Next Page
