74 TYPE R Radio Production System Sync, Audio & GPIO Connections

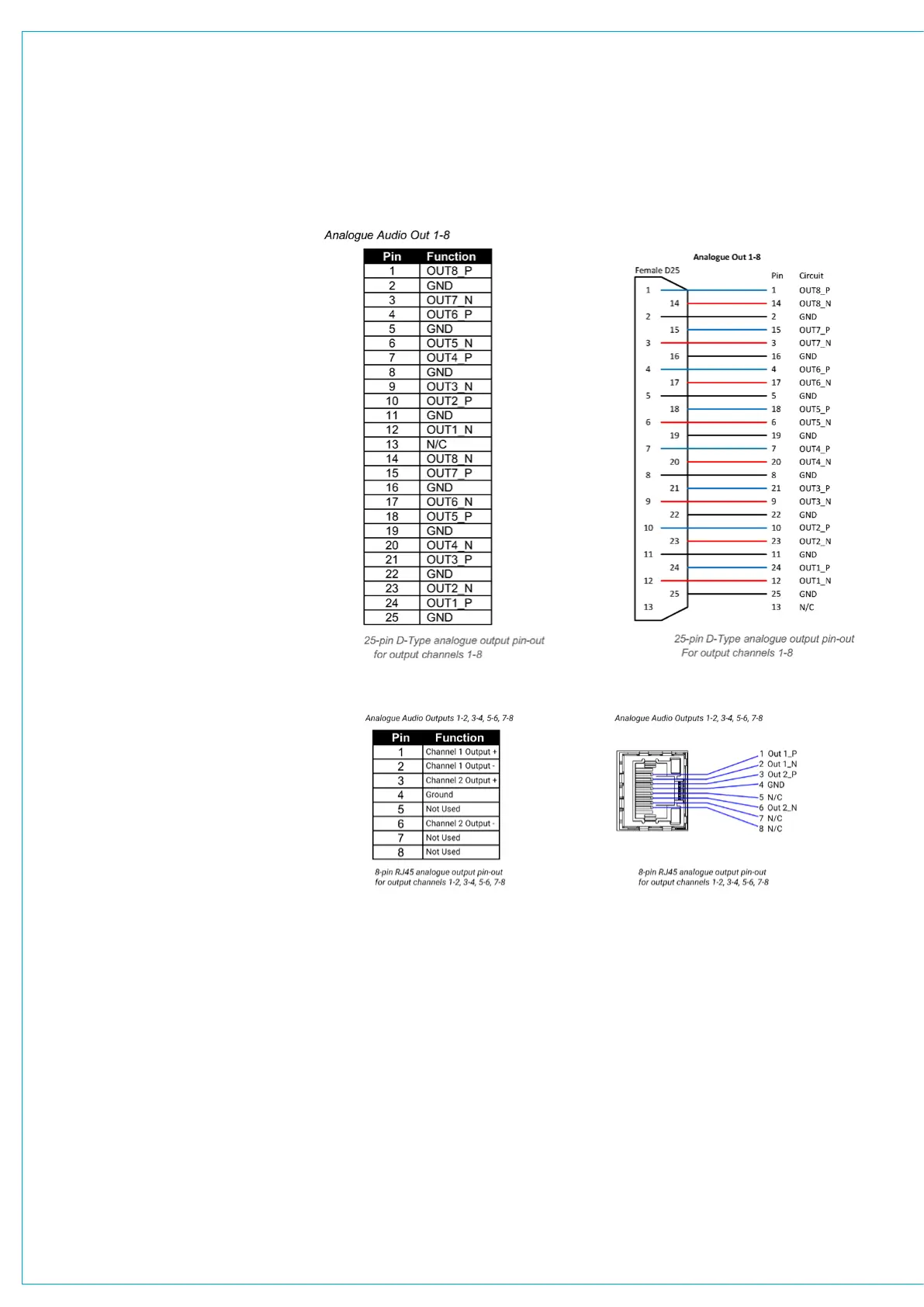

Analogue Audio Out 25 way ‘D’ type
Connector
This connector is used for 8 x balanced
Line outputs.
The pinout for analogue outputs 9-16
on the AD6502 Analogue I/O Box is
identical to the 1-8 pinout, i.e. 1=9, 2=10
etc..
This connector appears on the UR6500
Core Box, AD6501 Combo I/O Box
and the AD6502 Analogue I/O Box
and conforms to the AES59/Tascam®
standard.
Analogue Audio Out RJ45 type
Connector
This connector is used for 2 x balanced
Line outputs.
The pinout for analogue outputs 3-4, 5-6
and 7-8 is identical to the 1-2 pinout, i.e.
1=3, 2=4 etc.
This connector appears on the UR6500
Core Box, AD6501 Combo I/O Box and
the AD6502 Analogue I/O Box and
conforms to the StudioHub+ standard
pin-out.
All cabling using this RJ45 connector
type for audio must be CAT5e or CAT6
shielded twisted pair (STP).
